AFT09 Series

Catalog

AIRFAST RF POWER LDMOS TRANSISTOR, 920-960 MHZ, 56 W AVG., 28 V / REEL ROHS COMPLIANT: YES

Part	Gain	Frequency	Technology	Voltage - Rated	Voltage - Test	Power - Output	Current - Test	Package Name	Package / Case	Mounting Type	Configuration
NXP USA Inc. AFT09H310-03SR6	17.9 dB	920 MHz	LDMOS	70 VAC	28 V	56 W	680 mA	NI-1230S	NI-1230S	Chassis Mount
NXP USA Inc. AFT09MP055NR1	15.7 dB	870 MHz	LDMOS	40 V	12.5 V	1 W	550 mA	TO-270 WB-4	TO-270AB	Surface Mount

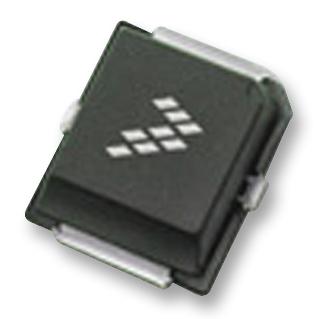

NXP USA Inc. AFT09MS015NT1	17.2 dB	870 MHz	LDMOS	40 V	12.5 V	16 W	100 mA	PLD-1.5W	PLD-1.5W	Surface Mount
NXP USA Inc. AFT09H310-04GSR6	17.9 dB	920 MHz	MOSFET (Metal Oxide)	70 VAC	28 V	56 W	680 mA	GULL NI-1230S-4	NI-1230S-4 GW	Chassis Mount	N-Channel
NXP USA Inc. AFT09MP055GNR1	15.7 dB	870 MHz	LDMOS	40 V	12.5 V	1 W	550 mA	TO-270 WB-4 Gull	TO-270BB	Surface Mount
NXP USA Inc. AFT09S200W02NR3	19.2 dB	960 MHz	LDMOS	70 VAC	28 V	56 W	1.4 A	OM-780-2	OM-780-2	Surface Mount
NXP USA Inc. AFT09S200W02SR3
NXP USA Inc. AFT09MS007NT1	15.2 dB	870 MHz	LDMOS	30 VAC	7.5 V	7.3 W	100 mA	PLD-1.5W	PLD-1.5W	Surface Mount
NXP USA Inc. AFT09S200W02GNR3	19.2 dB	960 MHz	LDMOS	70 VAC	28 V	56 W	1.4 A	OM-780-2 Gull	OM-780-2G	Chassis Mount
NXP USA Inc. AFT09MS031NR1	17.2 dB	870 MHz	LDMOS	40 V	13.6 V	31 W	500 mA	TO-270-2	TO-270AA	Surface Mount
