HEG.0K Series
Manufacturer: LEMO
Beta
⌘K
CONN RCPT FMALE 6POS GOLD SOLDER
| Part | Primary Material | Applications | Number of Positions | Shielding | Mounting Feature | Color | Fastening Type | Shell Material | Termination | Connector Type | Mounting Type | Ingress Protection | Orientation [custom] | Shell Size - Insert | Material Flammability Rating | Contact Material | Shell Finish | Insert Material | Operating Temperature [Min] | Operating Temperature [Max] | Features | Current Rating (Amps) | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO | Metal | Aviation Military | 6 | Shielded | Bulkhead - Front Side Nut | Silver | Push-Pull | Brass | Solder | Receptacle Female Sockets | Panel Mount Right Angle Through Hole | IP68 - Dust Tight Waterproof | G | 306 | UL94 V-0 | Bronze | Chrome | Polyetheretherketone (PEEK) | -20 ░C | 100 °C | Potted | 2.5 A | 1.5 Ám | 59 Áin | Gold |
LEMO | Metal | Aviation Military | 9 | Shielded | Bulkhead - Front Side Nut | Silver | Push-Pull | Brass | Receptacle Female Sockets | Panel Mount | IP68 - Dust Tight Waterproof | G | 309 | UL94 V-0 | Bronze | Chrome | Polyetheretherketone (PEEK) | -20 ░C | 100 °C | Potted | 2 A | 1.5 Ám | 59 Áin | Gold | |

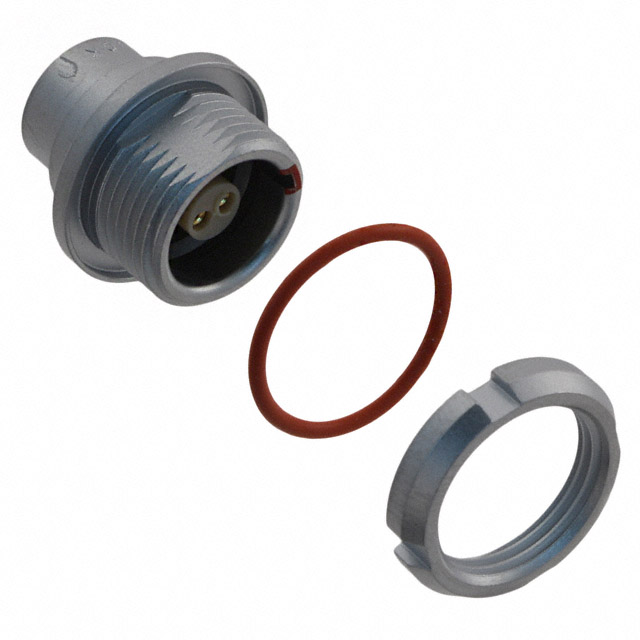

LEMO | Metal | Aviation Military | 2 | Shielded | Bulkhead - Front Side Nut | Silver | Push-Pull | Brass | Solder | Receptacle Female Sockets | Panel Mount Through Hole | IP68 - Dust Tight Waterproof | G | 302 | UL94 V-0 | Bronze | Chrome | Polyetheretherketone (PEEK) | -20 ░C | 100 °C | Potted | 10 A | 1.5 Ám | 59 Áin | Gold |
LEMO | Metal | Aviation Military | 9 | Shielded | Bulkhead - Front Side Nut | Silver | Push-Pull | Brass | Solder | Receptacle Female Sockets | Panel Mount Through Hole | IP68 - Dust Tight Waterproof | G | 309 | UL94 V-0 | Bronze | Chrome | Polyetheretherketone (PEEK) | -20 ░C | 100 °C | Potted | 2 A | 1.5 Ám | 59 Áin | Gold |
LEMO | Metal | Aviation Military | Shielded | Bulkhead - Front Side Nut | Silver | Push-Pull | Brass | Solder | Receptacle Female Sockets | Panel Mount Right Angle Through Hole | IP68 - Dust Tight Waterproof | G | 303 | UL94 V-0 | Bronze | Chrome | Polyetheretherketone (PEEK) | -20 ░C | 100 °C | Potted | 8 A | 1.5 Ám | 59 Áin | Gold | |
LEMO | Metal | Aviation Military | 2 | Shielded | Bulkhead - Front Side Nut | Silver | Push-Pull | Brass | Solder | Receptacle Female Sockets | Panel Mount Right Angle Through Hole | IP68 - Dust Tight Waterproof | G | 302 | UL94 V-0 | Bronze | Chrome | Polyetheretherketone (PEEK) | -20 ░C | 100 °C | Potted | 6 A | 1.5 Ám | 59 Áin | Gold |
 LEMO | Metal | Aviation Military | 2 | Shielded | Bulkhead - Front Side Nut | Silver | Push-Pull | Brass | Receptacle Female Sockets | Panel Mount | IP68 - Dust Tight Waterproof | G | 302 | UL94 V-0 | Bronze | Chrome | Polyetheretherketone (PEEK) | -20 ░C | 100 °C | Potted | 10 A | 1.5 Ám | 59 Áin | Gold | |
LEMO | Metal | Aviation Military | 9 | Shielded | Bulkhead - Front Side Nut | Black | Push-Pull | Brass | Receptacle Female Sockets | Panel Mount | IP68 - Dust Tight Waterproof | G | 309 | UL94 V-0 | Bronze | Polyetheretherketone (PEEK) | -20 ░C | 100 °C | Potted | 2 A | 1.5 Ám | 59 Áin | Gold |
