GBC15S Series

Catalog

CONN HEADER SMD 15POS 2.54MM

Part	Contact Material	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Termination	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Insulation Height	Insulation Height	Number of Positions	Style	Material Flammability Rating	Contact Length - Mating [x]	Contact Length - Mating	Shrouding	Insulation Color	Fastening Type	Contact Finish - Post	Insulation Material	Contact Shape	Contact Type	Current Rating (Amps)	Contact Length - Mating [x]
Sullins Connector Solutions GBC15SABN-M30	Phosphor Bronze	Breakaway Header	2.54 µm	100 µin	Surface Mount	10 çin	0.25 çm	All	Solder	0.1 in	2.54 mm	Gold	-65 ░C	150 °C	1	0.1 in	2.54 mm	15	Board to Board Cable	UL94 V-0	0.23 in	5.84 mm	Unshrouded	Black	Push-Pull	Tin	Nylon 9T Polyamide (PA9T)	Square	Male Pin	3 A

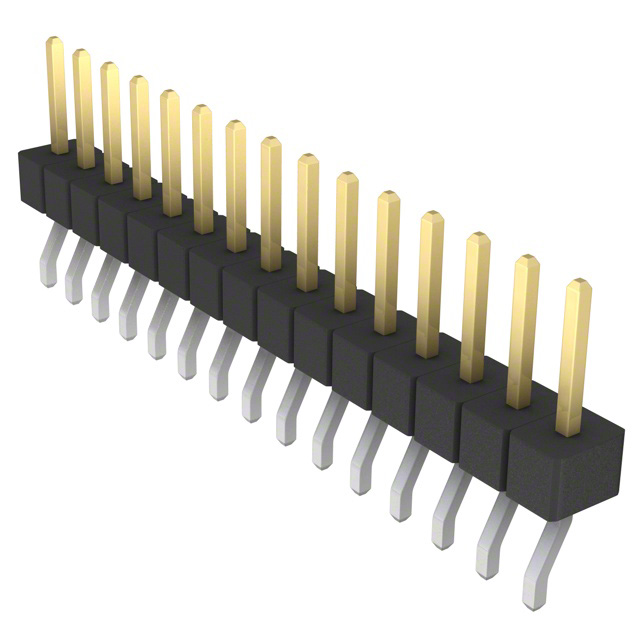

Sullins Connector Solutions GBC15SBSN-M89	Phosphor Bronze	Breakaway Header	2.54 µm	100 µin	Surface Mount Right Angle	10 çin	0.25 çm	All	Solder	0.1 in	2.54 mm	Gold	-65 ░C	150 °C	1	0.14 in	3.56 mm	15	Board to Board Cable	UL94 V-0	0.23 in	5.84 mm	Unshrouded	Black	Push-Pull	Tin	Nylon 9T Polyamide (PA9T)	Square	Male Pin	3 A

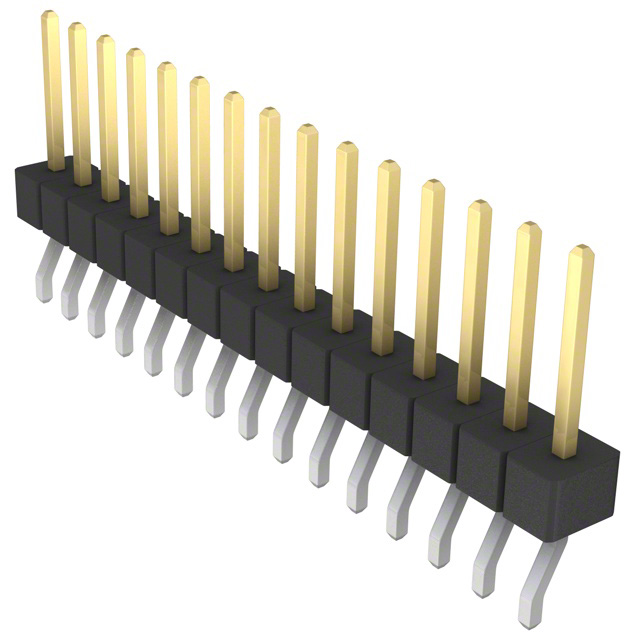

Sullins Connector Solutions GBC15SGSN-M89	Phosphor Bronze	Breakaway Header	2.54 µm	100 µin	Surface Mount Right Angle	10 çin	0.25 çm	All	Solder	0.1 in	2.54 mm	Gold	-65 ░C	150 °C	1	0.14 in	3.56 mm	15	Board to Board Cable	UL94 V-0	0.318 "		Unshrouded	Black	Push-Pull	Tin	Nylon 9T Polyamide (PA9T)	Square	Male Pin	3 A	8.08 mm
