109BF12 Series

Catalog

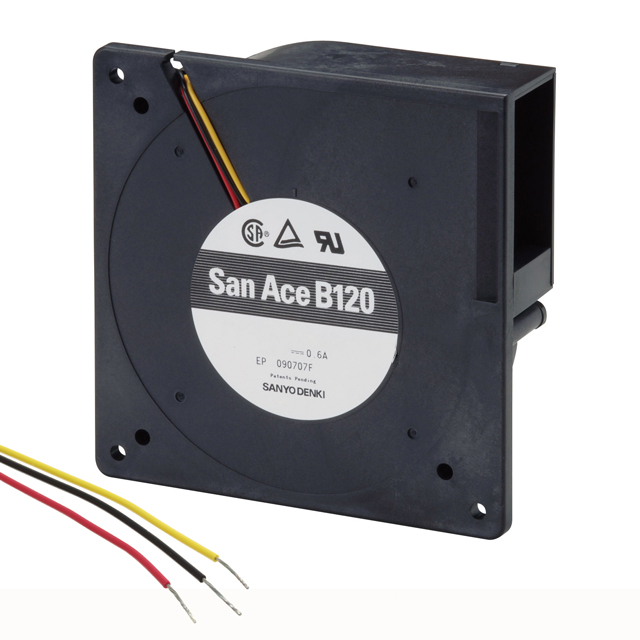

FAN BLOWER 120X32MM 12VDC WIRE

Part	Voltage Range [Min]	Voltage Range [Max]	Lifetime @ Temp.	Material - Blade	Current Rating (Amps)	Material - Frame	Static Pressure	Static Pressure	Power (Watts)	Approval Agency	Weight	Weight	Noise	Voltage - Rated	Fan Type	Air Flow	Air Flow	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Width [y]	RPM	Termination	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Bearing Type	Features
Sanyo Denki America Inc. 109BF12MA2	10.2 VDC	13.8 VDC	40000 Hrs	Plastic	320 mA	Plastic	110 Pa	0.441 in H2O	3.84 W	CSA TUV UL	0.604 lb	273.97 g	44 dB(A)	12 VDC	Blower	0.602 m³/min	21.5 CFM	Square/Rounded	120 mm	120 mm	32 mm	1900 RPM	2 Wire Leads	60 °C	60 °C	-4 °F	-20 ░C	Ball
Sanyo Denki America Inc. 109BF12HC2	10.2 VDC	13.8 VDC	40000 Hrs	Plastic	600 mA	Plastic	175.4 Pa	0.704 in H2O	7.2 W	CSA TUV UL	0.604 lb	273.97 g	52 dB	12 VDC	Blower	0.77 m³/min	27.5 CFM	Square/Rounded	120 mm	120 mm	32 mm	2400 RPM	3 Wire Leads	60 °C	60 °C	-4 °F	-20 ░C	Ball	Speed Sensor (Tach)
Sanyo Denki America Inc. 109BF12HA2	10.2 VDC	13.8 VDC	40000 Hrs	Plastic	600 mA	Plastic	175.4 Pa	0.704 in H2O	7.2 W	CSA TUV UL	0.604 lb	273.97 g	52 dB	12 VDC	Blower	0.77 m³/min	27.5 CFM	Square/Rounded	120 mm	120 mm	32 mm	2400 RPM	2 Wire Leads	60 °C	60 °C	-4 °F	-20 ░C	Ball
Sanyo Denki America Inc. 109BF12MC2	10.2 VDC	13.8 VDC	40000 Hrs	Plastic	320 mA	Plastic	110 Pa	0.441 in H2O	3.84 W	CSA TUV UL	0.604 lb	273.97 g	44 dB(A)	12 VDC	Blower	0.602 m³/min	21.5 CFM	Square/Rounded	120 mm	120 mm	32 mm	1900 RPM	3 Wire Leads	60 °C	60 °C	-4 °F	-20 ░C	Ball	Speed Sensor (Tach)
