0448-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

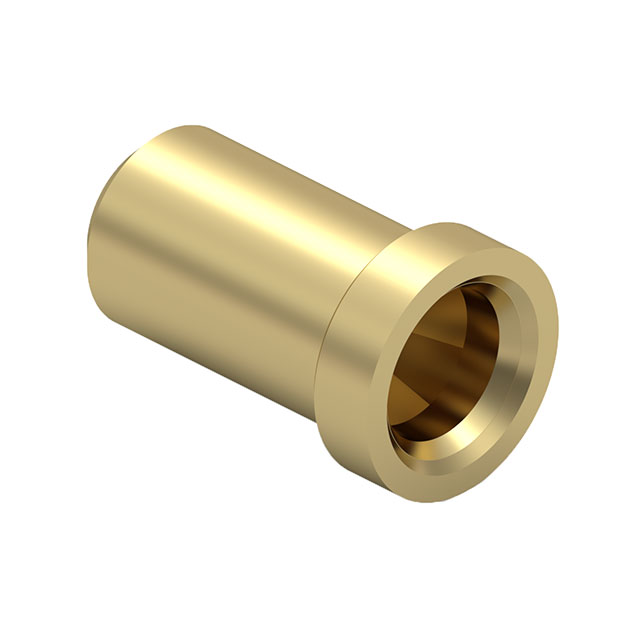

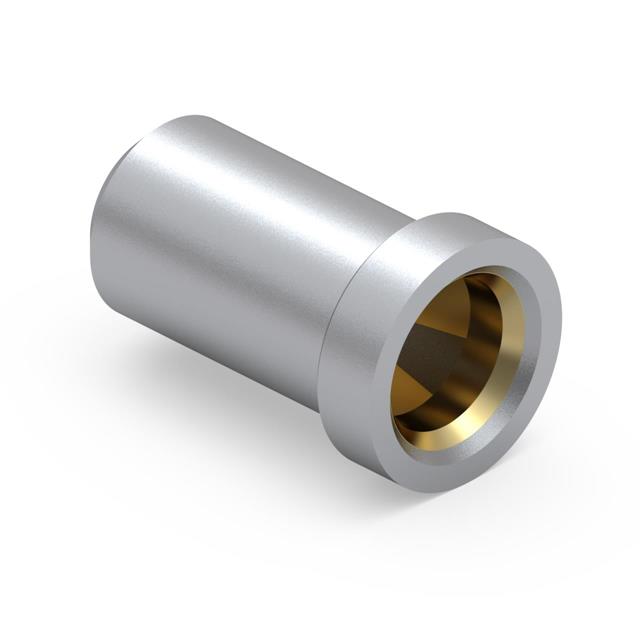

STD. CONNECTOR JACK RECEPTACLE
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Length - Overall [x] | Length - Overall [x] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Min] | Socket Depth | Socket Depth | Flange Diameter [diameter] | Flange Diameter [diameter] | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Contact Material | Termination | Tail Type | Mounting Hole Diameter | Mounting Hole Diameter | Contact Finish | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 30 Áin | 0.76 Ám | 3.56 mm | 0.14 in | 0.043 in | 1.09 mm | 0.94 mm | 0.037 in | 2.79 mm | 0.11 in | 2.16 mm | 0.085 " | 0.059 in | 1.51 mm | Beryllium Copper | Solder | No Tail | 0.067 in | 1.7 mm | Gold | ||
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 10 Áin | 0.25 Ám | 3.56 mm | 0.14 in | 0.043 in | 1.09 mm | 0.94 mm | 0.037 in | 2.79 mm | 0.11 in | 2.16 mm | 0.085 " | 0.059 in | 1.51 mm | Beryllium Copper | Solder | No Tail | Gold | 1.8 mm | 0.071 in |
