OSTOQ14 Series

Catalog

TERM BLOCK HDR 14POS 3.81MM

Part	Contact Tail Length	Contact Tail Length	Housing Material	Insulation Height [z]	Insulation Height [z]	Contact Material	Mounting Type	Material Flammability Rating	Termination Style	Header Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Number of Levels	Features	Voltage - UL	Number of Positions	Type	Positions Per Level	Contact Mating Finish	Pitch	Pitch
On Shore Technology Inc. OSTOQ143551	0.138 in	3.5 mm	Thermoplastic	3.5 mm	0.138 "	Brass	Solder Through Hole	UL94 V-0	Solder	90° Right Angle	-30 ░C	105 ░C	1	Mating Flange	300 V	14	Header Male Pins Shrouded (4 Side)	14	Tin	3.81 mm	0.15 in
On Shore Technology Inc. OSTOQ145451	0.157 in	4 mm	Thermoplastic	4 mm	0.157 in		Solder Through Hole		Solder	90° Right Angle	-40 C	115 °C	1		300 V	14	Header Male Pins Shrouded (4 Side)	14	Tin	5.08 mm	0.2 in
On Shore Technology Inc. OSTOQ140151	0.157 in	4 mm	Thermoplastic	4 mm	0.157 in	Brass	Solder Through Hole		Solder	90° Right Angle	-30 ░C	105 ░C	1		300 V	14	Header Male Pins Shrouded (4 Side)	14	Tin	7.62 mm	0.3 in
On Shore Technology Inc. OSTOQ140051	0.157 in	4 mm	Thermoplastic	4 mm	0.157 in	Brass	Solder Through Hole		Solder	90° Right Angle	-30 ░C	105 ░C	1		300 V	14	Header Male Pins Shrouded (2 Side)	14	Tin	7.62 mm	0.3 in
On Shore Technology Inc. OSTOQ14A551	0.157 in	4 mm	Thermoplastic	4 mm	0.157 in	Brass	Solder Through Hole	UL94 V-0	Solder	90° Right Angle	-30 ░C	105 ░C	1	Mating Flange	300 V	14	Header Male Pins Shrouded (4 Side)	14	Tin	7.5 mm	0.295 in
On Shore Technology Inc. OSTOQ14B150	0.138 in	3.5 mm	Thermoplastic	3.5 mm	0.138 "		Through Hole		Solder	Vertical	-40 C	115 °C	1		125 V	14	Header Male Pins Shrouded (4 Side)	14	Tin	2.5 mm	0.098 in
On Shore Technology Inc. OSTOQ143251	0.138 in	3.5 mm	Thermoplastic	3.5 mm	0.138 "	Brass	Solder Through Hole		Solder	90° Right Angle	-30 ░C	105 ░C	1		300 V	14	Header Male Pins Shrouded (4 Side)	14	Tin	3.81 mm	0.15 in
On Shore Technology Inc. OSTOQ145550	0.157 in	4 mm	Thermoplastic	4 mm	0.157 in	Brass	Solder Through Hole	UL94 V-0	Solder	Vertical	-30 ░C	105 ░C	1	Mating Flange	300 V	14	Header Male Pins Shrouded (4 Side)	14	Tin	5.08 mm	0.2 in
On Shore Technology Inc. OSTOQ145351	0.157 in	4 mm	Thermoplastic	4 mm	0.157 in	Brass	Solder Through Hole		Solder	90° Right Angle	-30 ░C	105 ░C	1		300 V	14	Header Male Pins Shrouded (2 Side)	14	Tin	5.08 mm	0.2 in

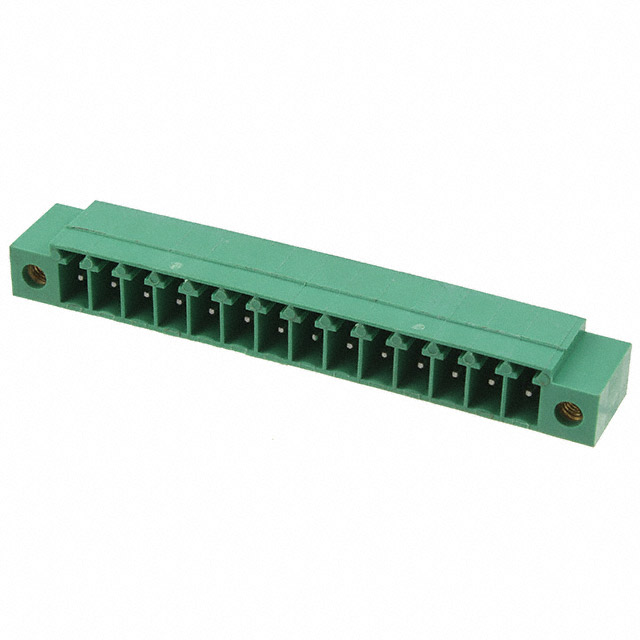

On Shore Technology Inc. OSTOQ141551	0.138 in	3.5 mm	Thermoplastic	3.5 mm	0.138 "	Brass	Solder Through Hole	UL94 V-0	Solder	90° Right Angle	-30 ░C	105 ░C	1	Mating Flange	300 V	14	Header Male Pins Shrouded (4 Side)	14	Tin	3.5 mm	0.138 "
