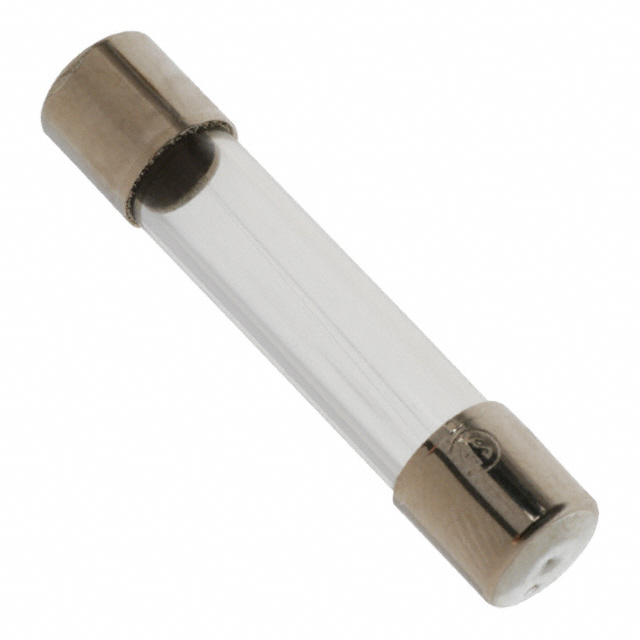

FUSE 250V FA 3AG PB-FREE .500A
Description
AI
The 3AG Fast-Acting Fuse solves a broad range of application requirements while offering reliable performance and cost-effective circuit protection.
Beta
⌘K
FUSE 250V FA 3AG PB-FREE .500A
FUSE 250V FA 3AG PB-FREE .500A
| Part | DC Cold Resistance | Breaking Capacity @ Rated Voltage | Melting I²t | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Approval Agency | Response Time | Fuse Type | Package / Case [y] | Package / Case [x] | Package / Case | Mounting Type | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - AC | Melting I˛t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 0.498 Ohms | 35 A | 0.483 | 31.75 mm | 1.25 in | 6.35 mm | 0.25 " | CE CSA UL | Fast Blow | Cartridge Glass | 0.25 in | 3AB 3AG | Requires Holder | 0.5 A | -55 C | 125 °C | 250 V | ||
 LITTELFUSE | 0.498 Ohms | 35 A | 0.483 | 31.75 mm | 1.25 in | 6.35 mm | 0.25 " | CE CSA UL | Fast Blow | Cartridge Glass | 0.25 in | 3AB 3AG | Requires Holder | 0.5 A | -55 C | 125 °C | 250 V | 0.483 |
