R22256 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

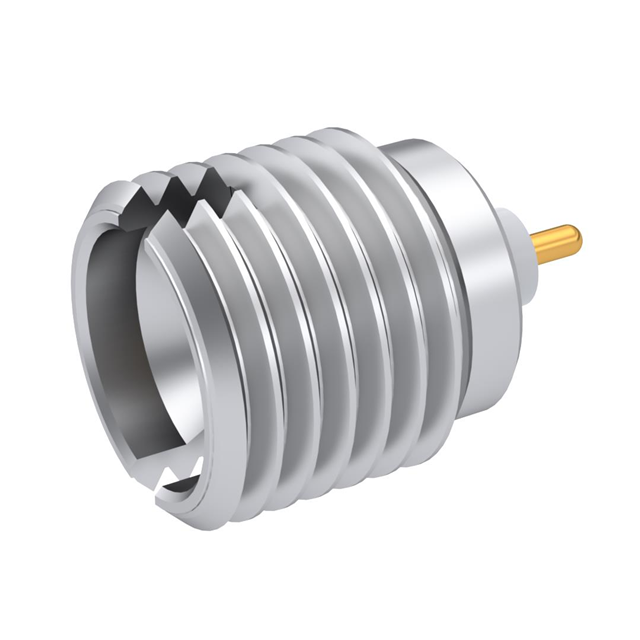

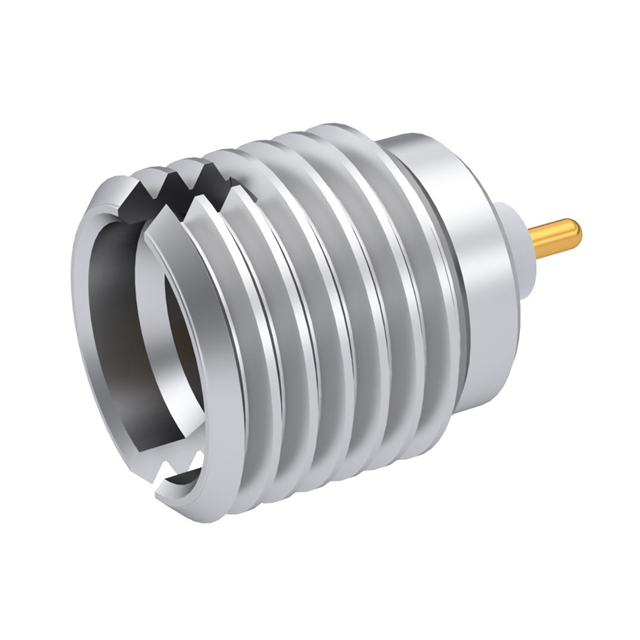

SMP M STR FD THD PIN C100
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Dielectric Material | Body Material | Center Contact Plating | Connector Type | Features | Number of Ports | Housing Color | Impedance | Shield Termination | Mounting Type | Frequency - Max [Max] | Contact Termination | Fastening Type | Center Contact Material | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | ||||||||||||||||||
Radiall USA, Inc. | -65 ░C | 165 °C | 335 V | Polytetrafluoroethylene (PTFE) | Stainless Steel | Gold | Receptacle Male Pin | Extended Insulation Full Detent | 1 | Silver | 50 Ohms | Solder | Through Hole | 40 GHz | Solder | Snap-On | Beryllium Copper | |
Radiall USA, Inc. | -65 ░C | 165 °C | 335 V | Polytetrafluoroethylene (PTFE) | Stainless Steel | Gold | Receptacle Male Pin | Extended Insulation Smooth Bore | 1 | Silver | 50 Ohms | Solder | Through Hole | 40 GHz | Solder | Snap-On | Beryllium Copper | 1000 |
Radiall USA, Inc. | ||||||||||||||||||
 Radiall USA, Inc. | -65 ░C | 165 °C | 335 V | Polytetrafluoroethylene (PTFE) | Stainless Steel | Gold | Receptacle Male Pin | Extended Insulation Smooth Bore | 1 | 50 Ohms | Solder | Through Hole | 40 GHz | Solder | Snap-On | Beryllium Copper | 1000 | |
Radiall USA, Inc. | -65 ░C | 165 °C | 335 V | Polytetrafluoroethylene (PTFE) | Stainless Steel | Gold | Receptacle Male Pin | Extended Insulation Limited Detent | 1 | Silver | 50 Ohms | Solder | Through Hole | 12 GHz | Solder | Snap-On | Beryllium Copper | 500 |
 Radiall USA, Inc. | -65 ░C | 165 °C | 335 V | Polytetrafluoroethylene (PTFE) | Stainless Steel | Gold | Receptacle Male Pin | Extended Insulation Full Detent | 1 | 50 Ohms | Solder | Through Hole | 12 GHz | Solder | Snap-On | Beryllium Copper | ||
Radiall USA, Inc. | -65 ░C | 165 °C | 350 VDC | Polytetrafluoroethylene (PTFE) | Stainless Steel | Gold | Receptacle Male Pin | Extended Insulation Smooth Bore | 1 | Silver | 50 Ohms | Solder | Through Hole | 40 GHz | Solder | Snap-On | Beryllium Copper | 1000 |
 Radiall USA, Inc. | -65 ░C | 165 °C | 250 V | Polytetrafluoroethylene (PTFE) | Stainless Steel | Gold | Receptacle Male Pin | Extended Insulation Limited Detent | 1 | Silver | 50 Ohms | Solder | Through Hole | 12 GHz | Solder | Snap-On | Beryllium Copper | |
Radiall USA, Inc. | -65 ░C | 165 °C | 350 VDC | Polyetheretherketone (PEEK) | Stainless Steel | Gold | Receptacle Male Pin | Extended Insulation | 1 | Silver | 50 Ohms | Solder | Free Hanging (In-Line) | 40 GHz | Solder | Snap-On | Beryllium Copper | 1000 |
