S10B-XAS Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

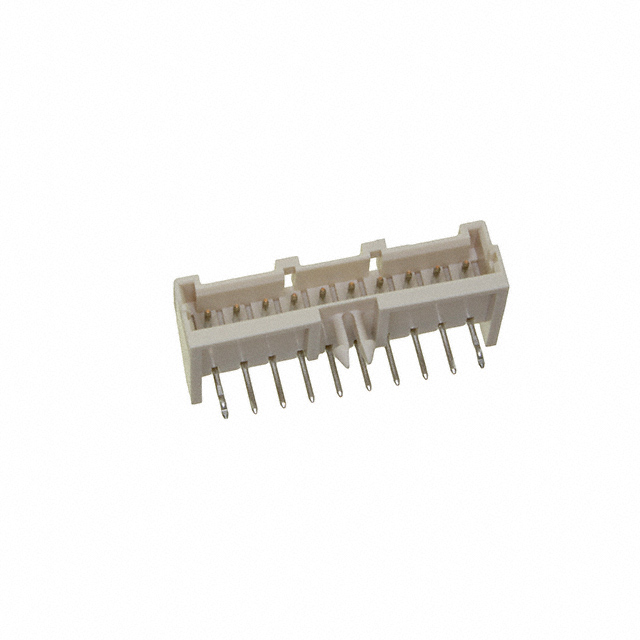

CONN HEADER R/A 10POS 2.5MM
| Part | Shrouding | Style | Number of Rows | Mounting Type | Insulation Height [z] | Insulation Height | Current Rating (Amps) | Insulation Material | Contact Shape | Contact Material | Number of Positions | Connector Type | Contact Finish - Post | Material Flammability Rating | Contact Length - Post [x] | Contact Length - Post [x] | Pitch - Mating | Pitch - Mating | Voltage Rating | Insulation Color | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions Loaded | Fastening Type | Termination | Contact Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Shrouded - 4 Wall | Board to Cable/Wire | 1 | Right Angle Through Hole | 0.299 " | 7.6 mm | 3 A | Glass Filled Nylon 6/6 Polyamide (PA66) | Circular | Copper Alloy | 10 | Header | Tin | UL94 V-0 | 0.126 " | 3.2 mm | 2.5 mm | 0.098 in | 250 V | Natural | 85 °C | -25 °C | All | Locking Ramp | Solder | Male Pin | |
 JST Sales America Inc. | Shrouded - 4 Wall | Board to Cable/Wire | 1 | Right Angle Through Hole | 0.299 " | 7.6 mm | 3 A | Glass Filled Nylon 6/6 Polyamide (PA66) | Circular | Copper Alloy | 10 | Header | Tin | UL94 V-0 | 0.126 " | 3.2 mm | 2.5 mm | 0.098 in | 250 V | Natural | 85 °C | -25 °C | All | Locking Ramp | Press-Fit Solder | Male Pin | Board Lock |
