ALT22A Series

Manufacturer: KEMET

Catalog

CAP ALUM 22000UF 20% 40V SNAP TH

Part	Lead Spacing	Lead Spacing	Capacitance	Operating Temperature [Max]	Operating Temperature [Min]	Polarization	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Applications	Tolerance	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Lifetime @ Temp.	Size / Dimension
KEMET ALT22A223DD040	0.394 in	10 mm	22000 µF	85 °C	-40 C	Polar	1.575 in	40 mm	40 V	General Purpose	20 %	Through Hole	57 mm	2.244 "	Radial Can - Snap-In
KEMET ALT22A472DD100	0.394 in	10 mm	4700 µF	85 °C	-40 C	Polar	1.575 in	40 mm	100 V	General Purpose	20 %	Through Hole	57 mm	2.244 "	Radial Can - Snap-In
KEMET ALT22A103CB040	0.394 in	10 mm	10000 µF	85 °C	-40 C	Polar	1.378 "	35 mm	40 V	General Purpose	20 %	Through Hole	47 mm	1.85 in	Radial Can - Snap-In	18000 Hrs
KEMET ALT22A471DD385	0.394 in	10 mm	470 µF	85 °C	-40 C	Polar	1.575 in	40 mm	385 V	General Purpose	20 %	Through Hole	57 mm	2.244 "	Radial Can - Snap-In
KEMET ALT22A472AB040	0.394 in	10 mm	4700 µF	85 °C	-40 C	Polar	0.984 "	25 mm	40 V	General Purpose	20 %	Through Hole	47 mm	1.85 in	Radial Can - Snap-In	12000 Hrs
KEMET ALT22A472BB063	0.394 in	10 mm	4700 µF	85 °C	-40 C	Polar	1.181 "		63 V	General Purpose	20 %	Through Hole	47 mm	1.85 in	Radial Can - Snap-In	15000 Hrs	30 mm

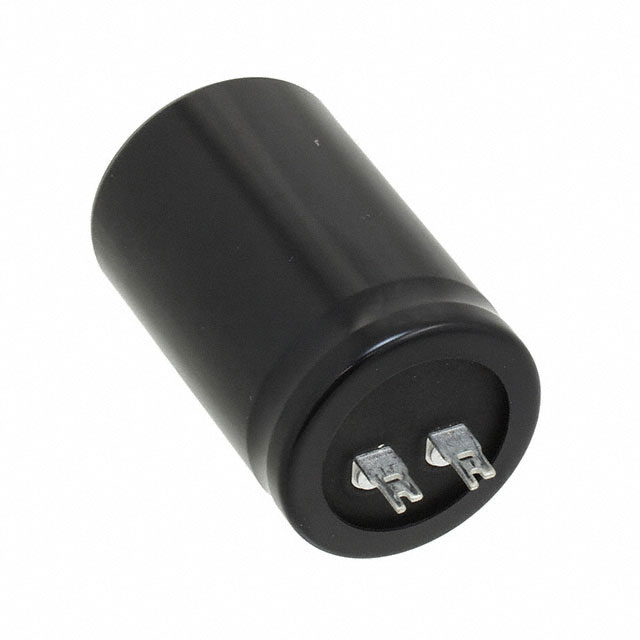

KEMET ALT22A103CD063	0.394 in	10 mm	10000 µF	85 °C	-40 C	Polar	1.378 "	35 mm	63 V	General Purpose	20 %	Chassis Mount	57 mm	2.244 "	Radial Can - Snap-In	18000 Hrs
