AOW14 Series

Catalog

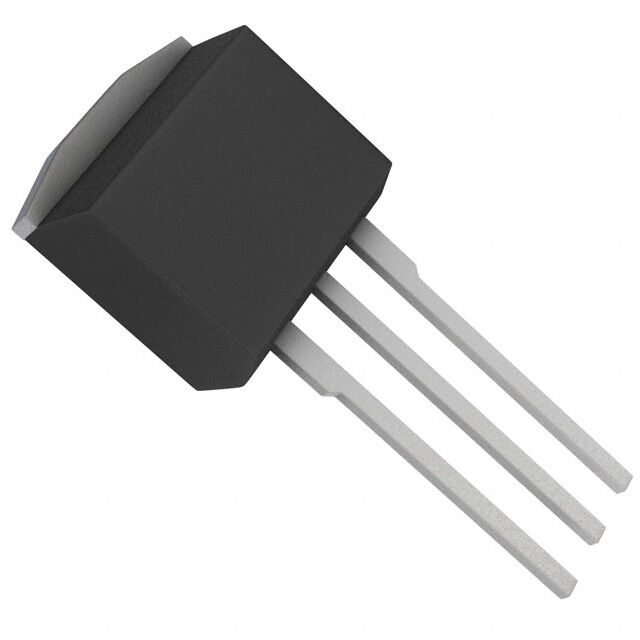

MOSFET N-CH 500V 14A TO262

Part	Package / Case	Current - Continuous Drain (Id) @ 25°C	Gate Charge (Qg) (Max) @ Vgs	Input Capacitance (Ciss) (Max) @ Vds	Technology	Vgs (Max)	Drive Voltage (Max Rds On, Min Rds On)	Operating Temperature [Max]	Operating Temperature [Min]	Vgs(th) (Max) @ Id	Power Dissipation (Max) [Max]	Mounting Type	Supplier Device Package	FET Type	Drain to Source Voltage (Vdss)	Rds On (Max) @ Id, Vgs [Max]
Alpha & Omega Semiconductor Inc. AOW14N50	I2PAK TO-262-3 Long Leads TO-262AA	14 A	51 nC	2297 pF	MOSFET (Metal Oxide)	30 V	10 V	150 °C	-55 °C	4.5 V	278 W	Through Hole	TO-262	N-Channel	500 V	380 mOhm
