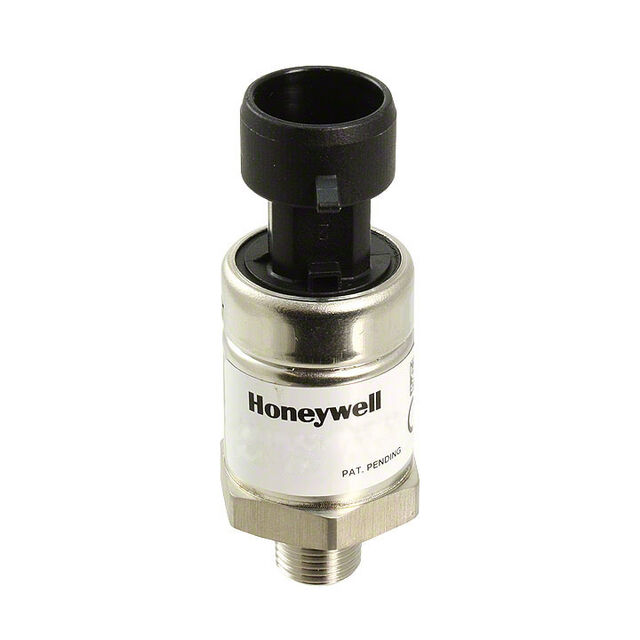

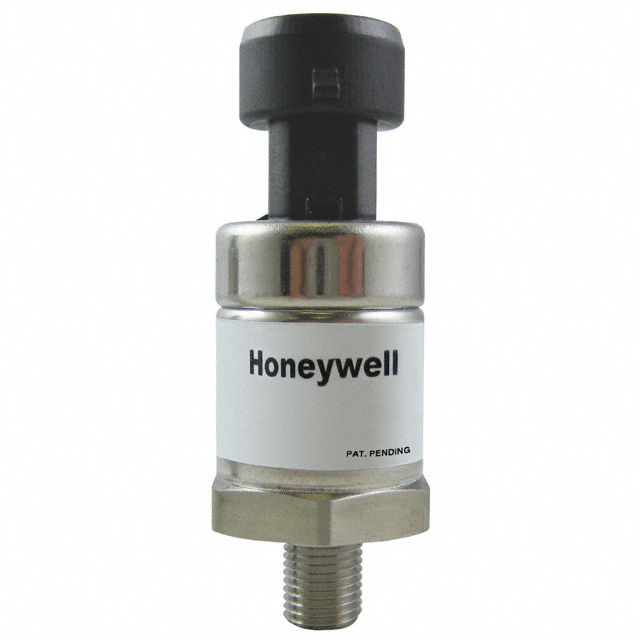

PX2AN2 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
HEAVY DUTY PRESSURE TRANSDUCER
| Part | Output [Min] | Output [Max] | Port Size | Port Size | Port Size | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Port Style | Applications | Features | Voltage - Supply [Min] | Voltage - Supply [Max] | Pressure Type | Maximum Pressure [Max] | Maximum Pressure [Max] | Operating Pressure | Operating Pressure | Output Type | Accuracy | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Honeywell Sensing and Productivity Solutions | |||||||||||||||||||||
 Honeywell Sensing and Productivity Solutions | 0.5 V | 4.5 V | 0.125 " | 3.18 mm | Male | Connector | 125 °C | -40 °C | Threaded | Industrial Automation | Temperature Compensated | 4.75 V | 5.25 V | Sealed Gauge | 1000 PSI | 6894.76 kPa | 300 PSI | 2068.43 kPa | Analog Voltage | 0.25 % | Cylinder |
Honeywell Sensing and Productivity Solutions | 0.5 V | 4.5 V | 0.125 " | 3.18 mm | Male | Connector | 125 °C | -40 °C | Threaded | Industrial Automation | Temperature Compensated | 4.75 V | 5.25 V | 250 PSI | 1723.69 kPa | 50 PSI | 344.74 kPa | Analog Voltage | 0.25 % | Cylinder | |
Honeywell Sensing and Productivity Solutions | 0 mV | 5 V | 3.18 mm | 0.125 " | Female | Connector | 125 °C | -40 °C | Industrial Automation | Temperature Compensated | 4.75 V | 5.25 V | 449.62 PSI | 3100 kPa | 87.02 PSI | 600 kPa | Analog Voltage | 0.25 % | Cylinder | ||
 Honeywell Sensing and Productivity Solutions | 0.5 V | 4.5 V | 0.125 " | 3.18 mm | Male | Connector | 125 °C | -40 °C | Threaded | Industrial Automation | Temperature Compensated | 4.75 V | 5.25 V | 450 PSI | 3102.64 kPa | 150 PSI | 1034.21 kPa | Analog Voltage | 0.25 % | Cylinder | |
Honeywell Sensing and Productivity Solutions | 0.5 V | 4.5 V | 0.125 " | 3.18 mm | Male | Connector | 125 °C | -40 °C | Threaded | Industrial Automation | Temperature Compensated | 4.75 V | 5.25 V | 150 PSI | 1034.21 kPa | 30 PSI | 206.84 kPa | Analog Voltage | 0.25 % | Cylinder | |
Honeywell Sensing and Productivity Solutions | 0.5 V | 4.5 V | 0.125 " | 3.18 mm | Male | Connector | 125 °C | -40 °C | Threaded | Industrial Automation | Temperature Compensated | 4.75 V | 5.25 V | Sealed Gauge | 750 PSI | 5171.07 kPa | 250 PSI | 1723.69 kPa | Analog Voltage | 0.25 % | Cylinder |
Honeywell Sensing and Productivity Solutions | 4 mA | 20 mA | 0.125 " | 3.18 mm | Male | Connector | 125 °C | -40 °C | Threaded | Industrial Automation | Temperature Compensated | 8 V | 30 VDC | Sealed Gauge | 450 PSI | 3102.64 kPa | 100 PSI | 689.48 kPa | Analog Current | 0.25 % | Cylinder |
Honeywell Sensing and Productivity Solutions | |||||||||||||||||||||
 Honeywell Sensing and Productivity Solutions | 4 mA | 20 mA | 0.125 " | 3.18 mm | Male | Connector | 125 °C | -40 °C | Threaded | Industrial Automation | Temperature Compensated | 8 V | 30 VDC | Sealed Gauge | 450 PSI | 3102.64 kPa | 150 PSI | 1034.21 kPa | Analog Current | 0.25 % | Cylinder |
