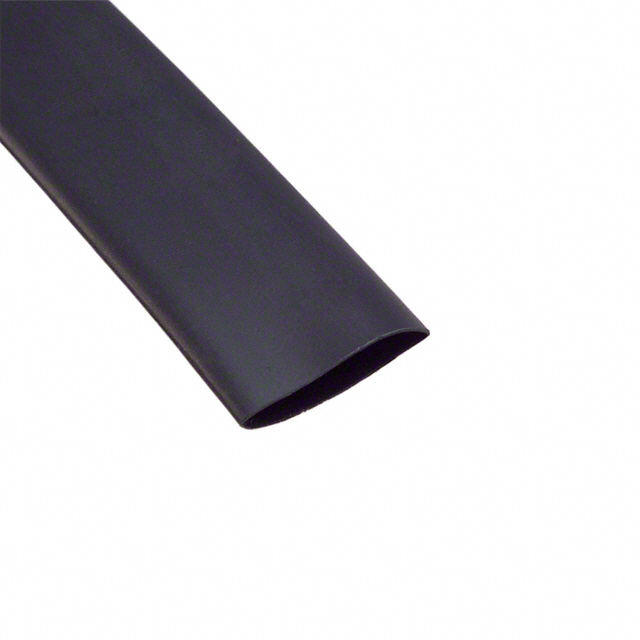

F221V3/8 Series

Catalog

HEATSHRINK 3/8" X 0.5' BLACK

Part	Shelf Life Start	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Length	Length	Length	Shrink Temperature	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Color	Recovered Wall Thickness	Recovered Wall Thickness	Features	Operating Temperature [Min]	Operating Temperature [Max]	Shelf Life	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Type	Material	Length [x]	Length [x]
ALPHA WIRE F221V3/8 BK065	Date of Manufacture	0.375 in	9.53 mm	152.4 mm	0.5 '	6 "	90 °C	0.187 in	4.75 mm	Black	0.025 in	0.64 mm	Flame Retardant Fluid Resistant Heat Resistant UV Resistant	-55 C	135 °C	144 Months	1	2	Tubing Flexible	Polyolefin (PO) Irradiated
ALPHA WIRE F221V3/8 WH103	Date of Manufacture	0.375 in	9.53 mm				90 °C	0.187 in	4.75 mm	White	0.025 in	0.64 mm	Flame Retardant Fluid Resistant Heat Resistant	-55 C	135 °C	144 Months	1	2	Tubing Flexible	Polyolefin (PO) Irradiated	4 ft	1.22 m
ALPHA WIRE F221V3/8 BL103	Date of Manufacture	0.375 in	9.53 mm				90 °C	0.187 in	4.75 mm	Blue	0.025 in	0.64 mm	Flame Retardant Fluid Resistant Heat Resistant	-55 C	135 °C	144 Months	1	2	Tubing Flexible	Polyolefin (PO) Irradiated	4 ft	1.22 m
ALPHA WIRE F221V3/8 BK100	Date of Manufacture	0.375 in	9.53 mm				90 °C	0.187 in	4.75 mm	Black	0.025 in	0.64 mm	Flame Retardant Fluid Resistant Heat Resistant UV Resistant	-55 C	135 °C	144 Months	1	2	Tubing Flexible	Polyolefin (PO) Irradiated	4 ft	1.22 m
ALPHA WIRE F221V3/8 BK004	Date of Manufacture	0.375 in	9.53 mm	7.6 m 15.2 m 61 m 152.4 mm	0.5 ' 25 ft 50 ft 200 ft	6 "	90 °C	0.187 in	4.75 mm	Black	0.025 in	0.64 mm	Flame Retardant Fluid Resistant Heat Resistant UV Resistant	-55 C	135 °C	144 Months	1	2	Tubing Flexible	Polyolefin (PO) Irradiated
ALPHA WIRE F221V3/8 WH004	Date of Manufacture	0.375 in	9.53 mm	61 m	200 ft		90 °C	0.187 in	4.75 mm	White	0.025 in	0.64 mm	Flame Retardant Fluid Resistant Heat Resistant	-55 C	135 °C	144 Months	1	2	Tubing Flexible	Polyolefin (PO) Irradiated
ALPHA WIRE F221V3/8 BK103	Date of Manufacture	0.375 in	9.53 mm				90 °C	0.187 in	4.75 mm	Black	0.025 in	0.64 mm	Flame Retardant Fluid Resistant Heat Resistant UV Resistant	-55 C	135 °C	144 Months	1	2	Tubing Flexible	Polyolefin (PO) Irradiated	4 ft	1.22 m
