500r Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH: SLIDE; POS: 2; DPDT; 0.02A/20VAC; 0.02A/20VDC; ON-ON; THT
| Part | Switch Travel | Operating Force | Mechanical Life | Electrical Life | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Features | Voltage Rating - AC | Actuator Length [x] | Mounting Type | Current Rating (Amps) | Switch Function | Contact Timing | Voltage Rating - DC | Circuit | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

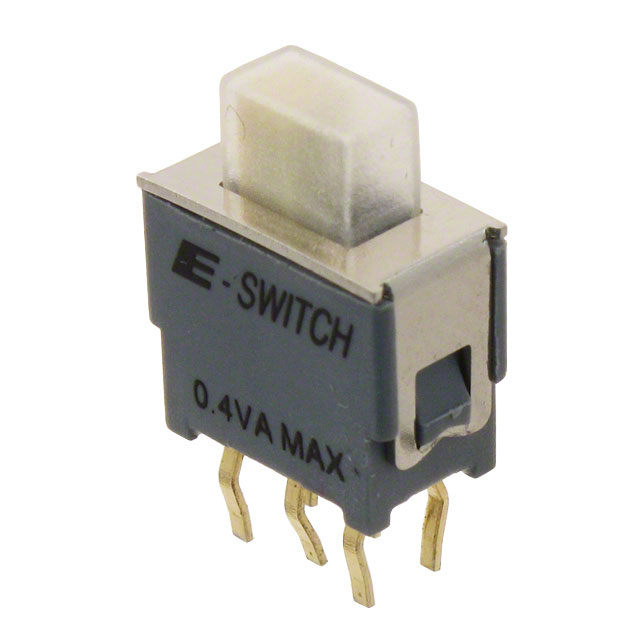

 E-Switch | 1.9 mm | 0.2 kgf | 40000 Cycles | 80 °C | -20 ░C | PC Pin | Epoxy Sealed Terminals IP57 | 20 V | 2.8 mm | Through Hole | 0.4 VA | On-On | Not Specified | 20 V | DPDT | Standard | |

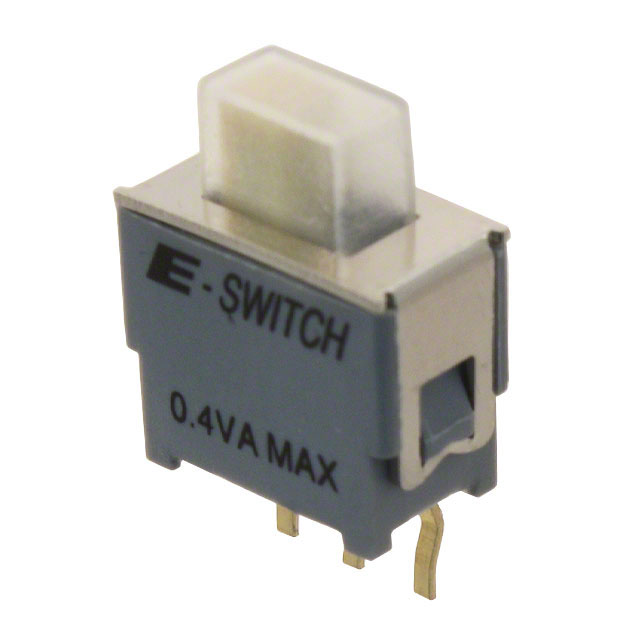

 E-Switch | 1.9 mm | 0.2 kgf | 40000 Cycles | 80 °C | -20 ░C | PC Pin | Epoxy Sealed Terminals IP57 | 20 V | 2.8 mm | Through Hole | 0.4 VA | On-On | Not Specified | 20 V | SPDT | Standard | |

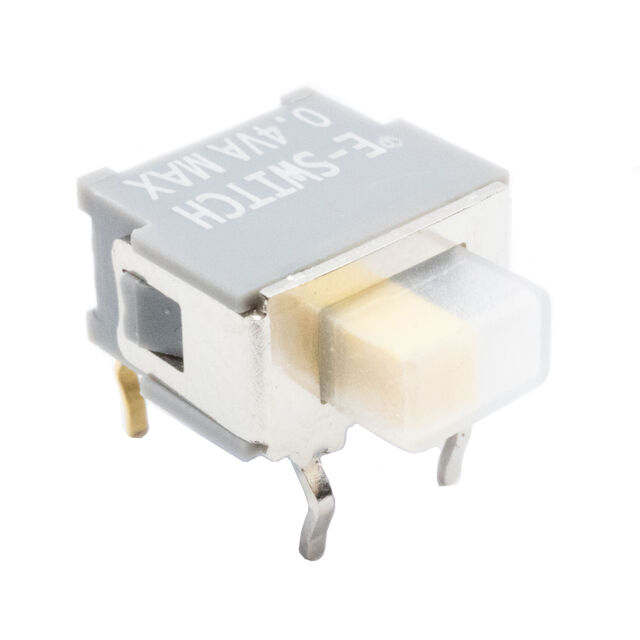

 E-Switch | 1.9 mm | 0.2 kgf | 40000 Cycles | 80 °C | -20 ░C | PC Pin | Epoxy Sealed Terminals IP57 | 20 V | 2.8 mm | Right Angle Through Hole | 0.4 VA | On-On | Not Specified | 20 V | SPDT | Standard |
