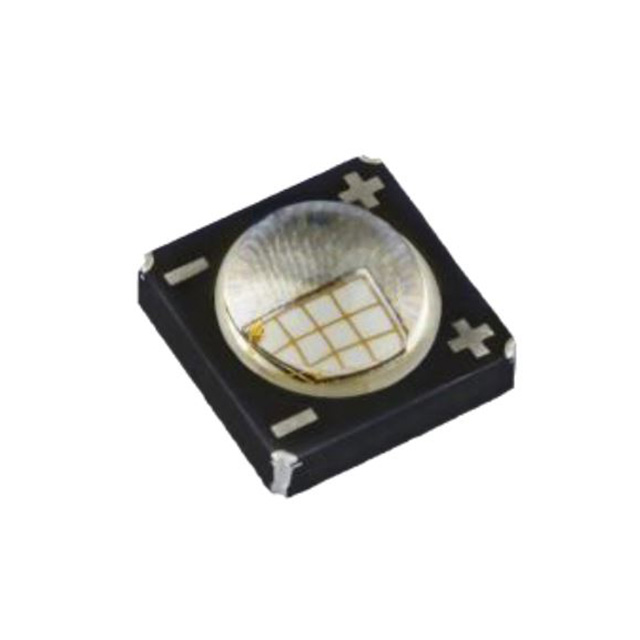

LZ1-00 Series

Catalog

LED LZ1 GREEN 528NM SMD

Part	Thermal Resistance of Package	Current - Test	Wavelength	Current - Max [Max]	Height - Seated (Max) [z]	Height - Seated (Max) [z]	Supplier Device Package	Temperature - Test	Viewing Angle	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]	Voltage - Forward (Vf) (Typ)	Package / Case	Mounting Type	Color	Lumens/Watt @ Current - Test	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Luminous Flux @ Current/Temperature	Wavelength [Min]	Wavelength [Max]	Operating Temperature	Orientation	Type	Current - DC Forward (If) (Max) [Max]	Radiant Intensity (Ie) Min @ If	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test	Flux @ 25°C, Current - Test [Min]	CRI (Color Rendering Index)	CCT (K)

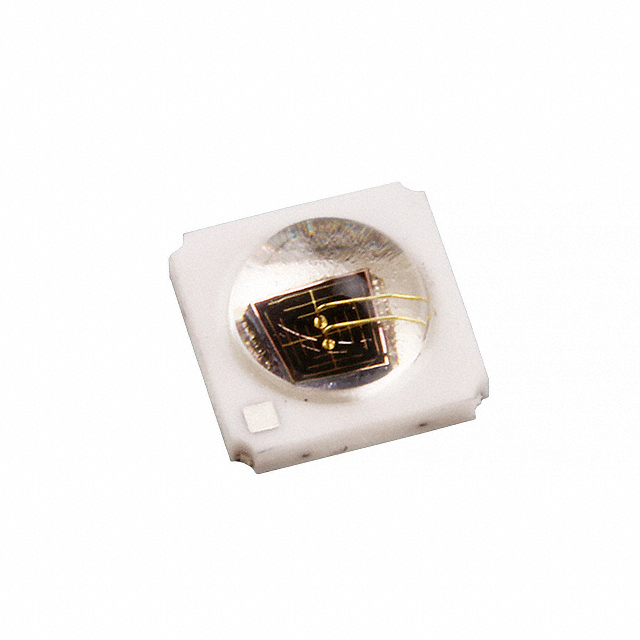

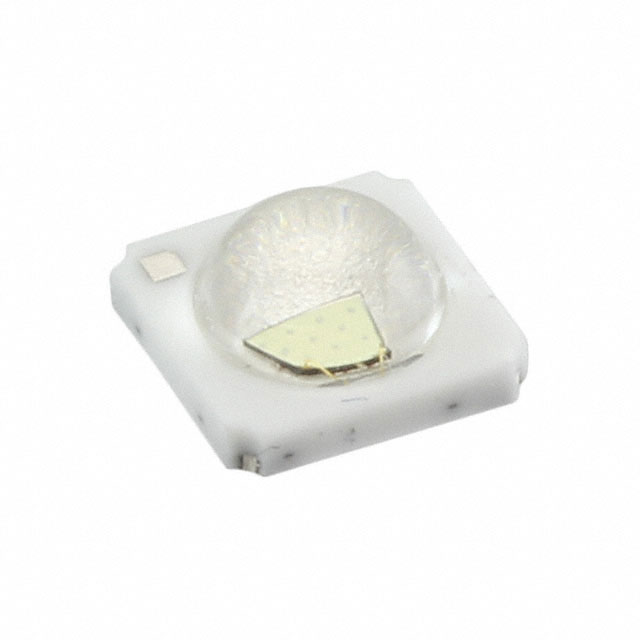

ams-OSRAM USA INC. LZ1-00G102-0000	6 °C/W	1 A	528 nm	1.5 A	2.6 mm	0.102 in	SMD	25 °C	100 °	145 lm	285 lm	3.6 V	1816 (4540 Metric)	Surface Mount	Green	57 lm/W	0.173 in	4.4 mm	4.4 mm	0.173 in

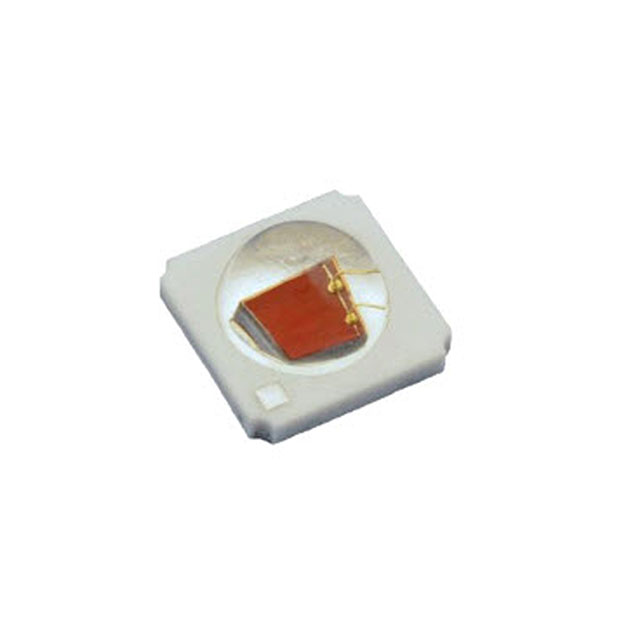

ams-OSRAM USA INC. LZ1-00R202-0000	6 °C/W	1 A	660 nm	1.2 A	2.6 mm	0.102 in	SMD	25 °C	100 °	800 mW	1250 mW	2.5 V	1816 (4540 Metric)	Surface Mount	Red		0.173 in	4.4 mm	4.4 mm	0.173 in	1025 mW	655 nm	670 nm

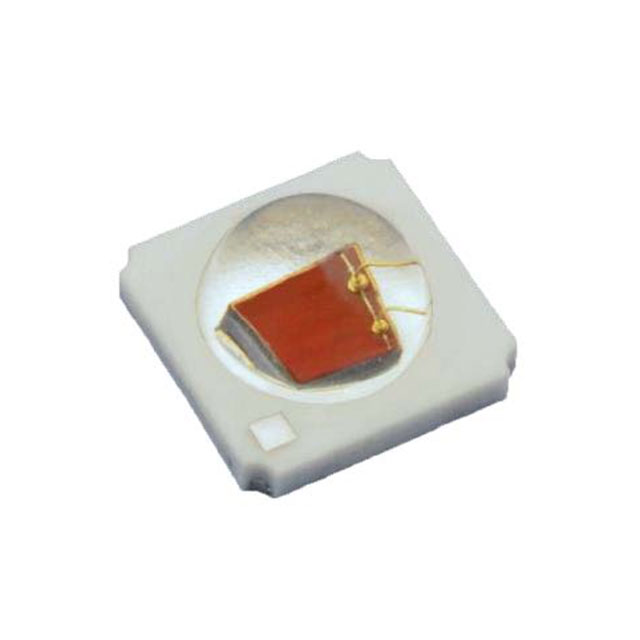

ams-OSRAM USA INC. LZ1-00R102-0000	6 °C/W	1 A	624 nm	1.2 A	2.6 mm	0.102 in	SMD	25 °C	100 °			2.7 V	1816 (4540 Metric)	Surface Mount	Red	64 lm/W	0.173 in	4.4 mm	4.4 mm	0.173 in	173 lm
ams-OSRAM USA INC. LZ1-00R802-0000			1050 nm						90 °			1.6 V	4-SMD No Lead Exposed Pad	Surface Mount										115 °C	Top View	Infrared (IR)	1 A
ams-OSRAM USA INC. LZ1-00DB00-0100			460 nm						80 °			3.6 V	4-SMD No Lead Exposed Pad	Surface Mount										150 °C	Top View		1 A
ams-OSRAM USA INC. LZ1-00R702-0000			940 nm						90 °			3 V	4-SMD No Lead Exposed Pad	Surface Mount										145 °C	Top View	Infrared (IR)	1.2 A

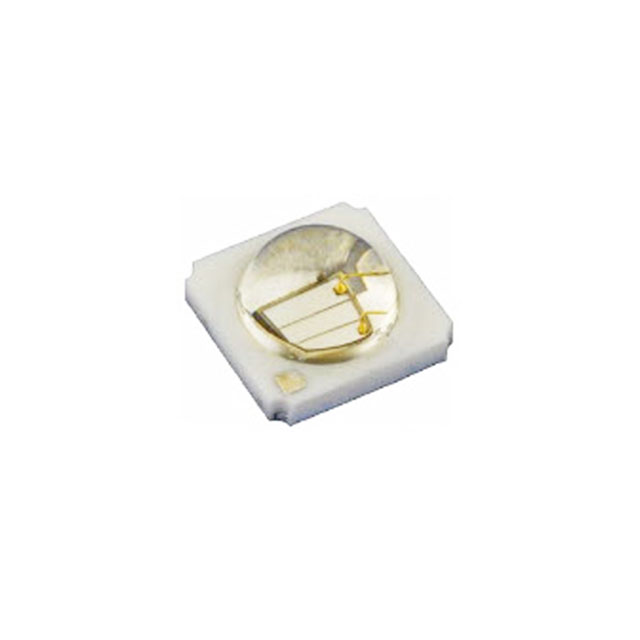

ams-OSRAM USA INC. LZ1-00B202-0000	6 °C/W	1 A	457 nm	1.2 A	2.6 mm	0.102 in	SMD	25 °C	100 °			3.3 V	1816 (4540 Metric)	Surface Mount	Blue	15 lm/W	0.173 in	4.4 mm	4.4 mm	0.173 in	49 lm
ams-OSRAM USA INC. LZ1-00R402-0000			850 nm						100 °			1.8 V	4-SMD No Lead Exposed Pad	Surface Mount										125 ¯C	Top View	Infrared (IR)	1.2 A	640 mW/sr

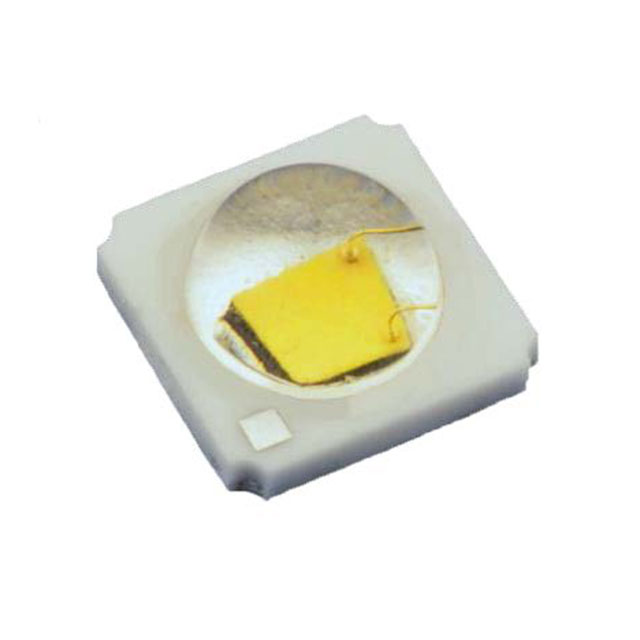

ams-OSRAM USA INC. LZ1-00CW02-0055		1 A		1.2 A	2.6 mm	0.102 in	4040		95 °			3.2 V	4-SMD No Lead Exposed Pad	Surface Mount	Cool White	64 lm/W	0.173 in	4.4 mm	4.4 mm	0.173 in									228 lm	205 lm	182 lm	75	5500 K
ams-OSRAM USA INC. LZ1-00R302-0000	6 °C/W	1 A	734 nm	1.2 A	2.6 mm	0.102 in	SMD	25 °C	100 °	512 mW	800 mW	2.2 V	1816 (4540 Metric)	Surface Mount	Red		0.173 in	4.4 mm	4.4 mm	0.173 in		723 nm	745 nm
