OSTTB02 Series

Catalog

TERM BLK 2POS TOP ENTRY 5MM PCB

Part	Contact Material - Plating	Clamp Material - Plating [custom]	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Torque - Screw	Torque - Screw	Screw Thread	Screw Material - Plating	Mating Orientation	Features	Current	Wire Termination	Pitch	Pitch	Number of Levels	Positions Per Level	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Color

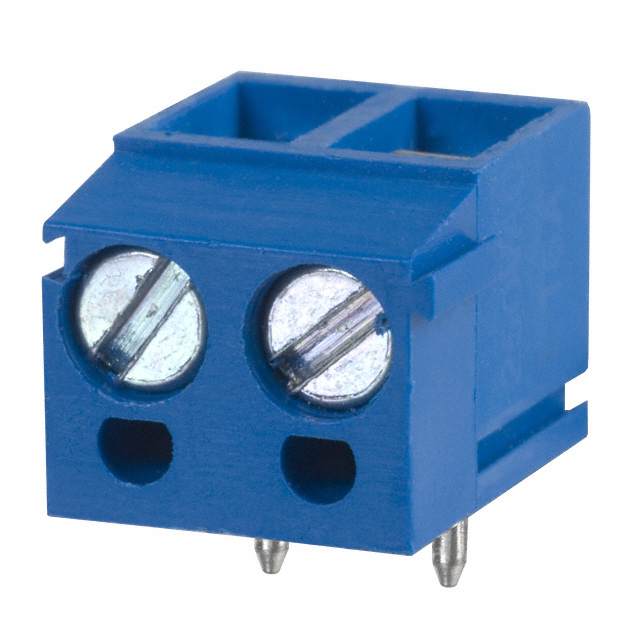

On Shore Technology Inc. OSTTB020161	Tin Plated	Stainless Steel	Thermoplastic	-30 ░C	105 ░C	2.6 Lb-In	0.3 Nm	M3	Steel - Zinc Plated	Vertical with Board	Interlocking (Side)	16 A	Screw - Leaf Spring Wire Guard	0.197 in	5 mm	1	2	Through Hole	14 AWG	22 AWG	Blue

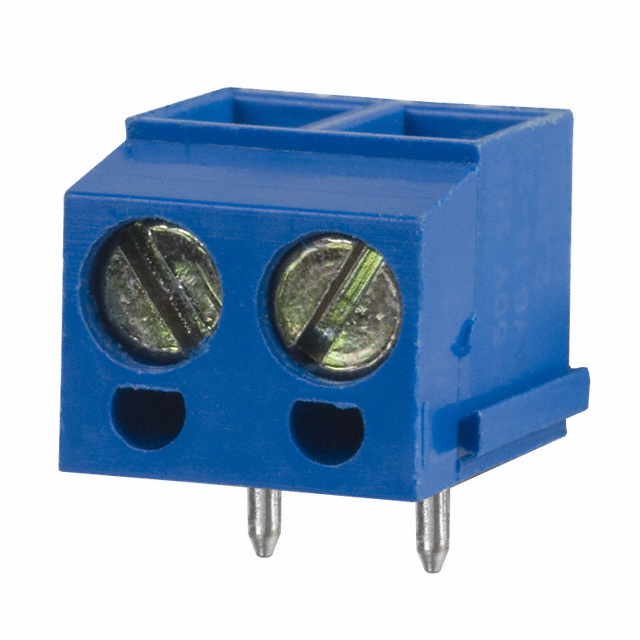

On Shore Technology Inc. OSTTB022161	Tin Plated	Stainless Steel	Thermoplastic	-30 ░C	105 ░C	3.5 Lb-In	0.4 Nm	M3	Steel - Zinc Plated	Vertical with Board	Interlocking (Side)	15 A	Screw - Leaf Spring Wire Guard	0.2 in	5.08 mm	1	2	Through Hole	14 AWG	22 AWG	Blue
On Shore Technology Inc. OSTTB021161	Brass	Stainless Steel	Polyamide (PA) Nylon	-33 °C	120 °C	3.5 Lb-In	0.4 Nm	M3	Steel Galvanized - Chromate Plated	Vertical with Board	Interlocking (Side)	16 A	Screw	0.394 in	10 mm	1	2	Through Hole	14 AWG	22 AWG
