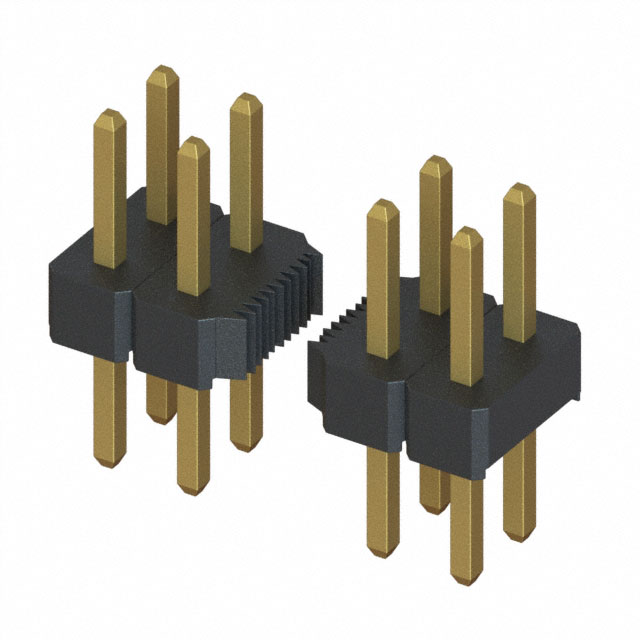

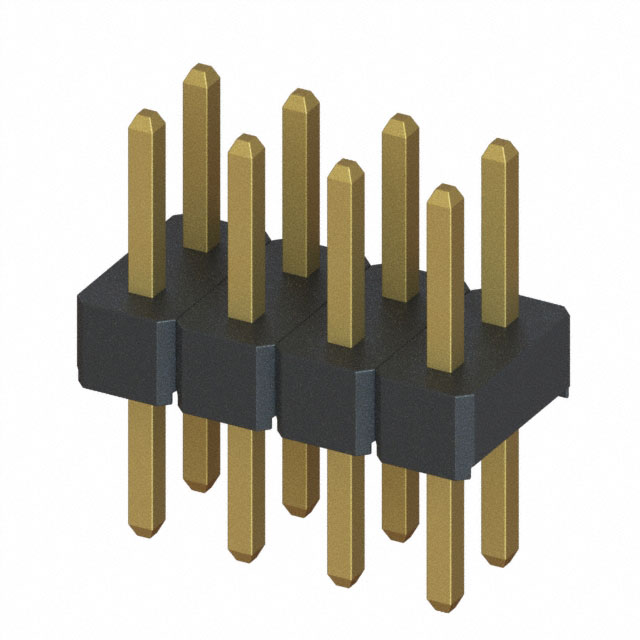

M22-202 Series

Catalog

HEADER CONNECTOR,PCB MOUNT,RECEPT,48 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL ROHS COMPLIANT: YES

Part	Mated Stacking Heights	Number of Positions	Shrouding	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Material	Material Flammability Rating	Connector Type	Contact Finish - Mating	Contact Type	Mounting Type	Contact Shape	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Fastening Type	Contact Length - Mating	Contact Length - Mating	Insulation Color	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post	Row Spacing - Mating	Row Spacing - Mating	Overall Contact Length	Overall Contact Length	Insulation Material	Number of Rows [custom]	Number of Positions [custom]
Harwin Inc. M22-2022405	3.8 mm 5.9 mm 8.6 mm	48	Unshrouded	0.079 "	2 mm	1 A	Phosphor Bronze	UL94 V-0	Header Cuttable	Gold	Male Pin	Through Hole	Square	All	-40 C	105 ░C	Solder	Push-Pull	3.5 mm	0.138 in	Black	0.059 in	1.5 mm	0.134 "	3.4 mm	2 mm	0.079 in	8.4 mm	0.331 in	Nylon 6T Polyamide (PA6T)	2
Harwin Inc. M22-2021705	3.8 mm 5.9 mm 8.6 mm		Unshrouded	0.079 "	2 mm	1 A	Phosphor Bronze	UL94 V-0	Header Cuttable	Gold	Male Pin	Through Hole	Square	All	-40 C	105 ░C	Solder	Push-Pull	3.5 mm	0.138 in	Black	0.059 in	1.5 mm	0.134 "	3.4 mm	2 mm	0.079 in	8.4 mm	0.331 in	Nylon 6T Polyamide (PA6T)	2	34
Harwin Inc. M22-2021405	3.8 mm 5.9 mm 8.6 mm	28	Unshrouded	0.079 "	2 mm	1 A	Phosphor Bronze	UL94 V-0	Header Cuttable	Gold	Male Pin	Through Hole	Square	All	-40 C	105 ░C	Solder	Push-Pull	3.5 mm	0.138 in	Black	0.059 in	1.5 mm	0.134 "	3.4 mm	2 mm	0.079 in	8.4 mm	0.331 in	Nylon 6T Polyamide (PA6T)	2
Harwin Inc. M22-2020605	3.8 mm 5.9 mm 8.6 mm	12	Unshrouded	0.079 "	2 mm	1 A	Phosphor Bronze	UL94 V-0	Header Cuttable	Gold	Male Pin	Through Hole	Square	All	-40 C	105 ░C	Solder	Push-Pull	3.5 mm	0.138 in	Black	0.059 in	1.5 mm	0.134 "	3.4 mm	2 mm	0.079 in	8.4 mm	0.331 in	Nylon 6T Polyamide (PA6T)	2
Harwin Inc. M22-2021505	3.8 mm 5.9 mm 8.6 mm	30	Unshrouded	0.079 "	2 mm	1 A	Phosphor Bronze	UL94 V-0	Header Cuttable	Gold	Male Pin	Through Hole	Square	All	-40 C	105 ░C	Solder	Push-Pull	3.5 mm	0.138 in	Black	0.059 in	1.5 mm	0.134 "	3.4 mm	2 mm	0.079 in	8.4 mm	0.331 in	Nylon 6T Polyamide (PA6T)	2
Harwin Inc. M22-2020805	3.8 mm 5.9 mm 8.6 mm	16	Unshrouded	0.079 "	2 mm	1 A	Phosphor Bronze	UL94 V-0	Header Cuttable	Gold	Male Pin	Through Hole	Square	All	-40 C	105 ░C	Solder	Push-Pull	3.5 mm	0.138 in	Black	0.059 in	1.5 mm	0.134 "	3.4 mm	2 mm	0.079 in	8.4 mm	0.331 in	Nylon 6T Polyamide (PA6T)	2
Harwin Inc. M22-2025005	3.8 mm 5.9 mm 8.6 mm	100	Unshrouded	0.079 "	2 mm	1 A	Phosphor Bronze	UL94 V-0	Header Cuttable	Gold	Male Pin	Through Hole	Square	All	-40 C	105 ░C	Solder	Push-Pull	3.5 mm	0.138 in	Black	0.059 in	1.5 mm	0.134 "	3.4 mm	2 mm	0.079 in	8.4 mm	0.331 in	Nylon 6T Polyamide (PA6T)	2
Harwin Inc. M22-2021205	3.8 mm 5.9 mm 8.6 mm	24	Unshrouded	0.079 "	2 mm	1 A	Phosphor Bronze	UL94 V-0	Header Cuttable	Gold	Male Pin	Through Hole	Square	All	-40 C	105 ░C	Solder	Push-Pull	3.5 mm	0.138 in	Black	0.059 in	1.5 mm	0.134 "	3.4 mm	2 mm	0.079 in	8.4 mm	0.331 in	Nylon 6T Polyamide (PA6T)	2
Harwin Inc. M22-2020405	3.8 mm 5.9 mm 8.6 mm	8	Unshrouded	0.079 "	2 mm	1 A	Phosphor Bronze	UL94 V-0	Header Cuttable	Gold	Male Pin	Through Hole	Square	All	-40 C	105 ░C	Solder	Push-Pull	3.5 mm	0.138 in	Black	0.059 in	1.5 mm	0.134 "	3.4 mm	2 mm	0.079 in	8.4 mm	0.331 in	Nylon 6T Polyamide (PA6T)	2
