Positive Lock 197 Series

Catalog

HOUSING POS LOCK MK III 3 P BROWN ROHS COMPLIANT: YES

Part	Terminal Size	Terminal Size	Stacking Direction	Style	Mounting Type	Gender	Color	Terminal Type	For Use With/Related Products	For Use With/Related Products	For Use With/Related Products	Note	Material	Number of Positions	Insulation Diameter [Max]	Insulation Diameter [Min]	Contact Finish	Termination	Tab Width	Tab Width	Contact Material	Wire Gauge [Min]	Wire Gauge [Max]	Tab Thickness	Tab Thickness	Insulation	Length - Overall [x]	Length - Overall [x]
TE Connectivity AMP Connectors 142681-1	0.197 in	5 mm	Side to Side	Housing	Free Hanging (In-Line)	Female Receptacle	Brown	Quick Connect Disconnect	0.197 in	Quick Connects	5 mm
TE Connectivity AMP Connectors 142680-1	0.197 in	5 mm	Side to Side	Housing	Free Hanging (In-Line)	Female Receptacle	Brown	Quick Connect Disconnect	0.197 in	Quick Connects	5 mm	Contacts Not Included	Nylon	2
TE Connectivity AMP Connectors 142680-4	0.197 in	5 mm	Side to Side	Housing	Free Hanging (In-Line)	Female Receptacle	Yellow	Quick Connect Disconnect	0.197 in	Quick Connects	5 mm			2

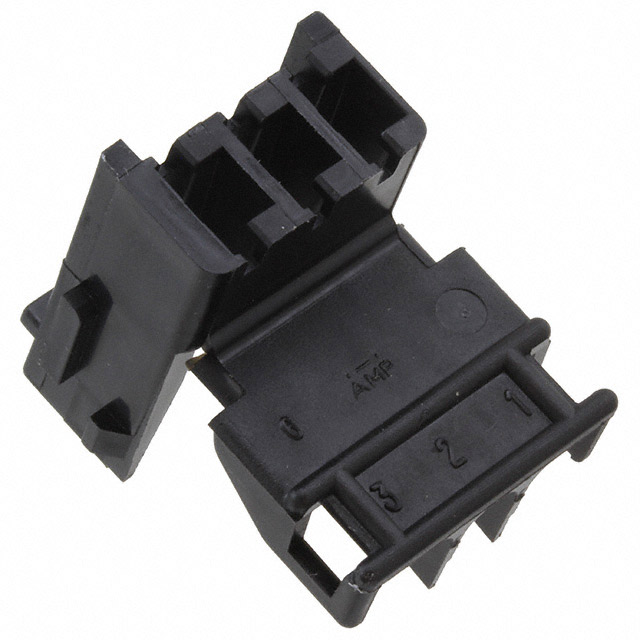

TE Connectivity AMP Connectors 142681	0.197 in	5 mm	Side to Side	Housing	Free Hanging (In-Line)	Female Receptacle	Black	Quick Connect Disconnect	0.197 in	Quick Connects	5 mm	Contacts Not Included	Nylon

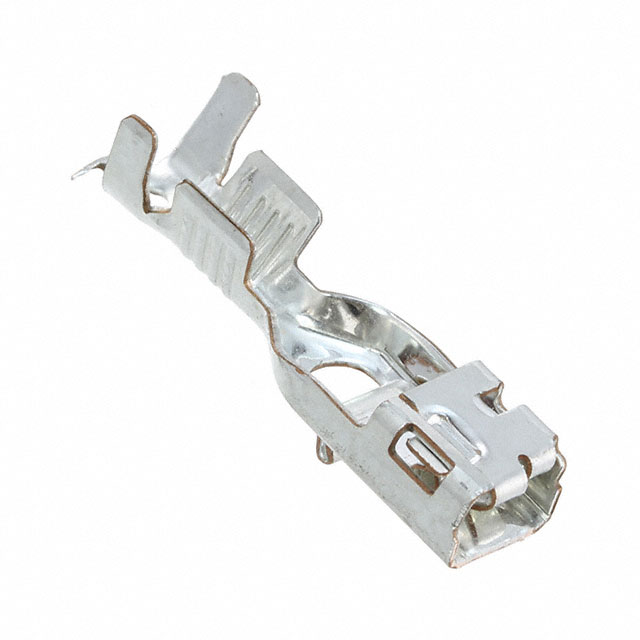

TE Connectivity AMP Connectors 142686-1					Free Hanging (In-Line)	Female		Standard							0.126 in 3.2 mm	0.079 in 2 mm	Tin	Crimp	0.197 "	5 mm	Phosphor Bronze	12 AWG	17 AWG	0.79 mm	0.031 in	Non-Insulated	21 mm	0.827 in
TE Connectivity AMP Connectors 142680	0.197 in	5 mm	Side to Side	Housing	Free Hanging (In-Line)	Female Receptacle	Black	Quick Connect Disconnect	0.197 in	Quick Connects	5 mm			2
