Elum0 Series Series

Pushbutton Switches Pushbutton-Illuminat Industrial Controls Right Angle Illuminated Latching Pushbutton

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Pushbutton Switches Pushbutton-Illuminat Industrial Controls Right Angle Illuminated Latching Pushbutton

Part	Color - Actuator/Cap	Current Rating (Amps)	Mounting Type	Voltage Rating - DC	Type	Termination Style	Actuator Marking	Illumination Voltage (Nominal)	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Illumination Type, Color	Circuit	Switch Function	Illumination	Color	For Use With/Related Products	Shape	Switch Type	Size [z]	Size [diameter]	Features
Littelfuse/Commercial Vehicle Products ELUMEESAQ3C12	Black	250 mA	Surface Mount Right Angle	50 VDC	Illuminated Standard	Gull Wing	No Marking	2 VDC	Rectangular Button	-40 °C	80 C	LED Red	SPDT	On-On
Littelfuse/Commercial Vehicle Products ELUMOASAQC02	Black	250 mA	Surface Mount Right Angle	50 VDC	Standard	Gull Wing	No Marking		Rectangular Button	-40 °C	80 C		SPDT	On-Mom

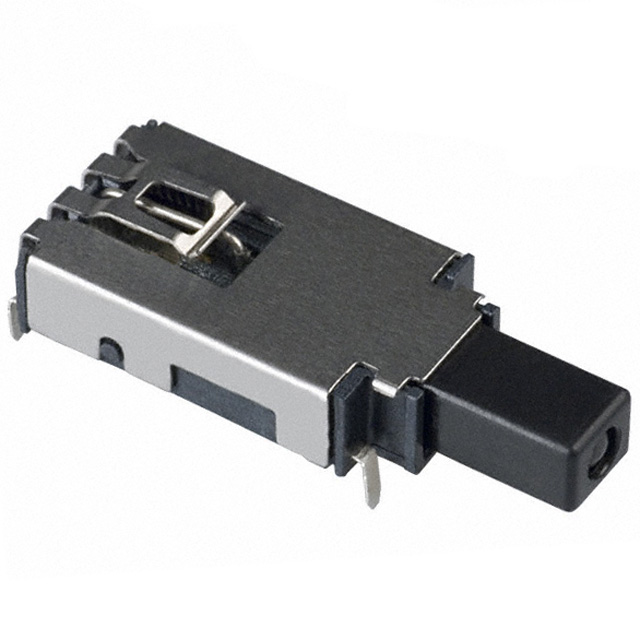

Littelfuse/Commercial Vehicle Products ELUMEETHQ6C12	Black	250 mA	Through Hole Right Angle	50 VDC	Illuminated Standard	PC Pin	No Marking	2 VDC	Rectangular Button	-40 °C	80 C	Green LED	SPDT	On-On
Littelfuse/Commercial Vehicle Products ELUMEETHQ3C12	Black	250 mA	Through Hole Right Angle	50 VDC	Illuminated Standard	PC Pin	No Marking	2 VDC	Rectangular Button	-40 °C	80 C	LED Red	SPDT	On-On
Littelfuse/Commercial Vehicle Products ELUMOATHQ3C12	Black	250 mA	Through Hole Right Angle	50 VDC	Illuminated Standard	PC Pin	No Marking	2 VDC	Rectangular Button	-40 °C	80 C	LED Red	SPDT	On-Mom
Littelfuse/Commercial Vehicle Products ELUMOASAQ1C12	Black	250 mA	Surface Mount Right Angle	50 VDC	Illuminated Standard	Gull Wing	No Marking	2 VDC	Rectangular Button	-40 °C	80 C	LED White	SPDT	On-Mom
Littelfuse/Commercial Vehicle Products ELUMOASAQ2C12	Black	250 mA	Surface Mount Right Angle	50 VDC	Illuminated Standard	Gull Wing	No Marking	2 VDC	Rectangular Button	-40 °C	80 C	Green/Red LED	SPDT	On-Mom
Littelfuse/Commercial Vehicle Products 181D01000			Snap Fit												Illumination Opening	Black Transparent Lens	ELUM™ Series	Round Convex	Pushbutton	12.33 mm	6.86 mm	Standby Symbol

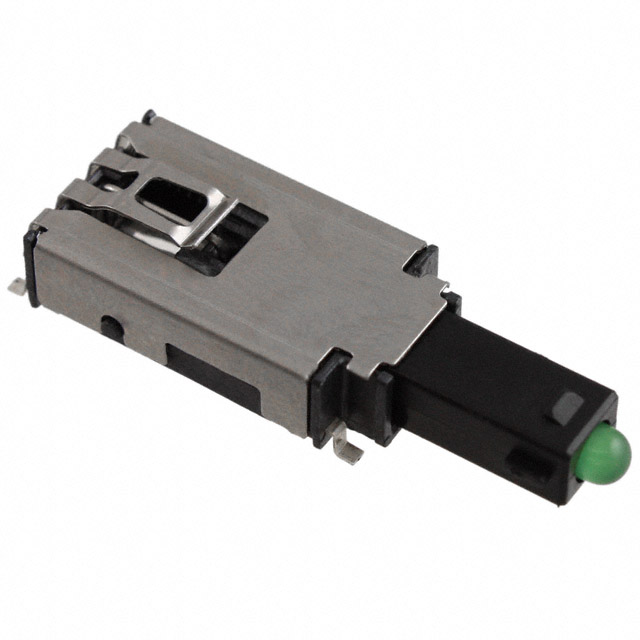

Littelfuse/Commercial Vehicle Products ELUMEESAQ6C22	Black	250 mA	Surface Mount Right Angle	50 VDC	Illuminated Standard	Gull Wing	No Marking	2 VDC	Plunger for Cap	-40 °C	80 C	Green LED	SPDT	On-On
Littelfuse/Commercial Vehicle Products ELUMOASAQ8C12	Black	250 mA	Surface Mount Right Angle	50 VDC	Illuminated Standard	Gull Wing	No Marking	2 VDC	Rectangular Button	-40 °C	80 C	Amber/Green LED	SPDT	On-Mom

Catalog

Pushbutton Switches Pushbutton-Illuminat Industrial Controls Right Angle Illuminated Latching Pushbutton

Key Features

• Reliable self-cleaning contact

• Standard or custom actuator

• Low height above PCB

Description

C&K’s ELUM series of right angle illuminated latching pushbutton switches can be found in the telecommunications, automotive, medical and computing equipment industries – and are used often in instrumentation, electronics, server, modem and storage applications. ELUM switches feature a low height above PCB, reliable self-cleaning contacts and central LED illumination. Additionally, ELUMs are available with either a standard or custom actuator, with a surface-mount or thru-hole PCB and with either latching or momentary switch designs.
