HLW10S Series

Catalog

CONN FFC FPC VERT 10POS 1MM PCB

Part	Mating Cycles	Housing Color	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Termination	Voltage Rating	Number of Positions	Flat Flex Type	Mounting Type	FFC, FCB Thickness	Height Above Board [z]	Height Above Board [z]	Material Flammability Rating	Pitch	Pitch	Connector/Contact Type	Contact Finish	Cable End Type

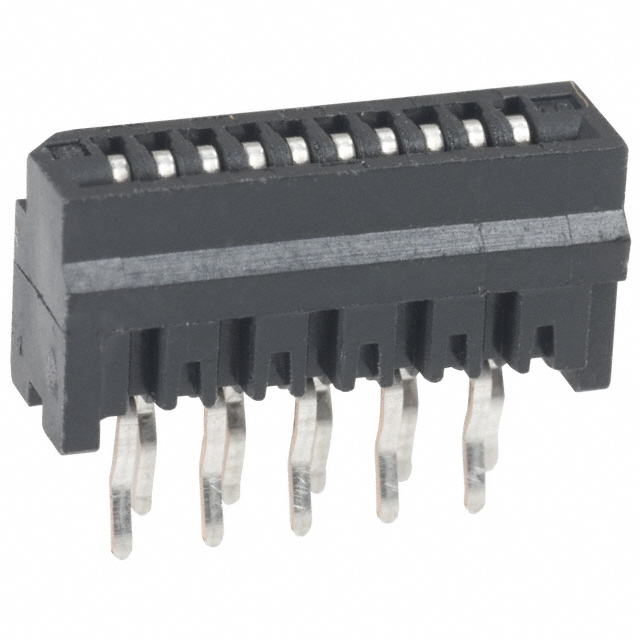

Amphenol ICC (FCI) HLW10S-2C7LF	30	Black	Phosphor Bronze	-55 C	85 °C	Polybutylene Terephthalate (PBT) Glass Filled	Kinked Pin	100 V	10	FFC FPC	Through Hole	0.33 mm	5.9 mm	0.232 "	UL94 V-0	1 mm	0.039 in	Contacts Vertical - 1 Sided	Tin
Amphenol ICC (FCI) HLW10S-2D7LF	30	Black	Phosphor Bronze	-55 C	85 °C	Polybutylene Terephthalate (PBT) Glass Filled	Kinked Pin	100 V	10	FFC FPC	Through Hole	0.3 mm	5.9 mm	0.232 "	UL94 V-0	1 mm	0.039 in	Contacts Vertical - 1 Sided	Tin	Straight or Tapered
