399-V3 Series
Manufacturer: Preci-Dip
Beta
⌘K

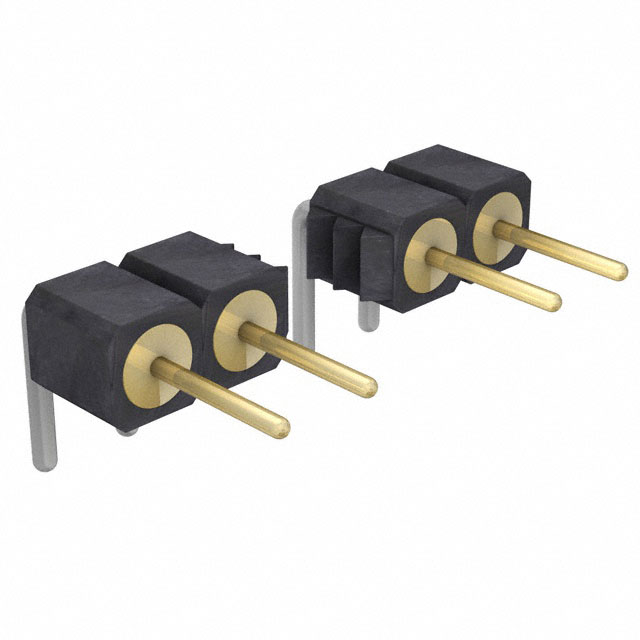

CONN HEADER R/A 16POS 2.54MM
| Part | Mounting Type | Insulation Material | Number of Positions Loaded | Contact Shape | Termination | Number of Positions | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Contact Material | Fastening Type | Current Rating (Amps) | Number of Rows | Pitch - Mating | Pitch - Mating | Insulation Color | Contact Length - Post [x] | Contact Length - Post [x] | Voltage Rating | Connector Type | Shrouding | Contact Finish - Post | Insulation Height | Insulation Height | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Mating | Contact Length - Mating | Contact Type | Material Flammability Rating | Contact Finish - Mating | Number of Positions [custom] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | Right Angle Through Hole | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | All | Circular | Solder | 16 | 29.5 µin | 0.75 µm | Brass | Push-Pull | 3 A | 1 | 0.1 " | 2.54 mm | Black | 0.126 " | 3.2 mm | 150 VDC | Header | Unshrouded | Tin | 0.1 in | 2.54 mm | -55 C | 125 °C | 4 mm | 0.157 in | Male Pin | UL94 V-0 | Gold | ||
Preci-Dip | Right Angle Through Hole | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | All | Circular | Solder | 56 | 29.5 µin | 0.75 µm | Brass | Push-Pull | 3 A | 1 | 0.1 " | 2.54 mm | Black | 0.126 " | 3.2 mm | 150 VDC | Header | Unshrouded | Tin | 0.1 in | 2.54 mm | -55 C | 125 °C | 4 mm | 0.157 in | Male Pin | UL94 V-0 | Gold | ||
Preci-Dip | Right Angle Through Hole | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | All | Circular | Solder | 61 | 29.5 µin | 0.75 µm | Brass | Push-Pull | 3 A | 1 | 0.1 " | 2.54 mm | Black | 0.126 " | 3.2 mm | 150 VDC | Header | Unshrouded | Tin | 0.1 in | 2.54 mm | -55 C | 125 °C | 4 mm | 0.157 in | Male Pin | UL94 V-0 | Gold | ||
Preci-Dip | Right Angle Through Hole | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | All | Circular | Solder | 29.5 µin | 0.75 µm | Brass | Push-Pull | 3 A | 1 | 0.1 " | 2.54 mm | Black | 0.126 " | 3.2 mm | 150 VDC | Header | Unshrouded | Tin | 0.1 in | 2.54 mm | -55 C | 125 °C | 4 mm | 0.157 in | Male Pin | UL94 V-0 | Gold | 34 | ||
Preci-Dip | Right Angle Through Hole | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | All | Circular | Solder | 8 | 29.5 µin | 0.75 µm | Brass | Push-Pull | 3 A | 1 | 0.1 " | 2.54 mm | Black | 0.126 " | 3.2 mm | 150 VDC | Header | Unshrouded | Tin | 0.1 in | 2.54 mm | -55 C | 125 °C | 4 mm | 0.157 in | Male Pin | UL94 V-0 | Gold | ||
Preci-Dip | Right Angle Through Hole | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | All | Circular | Solder | 39 | 29.5 µin | 0.75 µm | Brass | Push-Pull | 3 A | 1 | 0.1 " | 2.54 mm | Black | 0.126 " | 3.2 mm | 150 VDC | Header | Unshrouded | Tin | 0.1 in | 2.54 mm | -55 C | 125 °C | 4 mm | 0.157 in | Male Pin | UL94 V-0 | Gold | ||
Preci-Dip | Right Angle Through Hole | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | All | Circular | Solder | 38 | 29.5 µin | 0.75 µm | Brass | Push-Pull | 3 A | 1 | 0.1 " | 2.54 mm | Black | 0.126 " | 3.2 mm | 150 VDC | Header | Unshrouded | Tin | 0.1 in | 2.54 mm | -55 C | 125 °C | 4 mm | 0.157 in | Male Pin | UL94 V-0 | Gold | ||
Preci-Dip | Right Angle Through Hole | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | All | Circular | Solder | 19 | 29.5 µin | 0.75 µm | Brass | Push-Pull | 3 A | 1 | 0.1 " | 2.54 mm | Black | 0.126 " | 3.2 mm | 150 VDC | Header | Unshrouded | Tin | 0.1 in | 2.54 mm | -55 C | 125 °C | 4 mm | 0.157 in | Male Pin | UL94 V-0 | Gold | ||
Preci-Dip | Right Angle Through Hole | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | All | Circular | Solder | 25 | 29.5 µin | 0.75 µm | Brass | Push-Pull | 3 A | 1 | 0.1 " | 2.54 mm | Black | 0.126 " | 3.2 mm | 150 VDC | Header | Unshrouded | Tin | 0.1 in | 2.54 mm | -55 C | 125 °C | 4 mm | 0.157 in | Male Pin | UL94 V-0 | Gold | ||
Preci-Dip | Right Angle Through Hole | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | All | Circular | Solder | 29.5 µin | 0.75 µm | Brass | Push-Pull | 3 A | 1 | 0.1 " | 2.54 mm | Black | 0.126 " | 3.2 mm | 150 VDC | Header | Unshrouded | Tin | 0.1 in | 2.54 mm | -55 C | 125 °C | 4 mm | 0.157 in | Male Pin | UL94 V-0 | Gold | 47 |
