M22-636 Series

Catalog

PCB RECEPTACLE, BOARD-TO-BOARD, 2 MM, 2 ROWS, 10 CONTACTS, SURFACE MOUNT, M22 SERIES

Part	Insulation Material	Applications	Contact Shape	Contact Material	Connector Type	Mated Stacking Heights	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Mounting Type	Contact Type	Number of Positions	Contact Finish - Post	Features	Style	Insulation Color	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Number of Positions Loaded	Insulation Height [z]	Insulation Height [z]	Termination	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Number of Positions [custom]
Harwin Inc. M22-6360542	Nylon 9T Polyamide (PA9T)	General Purpose Industrial Telecommunications	Square	Phosphor Bronze	Receptacle Bottom or Top Entry	3.6 mm 4.35 mm 4.6 mm	2 A	-40 C	105 ░C	2	Surface Mount	Female Socket	10	Tin	Board Guide	Board to Board Cable	Black	Push-Pull	2 mm	0.079 in	Flash	Gold	All	2 mm	0.079 in	Solder	UL94 V-0	0.079 "	2 mm
Harwin Inc. M22-6360642	Nylon 9T Polyamide (PA9T)	General Purpose Industrial Telecommunications	Square	Phosphor Bronze	Receptacle Bottom or Top Entry	3.6 mm 4.35 mm 4.6 mm	2 A	-40 C	105 ░C	2	Surface Mount	Female Socket	12	Tin	Board Guide	Board to Board Cable	Black	Push-Pull	2 mm	0.079 in	Flash	Gold	All	2 mm	0.079 in	Solder	UL94 V-0	0.079 "	2 mm
Harwin Inc. M22-6361742R	Nylon 9T Polyamide (PA9T)	General Purpose Industrial Telecommunications	Square	Phosphor Bronze	Receptacle Bottom or Top Entry	3.6 mm 4.35 mm 4.6 mm	2 A	-40 C	105 ░C	2	Surface Mount	Female Socket		Tin	Board Guide	Board to Board Cable	Black	Push-Pull	2 mm	0.079 in	Flash	Gold	All	2 mm	0.079 in	Solder	UL94 V-0	0.079 "	2 mm	34
Harwin Inc. M22-6360742	Nylon 9T Polyamide (PA9T)	General Purpose Industrial Telecommunications	Square	Phosphor Bronze	Receptacle Bottom or Top Entry	3.6 mm 4.35 mm 4.6 mm	2 A	-40 C	105 ░C	2	Surface Mount	Female Socket	14	Tin	Board Guide	Board to Board Cable	Black	Push-Pull	2 mm	0.079 in	Flash	Gold	All	2 mm	0.079 in	Solder	UL94 V-0	0.079 "	2 mm
Harwin Inc. M22-6360342	Nylon 9T Polyamide (PA9T)	General Purpose Industrial Telecommunications	Square	Phosphor Bronze	Receptacle Bottom or Top Entry	3.6 mm 4.35 mm 4.6 mm	2 A	-40 C	105 ░C	2	Surface Mount	Female Socket	6	Tin	Board Guide	Board to Board Cable	Black	Push-Pull	2 mm	0.079 in	Flash	Gold	All	2 mm	0.079 in	Solder	UL94 V-0	0.079 "	2 mm
Harwin Inc. M22-6360546	Nylon 9T Polyamide (PA9T)	General Purpose Industrial Telecommunications	Square	Phosphor Bronze	Receptacle Bottom or Top Entry	3.6 mm 4.35 mm 4.6 mm	2 A	-40 C	105 ░C	2	Surface Mount	Female Socket	10	Tin	Board Guide	Board to Board Cable	Black	Push-Pull	2 mm	0.079 in			All	2 mm	0.079 in	Solder	UL94 V-0	0.079 "	2 mm

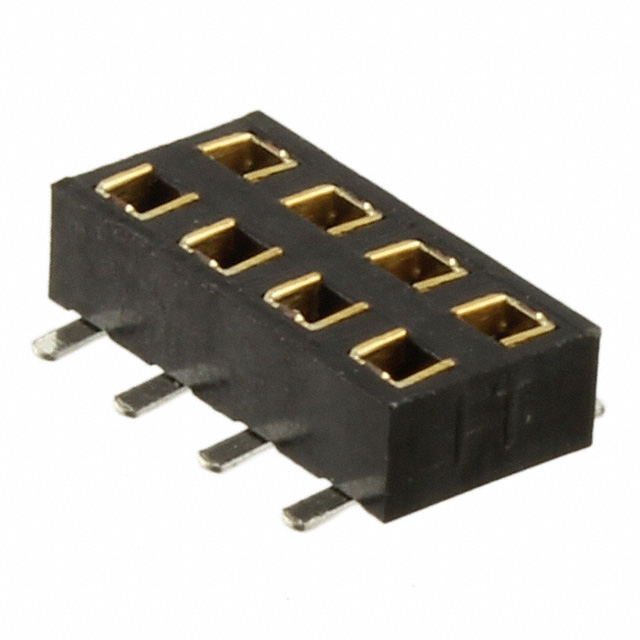

Harwin Inc. M22-6360442	Nylon 9T Polyamide (PA9T)	General Purpose Industrial Telecommunications	Square	Phosphor Bronze	Receptacle Bottom or Top Entry	3.6 mm 4.35 mm 4.6 mm	2 A	-40 C	105 ░C	2	Surface Mount	Female Socket	8	Tin	Board Guide	Board to Board Cable	Black	Push-Pull	2 mm	0.079 in	Flash	Gold	All	2 mm	0.079 in	Solder	UL94 V-0	0.079 "	2 mm
Harwin Inc. M22-6361042	Nylon 9T Polyamide (PA9T)	General Purpose Industrial Telecommunications	Square	Phosphor Bronze	Receptacle Bottom or Top Entry	3.6 mm 4.35 mm 4.6 mm	2 A	-40 C	105 ░C	2	Surface Mount	Female Socket	20	Tin	Board Guide	Board to Board Cable	Black	Push-Pull	2 mm	0.079 in	Flash	Gold	All	2 mm	0.079 in	Solder	UL94 V-0	0.079 "	2 mm
