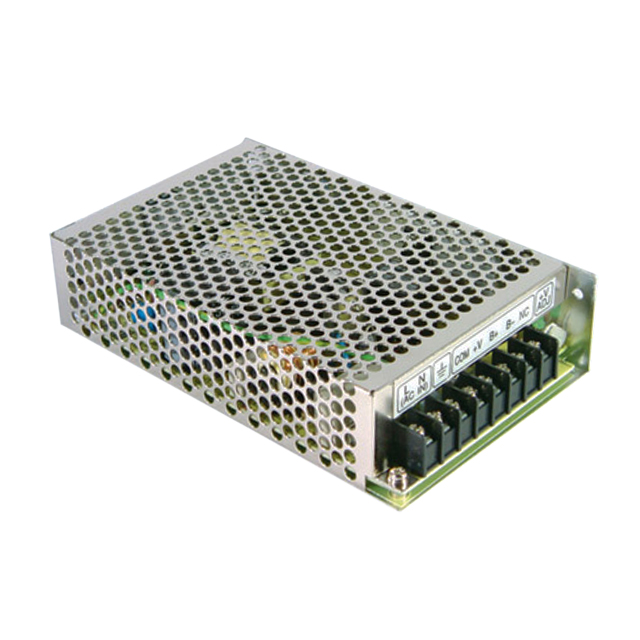

AD-55 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 13.8V 13.4V 51W
| Part | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Efficiency | Current - Output 2 | Voltage - Input [Max] | Voltage - Input [Min] | Approval Agency | Voltage - Output 2 | Voltage - Isolation | Voltage - Output 1 [custom] | Mounting Type | Number of Outputs | Power (Watts) | Type | Features | Current - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 1.5 in | 6.26 in | 159 mm | 3.82 in | 38 mm | 97 mm | ITE (Commercial) | -10 °C | 60 °C | 71 % | 230 mA | 264 VAC 370 VDC | 88 VAC 124 VDC | CB CE cURus TUV | 13.4 V | 3000 V | 13.8 V | Chassis Mount | 2 | 51 W | Enclosed | Adjustable Output Universal Input | 3.5 A |
