SM26B-ZP Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

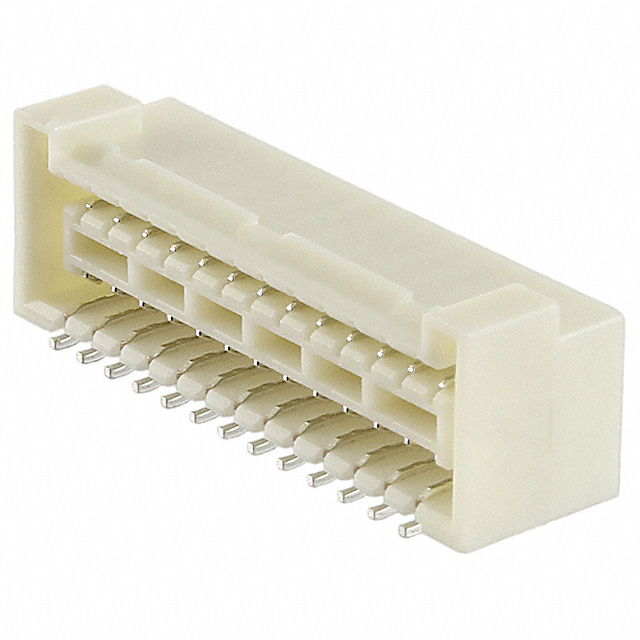

CONN HEADER SMD R/A 26POS 1.5MM
| Part | Termination | Number of Positions | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Contact Material | Style | Number of Positions Loaded | Insulation Color | Contact Finish - Post | Voltage Rating | Insulation Material | Contact Shape | Current Rating (Amps) | Mounting Type | Contact Type | Connector Type | Shrouding | Number of Rows [custom] | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Solder | 26 | Locking Ramp | 85 °C | -25 °C | UL94 V-0 | Copper Alloy | Board to Cable/Wire | All | Natural | Tin | 100 V | Nylon Polyamide (PA) | Rectangular | 2 A | Right Angle Surface Mount | Outer Shroud Contact | Header | Shrouded - 4 Wall | 2 | 7.85 mm | 0.309 in |
