LM358-N Series

Dual, 30-V, 700-kHz, 3-mV offset voltage operational amplifier

Catalog

Dual, 30-V, 700-kHz, 3-mV offset voltage operational amplifier

Part	Current - Input Bias	Current - Supply	Package / Case	Package / Case	Package / Case	Current - Output / Channel [custom]	Voltage - Input Offset	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Slew Rate	Voltage - Supply Span (Min) [Min]	Mounting Type	Amplifier Type	Gain Bandwidth Product	Voltage - Supply Span (Max) [Max]	Number of Circuits	Package / Case [y]	Package / Case [x]	Package / Case [custom]	Package / Case [custom]
Texas Instruments LM358P	20 nA	500 ÁA	0.3 in	8-DIP	7.62 mm	40 mA	3 mV	8-PDIP	70 °C	0 °C	0.3 V/Ás	3 V	Through Hole	General Purpose	700 kHz	30 V	2

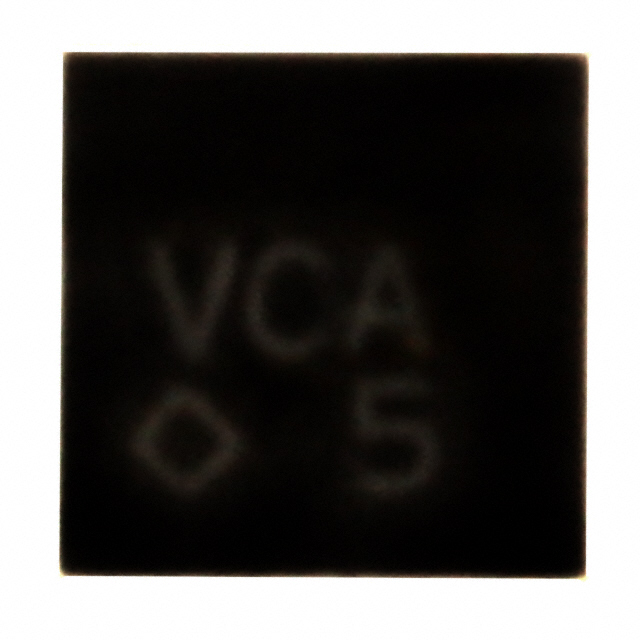

Texas Instruments LM358BP	10 nA			8-VFBGA		40 mA	1 mV	8-uSMD	85 °C	-40 °C		3 V	Surface Mount	General Purpose	1.2 MHz	30 V	2
Texas Instruments LM358LVIDDFR	15 pA	90 µA		SOT-23-8 Thin TSOT-23-8		40 mA	1 mV	TSOT-23-8	125 °C	-40 °C	1.5 V/µs	2.7 V	Surface Mount	General Purpose	1 MHz	5.5 V	2
Texas Instruments LM358ADRE4	15 nA	500 ÁA		8-SOIC		40 mA	2 mV	8-SOIC	70 °C	0 °C	0.3 V/Ás	3 V	Surface Mount	General Purpose	700 kHz	30 V	2	3.9 mm	0.154 in
Texas Instruments LM358APWR	15 nA	500 ÁA		8-TSSOP		40 mA	2 mV	8-TSSOP	70 °C	0 °C	0.3 V/Ás	3 V	Surface Mount	General Purpose	700 kHz	30 V	2			0.173 "	4.4 mm
Texas Instruments LM358PE3	20 nA	500 ÁA	0.3 in	8-DIP	7.62 mm	40 mA	3 mV	8-PDIP	70 °C	0 °C	0.3 V/Ás	3 V	Through Hole	General Purpose	700 kHz	30 V	2
Texas Instruments LM358DR	20 nA	500 ÁA		8-SOIC		40 mA	3 mV	8-SOIC	70 °C	0 °C	0.3 V/Ás	3 V	Surface Mount	General Purpose	700 kHz	30 V	2	3.9 mm	0.154 in
Texas Instruments LM358ADG4	15 nA	500 ÁA		8-SOIC		40 mA	2 mV	8-SOIC	70 °C	0 °C	0.3 V/Ás	3 V	Surface Mount	General Purpose	1.1 MHz	30 V	2	3.9 mm	0.154 in
Texas Instruments LM358PWRG3	20 nA	500 ÁA		8-TSSOP		40 mA	3 mV	8-TSSOP	70 °C	0 °C	0.3 V/Ás	3 V	Surface Mount	General Purpose	700 kHz	30 V	2			0.173 "	4.4 mm
Texas Instruments LM358N/NOPB	45 nA	1 mA	0.3 in	8-DIP	7.62 mm	40 mA	2 mV	8-PDIP	70 °C	0 °C		3 V	Through Hole	General Purpose	1 MHz	32 V	2

Catalog

Dual, 30-V, 700-kHz, 3-mV offset voltage operational amplifier

Key Features

• Available in 8-bump DSBGA chip-sized package (see AN-1112,SNVA009)Internally frequency compensated for unity gainLarge DC voltage gain: 100 dBWide bandwidth (unity gain): 1 MHz (temperature compensated)Wide power supply range:Single supply: 3 V to 32 VOr dual supplies: ±1.5 V to ±16 VVery low supply current drain (500 µA) essentially independent of supply voltageLow input offset voltage: 2 mVInput common-mode voltage range includes groundDifferential input voltage range equal to the power supply voltageLarge output voltage swingUnique characteristics:In the Linear Mode the input common-mode voltage range includes ground and the output voltage can also swing to ground, even though operated from only a single power supply voltageThe unity gain cross frequency is temperature compensatedThe input bias current is also temperature compensatedAdvantages:Two internally compensated op ampsEliminates need for dual suppliesAllows direct sensing near GND and VOUTalso goes to GNDCompatible with all forms of logicPower drain suitable for battery operationAvailable in 8-bump DSBGA chip-sized package (see AN-1112,SNVA009)Internally frequency compensated for unity gainLarge DC voltage gain: 100 dBWide bandwidth (unity gain): 1 MHz (temperature compensated)Wide power supply range:Single supply: 3 V to 32 VOr dual supplies: ±1.5 V to ±16 VVery low supply current drain (500 µA) essentially independent of supply voltageLow input offset voltage: 2 mVInput common-mode voltage range includes groundDifferential input voltage range equal to the power supply voltageLarge output voltage swingUnique characteristics:In the Linear Mode the input common-mode voltage range includes ground and the output voltage can also swing to ground, even though operated from only a single power supply voltageThe unity gain cross frequency is temperature compensatedThe input bias current is also temperature compensatedAdvantages:Two internally compensated op ampsEliminates need for dual suppliesAllows direct sensing near GND and VOUTalso goes to GNDCompatible with all forms of logicPower drain suitable for battery operation

Description

The LM358B and LM2904B devices are the next-generation versions of the industry-standard operational amplifiers (op amps) LM358 and LM2904, which include two high-voltage (36V) op amps. These devices provide outstanding value for cost-sensitive applications, with features including low offset (300µV, typical), common-mode input range to ground, and high differential input voltage capability. The LM358B and LM2904B op amps simplify circuit design with enhanced features such as unity-gain stability, lower offset voltage maximum of 3mV (2mV maximum for LM358BA and LM2904BA), and lower quiescent current of 300µA per amplifier (typical). High ESD (2kV, HBM) and integrated EMI and RF filters enable the LM358B and LM2904B devices to be used in the most rugged, environmentally challenging applications. The LM358B and LM2904B amplifiers are available in micro-sized packaging, such as the SOT23-8, as well as industry standard packages including SOIC, TSSOP, and VSSOP. The LM358B and LM2904B devices are the next-generation versions of the industry-standard operational amplifiers (op amps) LM358 and LM2904, which include two high-voltage (36V) op amps. These devices provide outstanding value for cost-sensitive applications, with features including low offset (300µV, typical), common-mode input range to ground, and high differential input voltage capability. The LM358B and LM2904B op amps simplify circuit design with enhanced features such as unity-gain stability, lower offset voltage maximum of 3mV (2mV maximum for LM358BA and LM2904BA), and lower quiescent current of 300µA per amplifier (typical). High ESD (2kV, HBM) and integrated EMI and RF filters enable the LM358B and LM2904B devices to be used in the most rugged, environmentally challenging applications. The LM358B and LM2904B amplifiers are available in micro-sized packaging, such as the SOT23-8, as well as industry standard packages including SOIC, TSSOP, and VSSOP.
