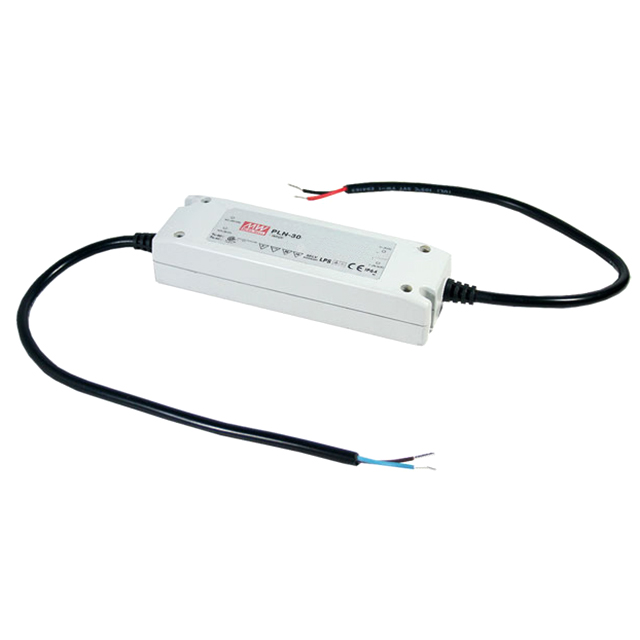

PLN-30 Series

Catalog

LED DRIVER CC AC/DC 6.3-9V 3.3A

Part	Mounting Type	Approval Agency	Efficiency	Termination Style	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output [Min]	Voltage - Output [Max]	Power (Watts)	Type	Ratings	Topology	Voltage - Isolation	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Features
MEAN WELL USA Inc. PLN-30-9	Chassis Mount	CB cCSAus CE cURus PSE TUV	80 %	Wire Leads	90 VAC	-30 ░C	50 °C	6.3 V	9 V	30 Watts	Constant Current	IP64	AC DC Converter	3750 VDC	295 VAC	3.3 A	1	47 mm	30 mm	5.71 "	1.85 in	145 mm	1.18 in	OCP OTP OVP SCP
MEAN WELL USA Inc. PLN-30-15	Chassis Mount	CB cCSAus CE cURus PSE TUV	83.5 %	Wire Leads	90 VAC	-30 ░C	50 °C	10.5 V	15 V	30 Watts	Constant Current	IP64	AC DC Converter	3750 VDC	295 VAC	2 A	1	47 mm	30 mm	5.71 "	1.85 in	145 mm	1.18 in	OCP OTP OVP SCP
MEAN WELL USA Inc. PLN-30-24	Chassis Mount	CB cCSAus CE cURus PSE TUV	84 %	Wire Leads	90 VAC	-30 ░C	50 °C	16.8 V	24 V	30 Watts	Constant Current	IP64	AC DC Converter	3750 VDC	295 VAC	1.25 A	1	47 mm	30 mm	5.71 "	1.85 in	145 mm	1.18 in	OCP OTP OVP SCP
MEAN WELL USA Inc. PLN-30-20	Chassis Mount	CB cCSAus CE cURus PSE TUV	84 %	Wire Leads	90 VAC	-30 ░C	50 °C	14 V	20 V	30 Watts	Constant Current	IP64	AC DC Converter	3750 VDC	295 VAC	1.5 A	1	47 mm	30 mm	5.71 "	1.85 in	145 mm	1.18 in	OCP OTP OVP SCP
