8P1P009 Series
Manufacturer: NorComp Inc.
Beta
⌘K
CIRCULAR CONNECTOR, QUIK-LOQ 8P1P SERIES, CABLE MOUNT PLUG, 9 CONTACTS, SOLDER PIN, PUSH-PULL
| Part | Voltage Rating | Insert Material | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type | Contact Material | Shielding | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Ingress Protection | Color | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Mating | Shell Material | Current Rating (Amps) | Orientation | Primary Material | Mounting Type | Connector Type | Mounting Feature | Termination | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

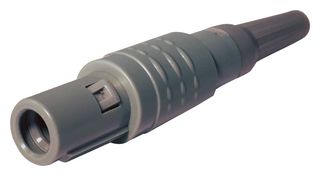

 NorComp Inc. | 333 V | Polyphenylene Sulfide (PPS) | 9 | 7 µin | 0.178 µm | Push-Pull | Copper Alloy | Unshielded | 0.197 in | 4 mm | 0.157 in | 5 mm | IP50 - Dust Protected | Gray Yellow | 120 °C | -20 ░C | Gold | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | 3 A | Keyed | Plastic | Free Hanging (In-Line) | Plug Male Pins | |||

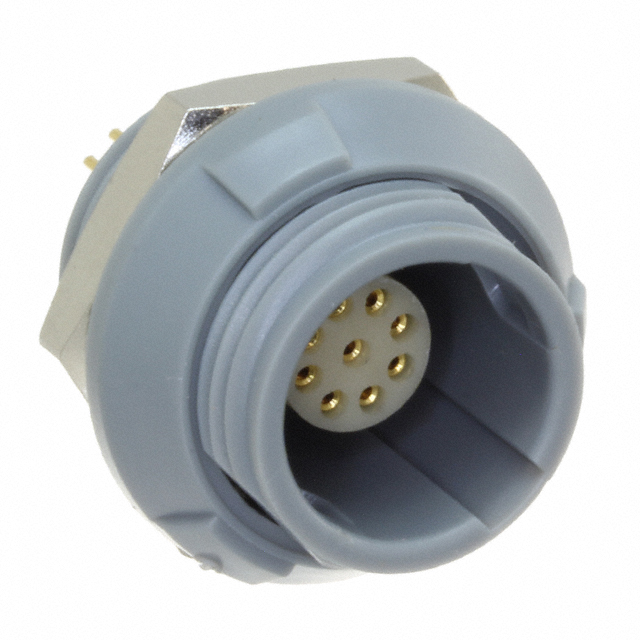

 NorComp Inc. | 333 V | Polyphenylene Sulfide (PPS) | 9 | 7 µin | 0.178 µm | Push-Pull | Copper Alloy | Unshielded | IP50 - Dust Protected | 120 °C | -20 ░C | Gold | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | 3 A | Keyed | Plastic | Panel Mount Through Hole | Receptacle Female Sockets | Bulkhead - Front Side Nut | Solder | ||||||
NorComp Inc. | 333 V | Polyphenylene Sulfide (PPS) | 9 | 7 µin | 0.178 µm | Push-Pull | Copper Alloy | Unshielded | 0.236 in | 5 mm | 0.197 in | 6 mm | IP50 - Dust Protected | Gray | 120 °C | -20 ░C | Gold | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | 3 A | Keyed | Plastic | Free Hanging (In-Line) | Plug Male Pins | |||
 NorComp Inc. | 333 V | Polyphenylene Sulfide (PPS) | 9 | 7 µin | 0.178 µm | Push-Pull | Copper Alloy | Unshielded | IP50 - Dust Protected | 120 °C | -20 ░C | Gold | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | 3 A | Keyed | Plastic | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | Bulkhead - Front Side Nut | Solder | ||||||
 NorComp Inc. | 333 V | Polyphenylene Sulfide (PPS) | 9 | 7 µin | 0.178 µm | Push-Pull | Copper Alloy | Unshielded | IP50 - Dust Protected | Blue Gray | 120 °C | -20 ░C | Gold | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | 3 A | Keyed | Plastic | Panel Mount | Receptacle Female Sockets | Bulkhead - Front Side Nut | ||||||
 NorComp Inc. | 333 V | Polyphenylene Sulfide (PPS) | 9 | 7 µin | 0.178 µm | Push-Pull | Copper Alloy | Unshielded | IP50 - Dust Protected | Gray | 120 °C | -20 ░C | Gold | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | 3 A | Keyed | Plastic | Panel Mount | Receptacle Female Sockets | Bulkhead - Front Side Nut | ||||||
 NorComp Inc. | 333 V | Polyphenylene Sulfide (PPS) | 9 | 7 µin | 0.178 µm | Push-Pull | Copper Alloy | Unshielded | IP50 - Dust Protected | Gray | 120 °C | -20 ░C | Gold | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | 3 A | Keyed | Plastic | Panel Mount Through Hole | Receptacle Female Sockets | Bulkhead - Front Side Nut | Solder | |||||
 NorComp Inc. | 333 V | Polyphenylene Sulfide (PPS) | 9 | 7 µin | 0.178 µm | Push-Pull | Copper Alloy | Unshielded | 0.236 in | 5 mm | 0.197 in | 6 mm | IP50 - Dust Protected | Gray Green | 120 °C | -20 ░C | Gold | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | 3 A | Keyed | Plastic | Free Hanging (In-Line) | Plug Male Pins | Backshell Strain Relief | ||
NorComp Inc. | 333 V | Polyphenylene Sulfide (PPS) | 9 | 7 µin | 0.178 µm | Push-Pull | Copper Alloy | Unshielded | 0.157 in | 2.2 mm | 0.087 in | 3.99 mm | IP50 - Dust Protected | Blue Gray | 120 °C | -20 ░C | Gold | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | 3 A | Keyed | Plastic | Free Hanging (In-Line) | Plug Male Pins | |||
 NorComp Inc. | 333 V | Polyphenylene Sulfide (PPS) | 9 | 7 µin | 0.178 µm | Push-Pull | Copper Alloy | Unshielded | 0.157 in | 2.2 mm | 0.087 in | 3.99 mm | IP50 - Dust Protected | Gray | 120 °C | -20 ░C | Gold | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | 3 A | Keyed | Plastic | Free Hanging (In-Line) | Plug Male Pins | Backshell Strain Relief |
