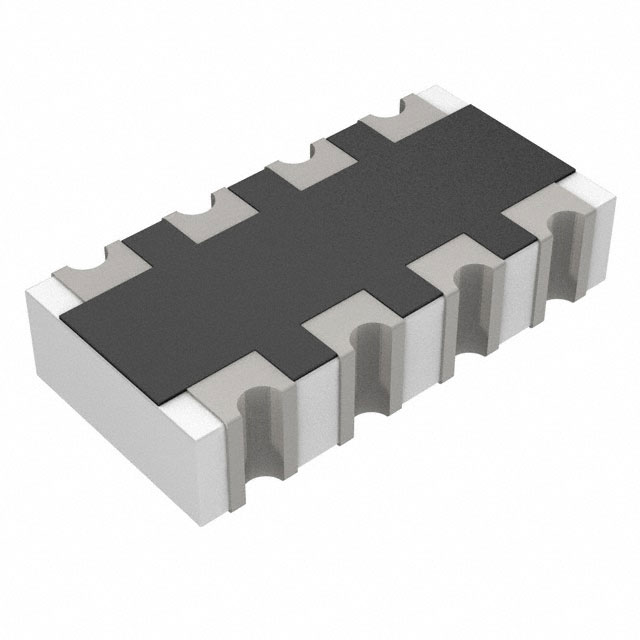

TC124MJR Series

Manufacturer: YAGEO

Catalog

RESISTOR CHIP

Part	Mounting Type	Resistance (Ohms)	Number of Resistors	Power Per Element	Tolerance	Number of Pins	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Circuit Type	Applications	Supplier Device Package	Height - Seated (Max) [Max]	Height - Seated (Max)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Temperature Coefficient
YAGEO TC124MJR-1330RL	Surface Mount	30 Ohms	4	62.5 mW	5 %	8	0804 Concave Long Side Terminals	-55 C	125 °C	Isolated	DDRAM SDRAM	0804	0.02 in	0.5 mm	0.039 in	1 mm	0.079 in	2 mm	200 ppm/°C
YAGEO TC124MJR-0722RL	Surface Mount	22 Ohms	4	62.5 mW	5 %	8	0804 Concave Long Side Terminals	-55 C	125 °C	Isolated	DDRAM SDRAM	0804	0.02 in	0.5 mm	0.039 in	1 mm	0.079 in	2 mm	200 ppm/°C
YAGEO TC124MJR-1322RL	Surface Mount	22 Ohms	4	62.5 mW	5 %	8	0804 Concave Long Side Terminals	-55 C	125 °C	Isolated	DDRAM SDRAM	0804	0.02 in	0.5 mm	0.039 in	1 mm	0.079 in	2 mm	200 ppm/°C
