3190 Series

Catalog

TERMINAL,PIDG R 16-14 10

Part	Features	Color	Contact Material	Mounting Type	Thickness	Thickness	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Width - Outer Edges [x]	Width - Outer Edges [x]	Stud/Tab Size	Contact Finish	Termination	Material - Insulation	Length - Overall [x]	Length - Overall [x]	Terminal Type	Insulation	Width - Outer Edges [y]	Width - Outer Edges [y]

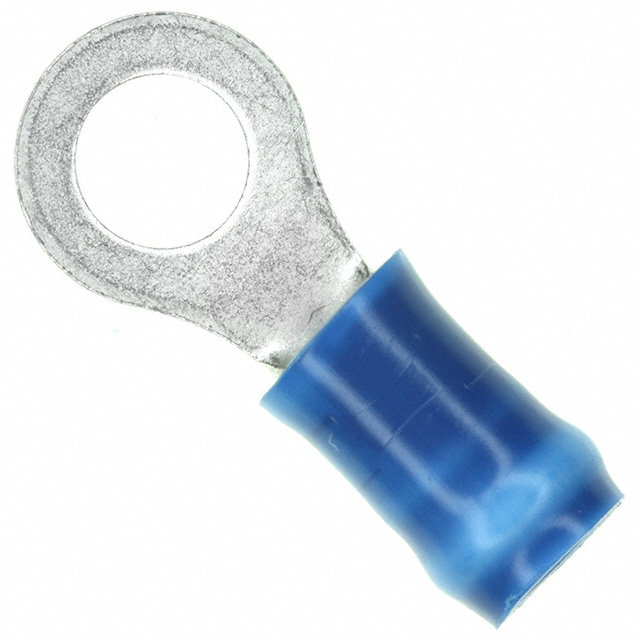

TE Connectivity Raychem Cable Protection 31903	Serrated Termination	Blue	Copper	Free Hanging (In-Line)	0.033 in	0.84 mm	0.115 in 2.92 mm	0.17 " 4.32 mm	0.343 in	8.71 mm	10 Stud	Tin	Crimp	Vinyl	0.859 in	21.82 mm	Circular	Insulated

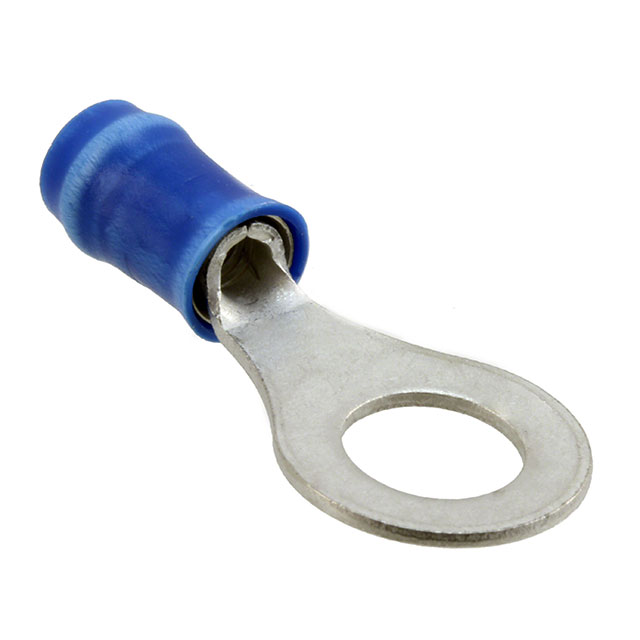

TE Connectivity Raychem Cable Protection 31906	Serrated Termination	Blue	Copper	Free Hanging (In-Line)	0.031 in	0.79 mm	0.115 in 2.92 mm	0.17 " 4.32 mm			0.25 Stud	Tin	Crimp	Poly-Vinyl Chloride (PVC)			Circular	Insulated	11.91 mm	0.469 in
