TBU-02 Series

Manufacturer: Adam Tech

Catalog

TERMINAL BLOCK, 2 POSITION

Part	Terminal Screw Finish	Mounting Type	Terminal Screw Material	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Material - Insulation	Pitch	Pitch	Number of Rows	Wire Gauge [Min]	Wire Gauge [Max]	Number of Circuits	Bottom Termination	Number of Wire Entries	Terminal Block Type	Voltage Rating	Current Rating (Amps)	Top Termination	Features	Color	Barrier Type

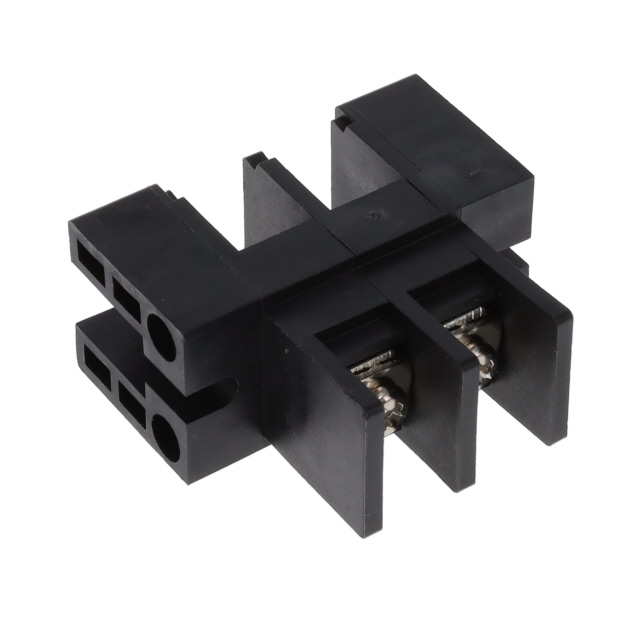

Adam Tech TBU-02-W2	Nickel	Chassis Panel	Steel	130 °C	-40 C	UL94 V-0	Polybutylene Terephthalate (PBT)	0.512 in	13 mm	1	8 AWG	22 AWG	2	Screw	2	Barrier Block	600 V	50 A	Screws with Captive Plate	Flange	Black	2 Wall (Dual)

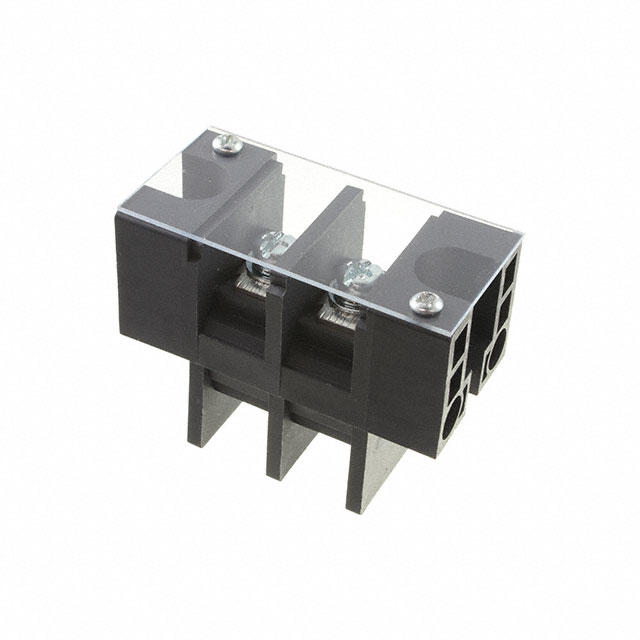

Adam Tech TBU-02-W3-CCS	Nickel	Chassis Panel	Steel	130 °C	-40 C	UL94 V-0	Polybutylene Terephthalate (PBT)	0.63 in	16 mm	1	6 AWG	14 AWG	2	Screw	2	Barrier Block	600 V	65 A	Screws	Flange	Black	2 Wall (Dual)
Adam Tech TBU-02-W1		Chassis Panel	Steel	130 °C	-40 C	UL94 V-0	Polybutylene Terephthalate (PBT)	0.433 in	11 mm	1	10 AWG	22 AWG	2	Screw	2	Barrier Block	300 VDC	30 A	Screws with Captive Plate	Flange	Black	2 Wall (Dual)

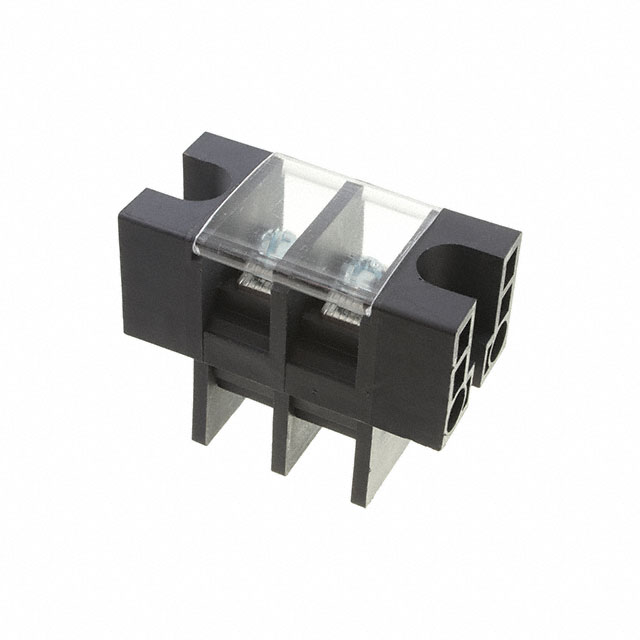

Adam Tech TBU-02-W3-CC	Nickel	Chassis Panel	Steel	130 °C	-40 C	UL94 V-0	Polybutylene Terephthalate (PBT)	0.63 in	16 mm	1	6 AWG	14 AWG	2	Screw	2	Barrier Block	600 V	65 A	Screws	Flange	Black	2 Wall (Dual)
