170725 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

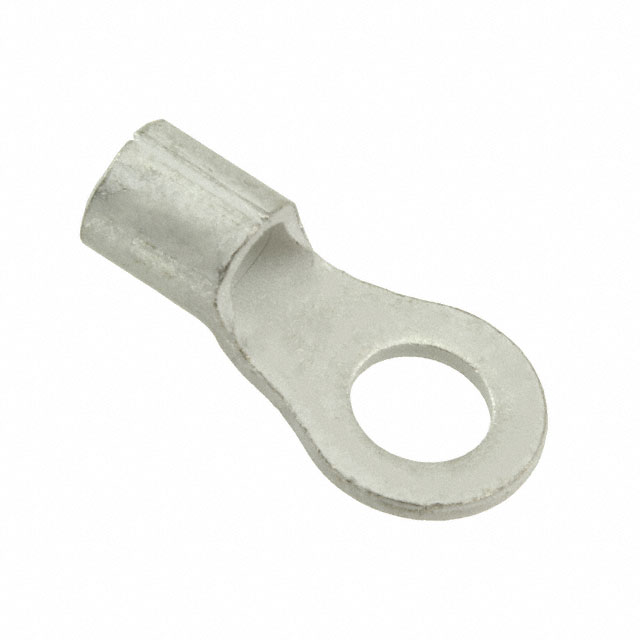

CONN RING CIRC 10-12AWG M5 CRIMP
| Part | Thickness | Thickness | Width - Outer Edges [y] | Width - Outer Edges [y] | Insulation | Wire Gauge [Max] | Wire Gauge [Min] | Length - Overall [x] | Length - Overall [x] | Contact Finish | Terminal Type | Stud/Tab Size | Mounting Type | Termination | Contact Material | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.99 mm | 0.039 in | 9.5 mm | 0.374 in | Non-Insulated | 12 AWG | 10 AWG | 0.787 " | 20 mm | Tin | Circular | M5 Stud | Free Hanging (In-Line) | Crimp | Copper | Serrated Termination |
