L77SDBH25 Series

Manufacturer: Amphenol ICC (Commercial Products)

Catalog

CONN D-SUB RCPT 25POS VERT SLDR

Part	Contact Material	Contact Form	Color	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Material Flammability Rating	Flange Feature	Current Rating (Amps)	Contact Type	Contact Finish	Shell Size, Connector Layout	Shell Size, Connector Layout [x]	Termination	Mounting Type	Number of Rows [custom]	Features	Connector Style	Connector Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge

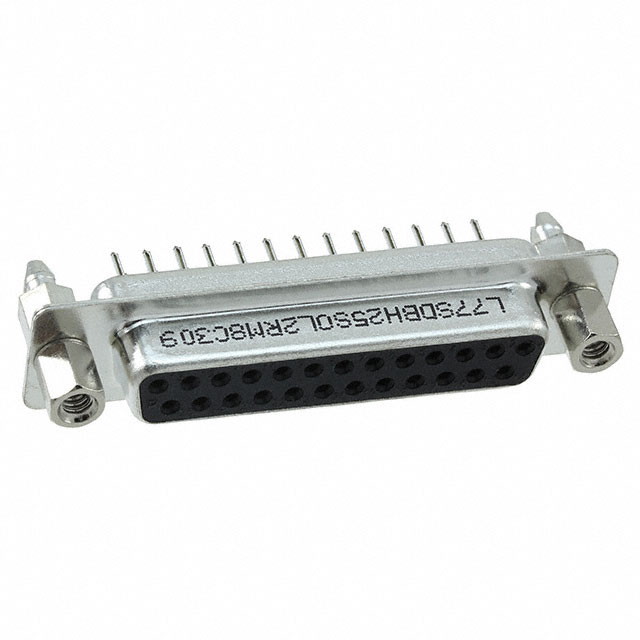

Amphenol ICC (Commercial Products) L77SDBH25SOL2RM8C309	Phosphor Bronze	Stamped	Black	Thermoplastic Glass Filled	-55 C	125 °C	250 V	UL94 V-0	Board Side (4-40) Mating Side Female Screwlock (4-40)	3 A	Signal	Gold	B DB	3	Solder	Through Hole	2	Board Lock	D-Sub	Receptacle Female Sockets	25	30 Áin	0.76 Ám
Amphenol ICC (Commercial Products) L77SDBH25SOL2RM5G	Phosphor Bronze	Stamped	Black	Thermoplastic Glass Filled	-55 C	125 °C	250 V	UL94 V-0	Board Side (4-40)	3 A	Signal	Gold	B DB	3	Solder	Through Hole	2	Board Lock	D-Sub	Receptacle Female Sockets	25			Flash

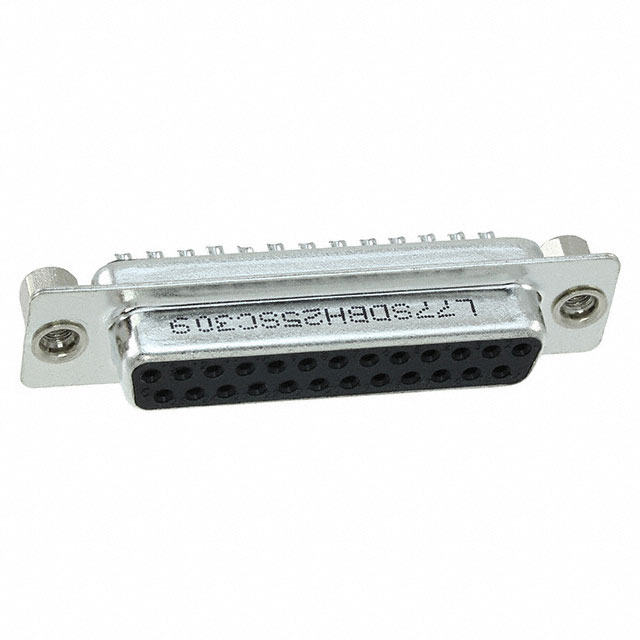

Amphenol ICC (Commercial Products) L77SDBH25SC309	Brass	Stamped	Black	Thermoplastic Glass Filled	-55 C	105 ░C	250 V	UL94 V-0	Cable Side (4-40)	3 A	Signal	Gold	B DB	3		Free Hanging (In-Line)	2		D-Sub	Receptacle Female Sockets	25	30 Áin	0.76 Ám		20 AWG
Amphenol ICC (Commercial Products) L77SDBH25SVF	Brass	Stamped	Black	Thermoplastic Glass Filled	-55 C	105 ░C	250 V	UL94 V-0	Cable Side (4-40) Mating Side Female Screwlock (4-40)	3 A	Signal	Gold	B DB	3		Free Hanging (In-Line)	2		D-Sub	Receptacle Female Sockets	25			Flash	20 AWG
Amphenol ICC (Commercial Products) L77SDBH25SOL2RM8GC309	Phosphor Bronze	Stamped	Black	Thermoplastic Glass Filled	-55 C	125 °C	250 V	UL94 V-0	Board Side (4-40) Mating Side Female Screwlock (4-40)	3 A	Signal	Gold	B DB	3	Solder	Through Hole	2	Board Lock	D-Sub	Receptacle Female Sockets	25	30 Áin	0.76 Ám

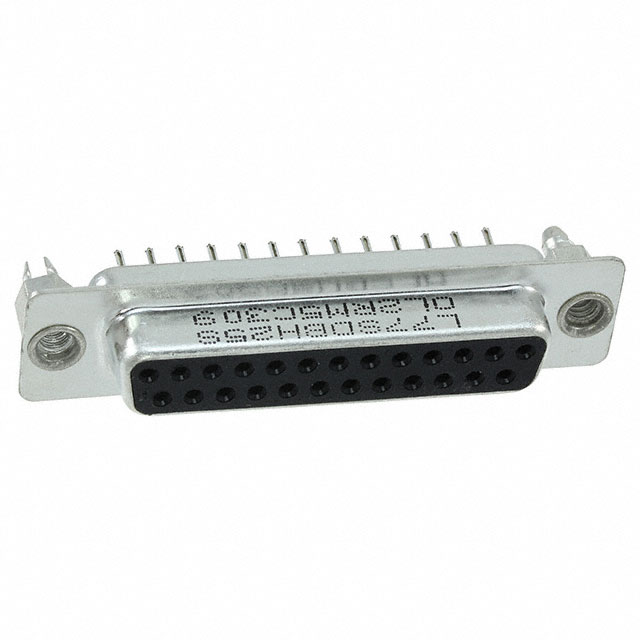

Amphenol ICC (Commercial Products) L77SDBH25SOL2RM5C309	Phosphor Bronze	Stamped	Black	Thermoplastic Glass Filled	-55 C	125 °C	250 V	UL94 V-0	Board Side (4-40)	3 A	Signal	Gold	B DB	3	Solder	Through Hole	2	Board Lock	D-Sub	Receptacle Female Sockets	25	30 Áin	0.76 Ám

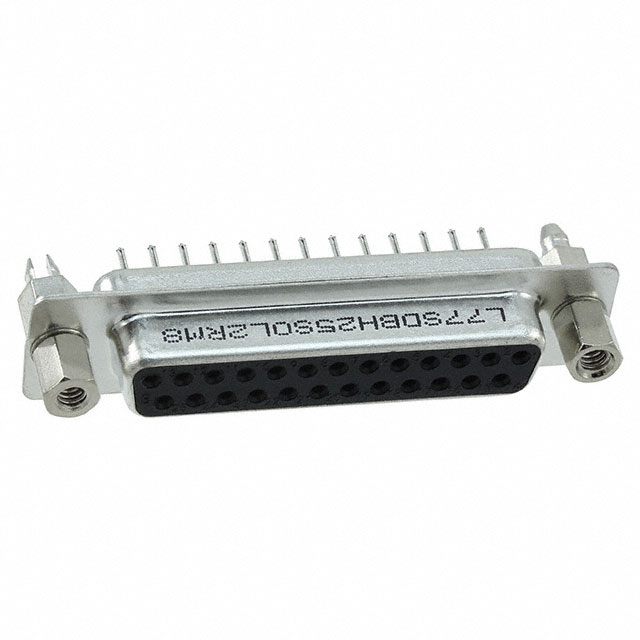

Amphenol ICC (Commercial Products) L77SDBH25SOL2RM8	Phosphor Bronze	Stamped	Black	Thermoplastic Glass Filled	-55 C	125 °C	250 V	UL94 V-0	Board Side (4-40) Mating Side Female Screwlock (4-40)	3 A	Signal	Gold	B DB	3	Solder	Through Hole	2	Board Lock	D-Sub	Receptacle Female Sockets	25			Flash

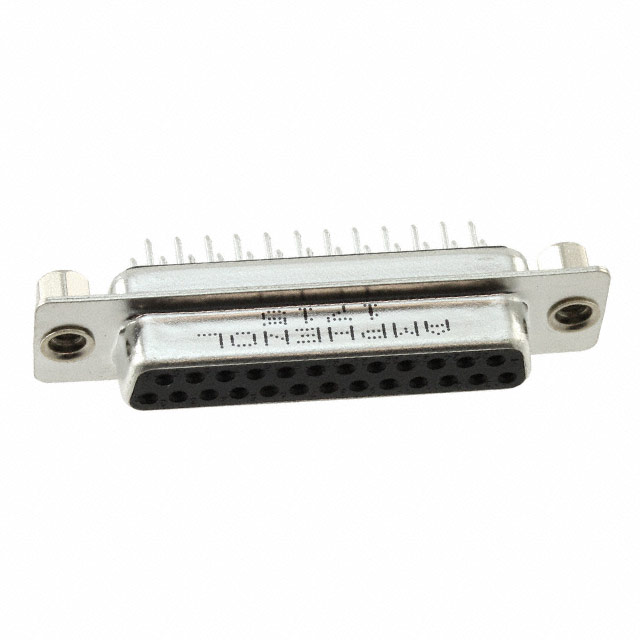

Amphenol ICC (Commercial Products) L77SDBH25SOL2	Phosphor Bronze	Stamped	Black	Thermoplastic Glass Filled	-55 C	125 °C	250 V	UL94 V-0	Board Side (4-40)	3 A	Signal	Gold	B DB	3	Solder	Through Hole	2		D-Sub	Receptacle Female Sockets	25			Flash
