TPS61187 Series
Manufacturer: Texas Instruments
Beta
⌘K
WLED DRIVER FOR NOTEBOOKS WITH PWM INTERFACE AND AUTO PHASE SHIFT FUNCTION
| Part | Number of Outputs | Voltage - Supply (Max) [Max] | Type | Voltage - Output | Dimming | Topology | Mounting Type | Internal Switch(s) | Supplier Device Package | Current - Output / Channel | Package / Case | Applications | Frequency | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply (Min) [Min] | Outputs and Type | Outputs and Type | Supplied Contents | Voltage - Input [Max] | Voltage - Input [Min] | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 6 | 24 V | DC DC Regulator | 38 V | PWM | Step-Up (Boost) | Surface Mount | 20-QFN (4x4) | 30 mA | 20-WFQFN Exposed Pad | Backlight | 1 MHz | 85 C | -40 ¯C | 4.5 V | ||||||||

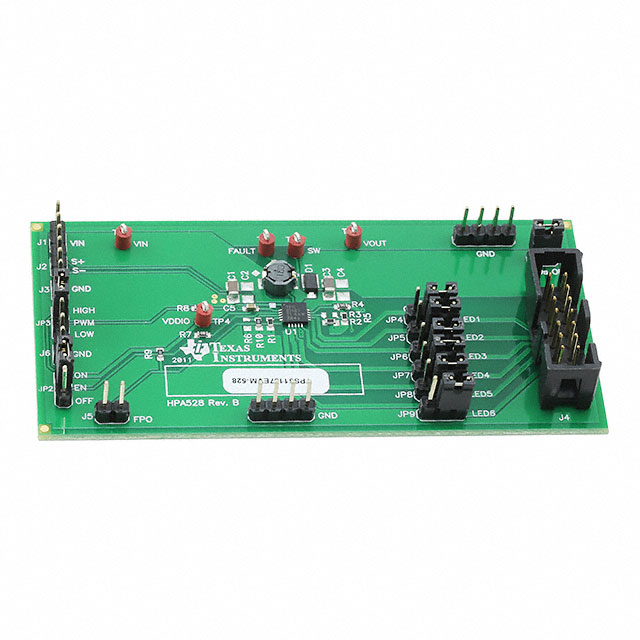

 Texas Instruments | 38 V | 120 mA | 6 | 6 Non-Isolated Outputs Non-Isolated | Board(s) | 24 V | 4.5 V | TPS61187 | Board(s) | ||||||||||||||
Texas Instruments | 6 | 24 V | DC DC Regulator | 38 V | PWM | Step-Up (Boost) | Surface Mount | 20-QFN (4x4) | 30 mA | 20-WFQFN Exposed Pad | Backlight | 1 MHz | 85 C | -40 ¯C | 4.5 V |
