AX01R100 Series

Catalog

RIGID SIDE B2B CONNECTOR, 100 PO

Part	Connector Type	Features	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board	Pitch	Pitch	Number of Rows [custom]	Contact Finish	Mounting Type	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]

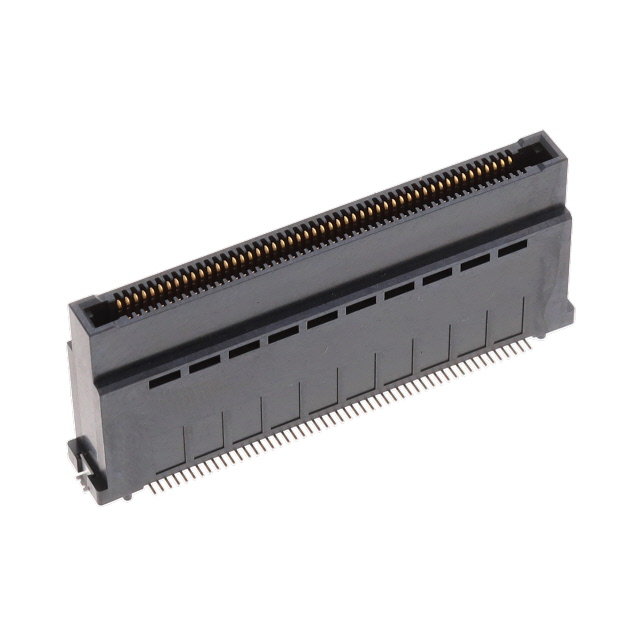

JAE Electronics AX01R100VANBR200	Plug Outer Shroud Contacts	Board Guide	100	0.1 Ám	4 Áin	0.655 in	16.64 mm	0.64 mm	0.025 in	2	Gold	Surface Mount

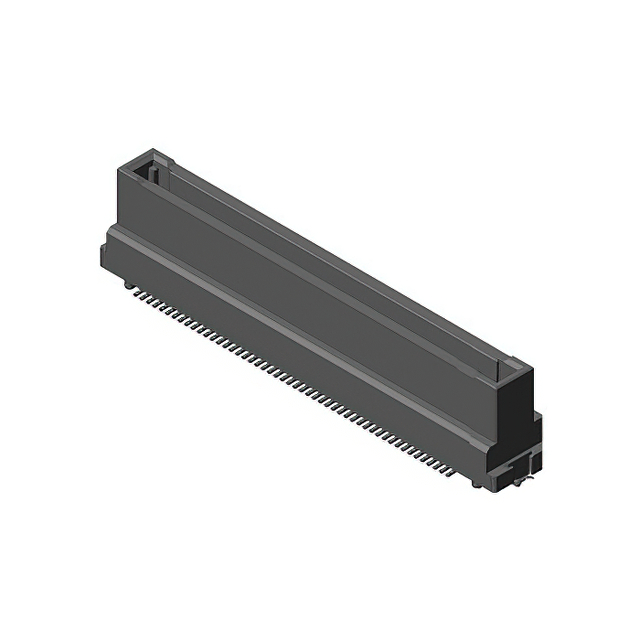

JAE Electronics AX01R100VADBR500	Plug Outer Shroud Contacts	Board Guide Solder Retention	100	0.1 Ám	4 Áin	0.339 in	8.6 mm	0.64 mm	0.025 in	2	Gold	Surface Mount	10 mm 16 mm 22 mm

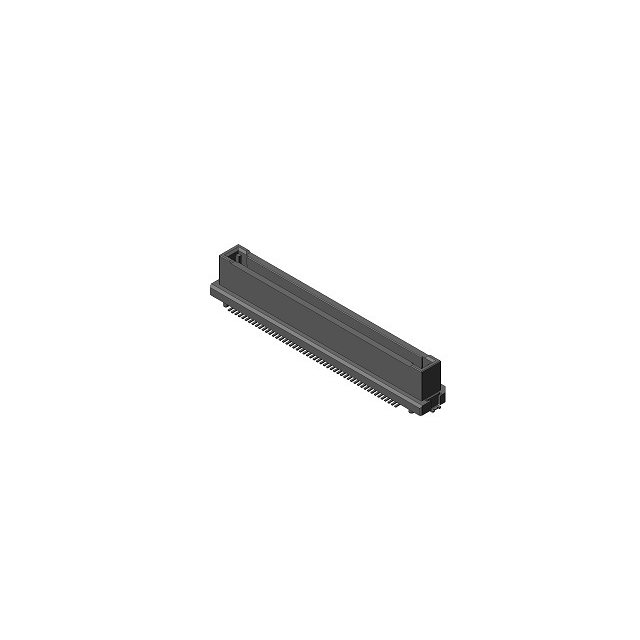

JAE Electronics AX01R100VABBR600	Plug Outer Shroud Contacts	Board Guide Solder Retention	100	0.1 Ám	4 Áin			0.64 mm	0.025 in	2	Gold	Surface Mount		6.6 mm	0.26 in
