FZTSPX Series

Catalog

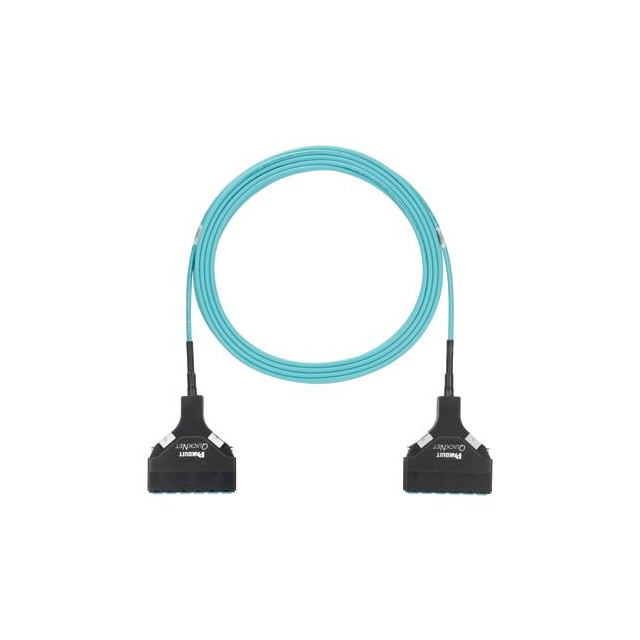

OM4 12F TRUNK OFNP LC CASS/LC CASS STD P

Part	Return Loss	Insertion Loss	Operating Temperature [Min]	Operating Temperature [Max]	Bend Radius [radius]	2nd Connector	Cable Type	Cable Diameter [diameter]	Cable Diameter [diameter]	Fiber Type	Length - Overall [x]	Length - Overall [x]	Type	Length - Overall	Length - Overall
Panduit Corp FZTSPXNXNSNF045	26 dB	0.5 dB	-20 ░C	70 °C	100 mm	LC	Trunk	0.39 in	9.9 mm	50/125	45 ft	13.7 m	Multimode OM3
Panduit Corp FZTSPXNXNSNF090	26 dB	0.5 dB	-20 ░C	70 °C	100 mm	LC	Trunk	0.39 in	9.9 mm	50/125			Multimode OM3	27.4 m	90 ft
Panduit Corp FZTSPXNXNSNF035	26 dB	0.5 dB	-20 ░C	70 °C	100 mm	LC	Trunk	0.39 in	9.9 mm	50/125			Multimode OM3	10.7 m	35 '
Panduit Corp FZTSPXNXNSNF055	26 dB	0.5 dB	-20 ░C	70 °C	100 mm	LC	Trunk	0.39 in	9.9 mm	50/125	55 ft	16.8 m	Multimode OM3
Panduit Corp FZTSPXNXNSNF085	26 dB	0.5 dB	-20 ░C	70 °C	100 mm	LC	Trunk	0.39 in	9.9 mm	50/125	85 ft	25.9 m	Multimode OM3
Panduit Corp FZTSPXNXNSNF080	26 dB	0.5 dB	-20 ░C	70 °C	100 mm	LC	Trunk	0.39 in	9.9 mm	50/125	80 '	24.4 m	Multimode OM3
Panduit Corp FZTSPXNXNSNF020	26 dB	0.5 dB	-20 ░C	70 °C	100 mm	LC	Trunk	0.39 in	9.9 mm	50/125	20 ft	6.1 m	Multimode OM3
Panduit Corp FZTSPXNXNSNF065	26 dB	0.5 dB	-20 ░C	70 °C	100 mm	LC	Trunk	0.39 in	9.9 mm	50/125	65 ft	19.8 m	Multimode OM3
Panduit Corp FZTSPXNXNSNF010	26 dB	0.5 dB	-20 ░C	70 °C	100 mm	LC	Trunk	0.39 in	9.9 mm	50/125			Multimode OM3	3.1 m	10 ft
Panduit Corp FZTSPXNXNSNF015	26 dB	0.5 dB	-20 ░C	70 °C	100 mm	LC	Trunk	0.39 in	9.9 mm	50/125	180 in	4.6 m	Multimode OM3
