5682212 Series

Manufacturer: DIALIGHT

Catalog

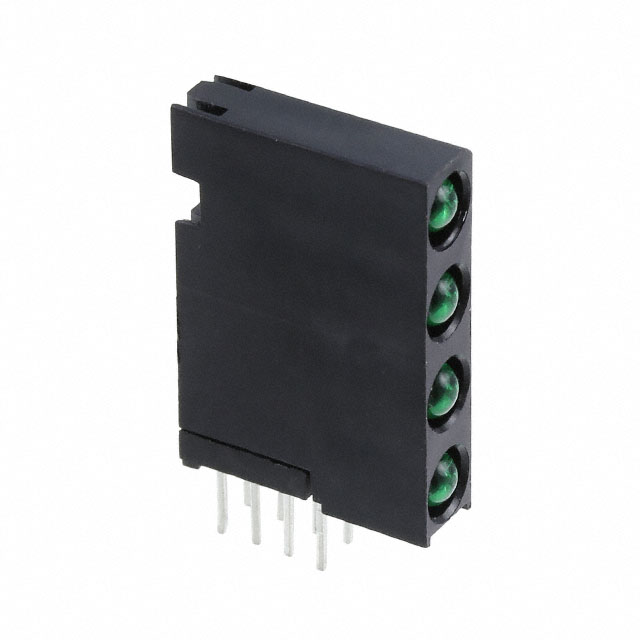

LED CBI 3MM QUAD GREEN BACKLIT

Part	Lens Type	Millicandela Rating	Lens Style	Current	Lens Size	Lens Size	Voltage Rating	Wavelength - Peak	Configuration	Mounting Type	Viewing Angle	Color	Lens Size [diameter]	Current	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]
DIALIGHT 5682212812F
DIALIGHT 5682212233F	Tinted	30 mcd 50 mcd	Round with Domed Top	20 mA	3 mm	T-1	2.1 V	565 nm 585 nm	4 High	Right Angle Through Hole	45 °	Green (x 2) Yellow (x 2)
DIALIGHT 5682212323F	Tinted	30 mcd 50 mcd	Round with Domed Top	20 mA			2.1 V	565 nm 585 nm	4 High	Right Angle Through Hole	45 °	Green (x 2) Yellow (x 2)	3 mm
DIALIGHT 5682212809F	Tinted	50 mcd	Round with Domed Top	10 mA	3 mm	T-1	2.1 V	565 nm	4 High	Right Angle Through Hole	45 °	Green
DIALIGHT 5682212131F	Tinted		Round with Domed Top		3 mm	T-1	2 V 2.1 V 2.1 V	565 nm 585 nm 635 nm	4 High	Right Angle Through Hole	45 °	Green (x 1) Red (x 2) Yellow (x 1)		20mA Yellow 30mA Green 30mA Red
DIALIGHT 5682212113F	Tinted		Round with Domed Top		3 mm	T-1	2 V 2.1 V 2.1 V	565 nm 585 nm 635 nm	4 High	Right Angle Through Hole	45 °	Green (x 1) Red (x 2) Yellow (x 1)		20mA Yellow 30mA Green 30mA Red
DIALIGHT 5682212811F
DIALIGHT 5682212329F	Tinted		Round with Domed Top	20 mA 30 mA 30 mA			2.1 V 2.1 V 3.5 V	470 nm 565 nm 585 nm	4 High	Right Angle Through Hole	45 °	Blue (x 1) Green (x 2) Yellow (x 1)	3 mm		210 mcd	50 mcd	30 mcd
DIALIGHT 5682212803F			Round with Domed Top							Right Angle Through Hole			3 mm
DIALIGHT 5682212102F	Tinted	29 mcd 50 mcd	Round with Domed Top		3 mm	T-1	2 V 2.1 V	565 nm 635 nm	4 High	Right Angle Through Hole	45 °	Blank (x 1) Green (x 2) Red (x 1)		30mA Green 30mA Red
