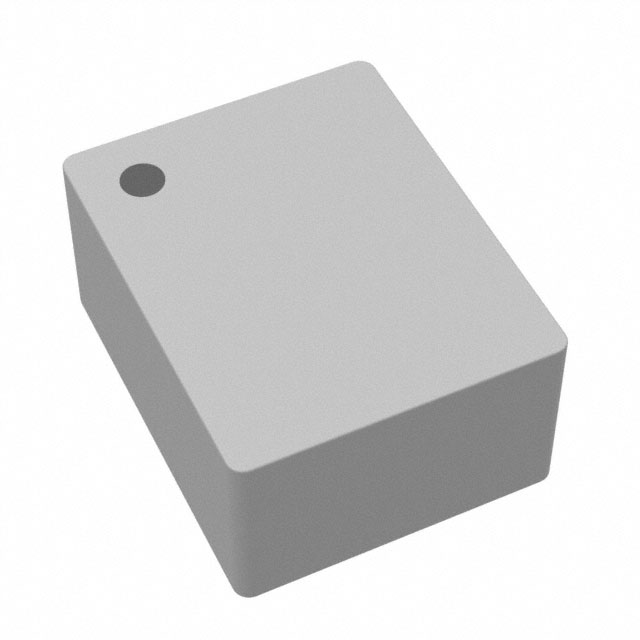

HTEX25201 Series

Catalog

FIXED IND 10UH 1.2A 399MOHM SMD

Part	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Inductance Frequency - Test	Current Rating (Amps)	Material - Core	Current - Saturation (Isat)	Package / Case	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Shielding	Tolerance	Mounting Type	Supplier Device Package	Inductance	Operating Temperature [Min]	Operating Temperature [Max]
Delta Electronics/Cyntec HTEX25201B-100MSR	399 mOhm	1.2 mm	0.047 "	1 MHz	1.2 A	Metal	1.4 A	2520 Metric	1008	2.5 mm	0.079 in	0.098 in	2 mm	Shielded	20 %	Surface Mount	1008	10 µH	-55 C	125 °C
Delta Electronics/Cyntec HTEX25201T-100MSR
Delta Electronics/Cyntec HTEX25201T-4R7MSDR
Delta Electronics/Cyntec HTEX25201B-4R7MSR	210 mOhm	1.2 mm	0.047 "	1 MHz	1.7 A	Metal	2 A	2520 Metric	1008	2.5 mm	0.079 in	0.098 in	2 mm	Shielded	20 %	Surface Mount	1008	4.7 ÁH	-55 C	125 °C
