ACB10 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN EDGE DUAL FMALE 20POS 0.050

Part	Material - Insulation	Contact Type	Mounting Type	Contact Finish	Read Out	Number of Rows [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Card Thickness	Card Thickness	Card Type	Gender	Termination	Color	Features	Contact Material	Number of Positions	Number of Positions/Bay/Row	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
Sullins Connector Solutions ACB10DHFR	Polyphenylene Sulfide (PPS)	Hairpin Bellows	Surface Mount	Gold	Dual	2	150 °C	-65 ░C	1.57 mm	0.062 in	Non Specified - Dual Edge	Female	Solder	Black	Board Lock	Beryllium Copper	20	10	30 Áin	0.76 Ám	0.05 in	1.27 mm
Sullins Connector Solutions ACB10DYFR	Polyphenylene Sulfide (PPS)	Cantilever	Surface Mount	Gold	Dual	2	150 °C	-65 ░C	1.57 mm	0.062 in	Non Specified - Dual Edge	Female	Solder	Black	Board Lock	Beryllium Copper	20	10	30 Áin	0.76 Ám	0.05 in	1.27 mm
Sullins Connector Solutions ACB10DHLD	Polyphenylene Sulfide (PPS)	Hairpin Bellows	Through Hole	Gold	Dual	2	150 °C	-65 ░C	1.57 mm	0.062 in	Non Specified - Dual Edge	Female	Solder	Black		Beryllium Copper	20	10	30 Áin	0.76 Ám	0.05 in	1.27 mm	Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "

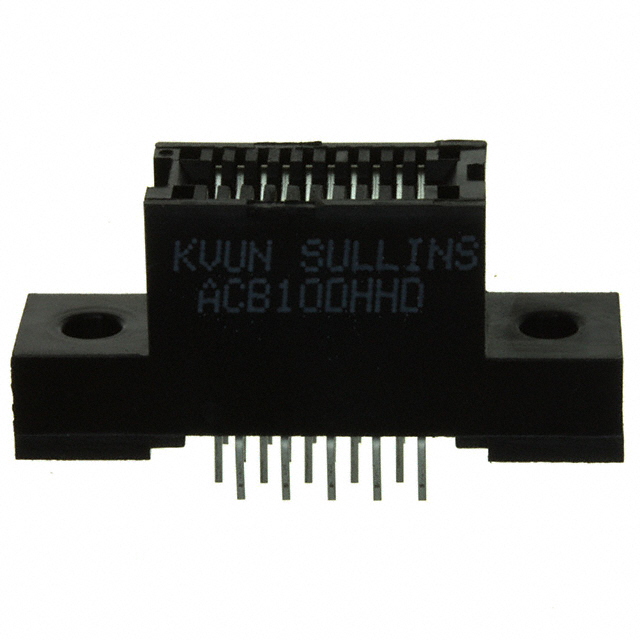

Sullins Connector Solutions ACB10DHHD	Polyphenylene Sulfide (PPS)	Hairpin Bellows	Through Hole	Gold	Dual	2	150 °C	-65 ░C	1.57 mm	0.062 in	Non Specified - Dual Edge	Female	Solder Staggered	Black		Beryllium Copper	20	10	30 Áin	0.76 Ám	0.05 in	1.27 mm	Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "
Sullins Connector Solutions ACB10DYRD	Polyphenylene Sulfide (PPS)	Cantilever	Board Edge Straddle Mount	Gold	Dual	2	150 °C	-65 ░C	1.57 mm	0.062 in	Non Specified - Dual Edge	Female	Solder	Black	Card Extender	Beryllium Copper	20	10	30 Áin	0.76 Ám	0.05 in	1.27 mm	Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "
Sullins Connector Solutions ACB10DHBD	Polyphenylene Sulfide (PPS)	Hairpin Bellows	Right Angle Through Hole	Gold	Dual	2	150 °C	-65 ░C	1.57 mm	0.062 in	Non Specified - Dual Edge	Female	Solder Staggered	Black		Beryllium Copper	20	10	30 Áin	0.76 Ám	0.05 in	1.27 mm	Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "
Sullins Connector Solutions ACB10DHHT	Polyphenylene Sulfide (PPS)	Hairpin Bellows	Through Hole	Gold	Dual	2	150 °C	-65 ░C	1.57 mm	0.062 in	Non Specified - Dual Edge	Female	Solder Staggered	Black		Beryllium Copper	20	10	30 Áin	0.76 Ám	0.05 in	1.27 mm	4-40 Flush Mount Threaded Insert Top Opening
Sullins Connector Solutions ACB10DHNR	Polyphenylene Sulfide (PPS)	Hairpin Bellows	Through Hole	Gold	Dual	2	150 °C	-65 ░C	1.57 mm	0.062 in	Non Specified - Dual Edge	Female	Solder	Black	Board Lock	Beryllium Copper	20	10	30 Áin	0.76 Ám	0.05 in	1.27 mm
Sullins Connector Solutions ACB10DHFT	Polyphenylene Sulfide (PPS)	Hairpin Bellows	Surface Mount	Gold	Dual	2	150 °C	-65 ░C	1.57 mm	0.062 in	Non Specified - Dual Edge	Female	Solder	Black		Beryllium Copper	20	10	30 Áin	0.76 Ám	0.05 in	1.27 mm	4-40 Flush Mount Threaded Insert Top Opening
Sullins Connector Solutions ACB10DHBS	Polyphenylene Sulfide (PPS)	Hairpin Bellows	Right Angle Through Hole	Gold	Dual	2	150 °C	-65 ░C	1.57 mm	0.062 in	Non Specified - Dual Edge	Female	Solder Staggered	Black		Beryllium Copper	20	10	30 Áin	0.76 Ám	0.05 in	1.27 mm	Side Mount Opening Unthreaded	3.18 mm	0.125 "
