FTR Series

Manufacturer: Adam Tech

Catalog

PLUG FLAT CABLE IDC 26P 2.54MM P

Part	Number of Positions Loaded	Features	Board-Side Pitch	Board-Side Pitch	Row Spacing	Row Spacing	Contact Finish	Connector Type	Cable Pitch	Cable Pitch	Number of Positions	Cable Termination	Color	Number of Rows [custom]	Wire Gauge	Mounting Type

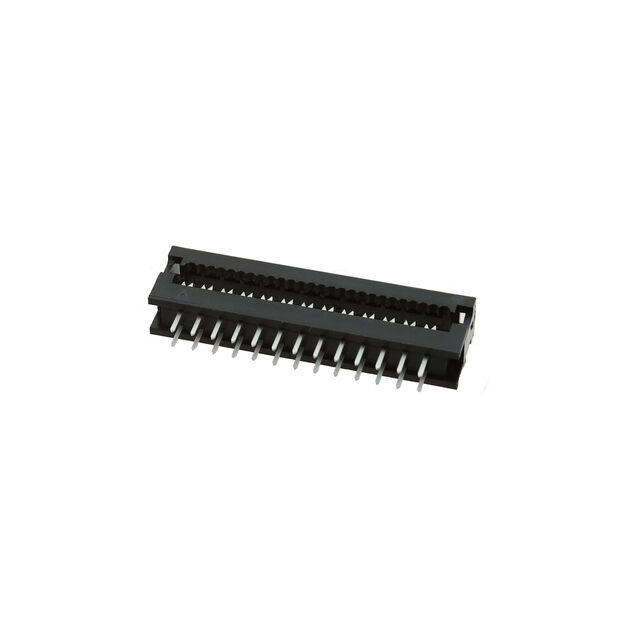

Adam Tech FTR-26-T	All	Feed Through	2.54 mm	0.1 "	2.54 mm	0.1 "	Tin	DIP Header Ribbon Cable	1.27 mm	0.05 in	26	IDC	Black	2	28 AWG	Through Hole

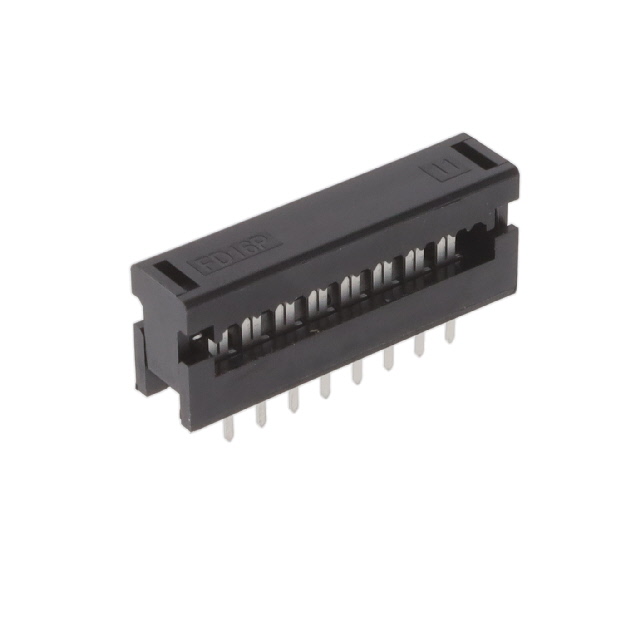

Adam Tech FTR-16-T	All	Feed Through	2.54 mm	0.1 "	2.54 mm	0.1 "	Tin	DIP Header Ribbon Cable	1.27 mm	0.05 in	16	IDC	Black	2	28 AWG	Through Hole
Adam Tech FTR-40-T	All	Feed Through	2.54 mm	0.1 "	2.54 mm	0.1 "	Tin	DIP Header Ribbon Cable	1.27 mm	0.05 in	40	IDC	Black	2	28 AWG	Through Hole
Adam Tech FTR-64-T	All	Feed Through	2.54 mm	0.1 "	2.54 mm	0.1 "	Tin	DIP Header Ribbon Cable	1.27 mm	0.05 in	64	IDC	Black	2	28 AWG	Through Hole

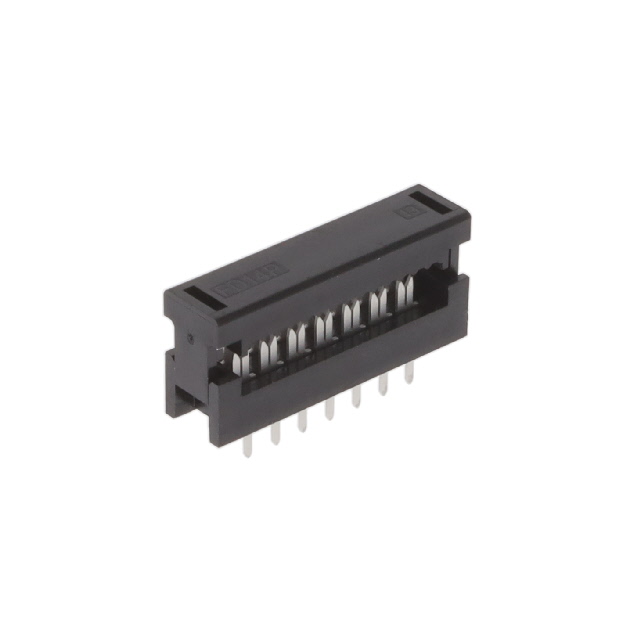

Adam Tech FTR-14-T	All	Feed Through	2.54 mm	0.1 "	2.54 mm	0.1 "	Tin	DIP Header Ribbon Cable	1.27 mm	0.05 in	14	IDC	Black	2	28 AWG	Through Hole

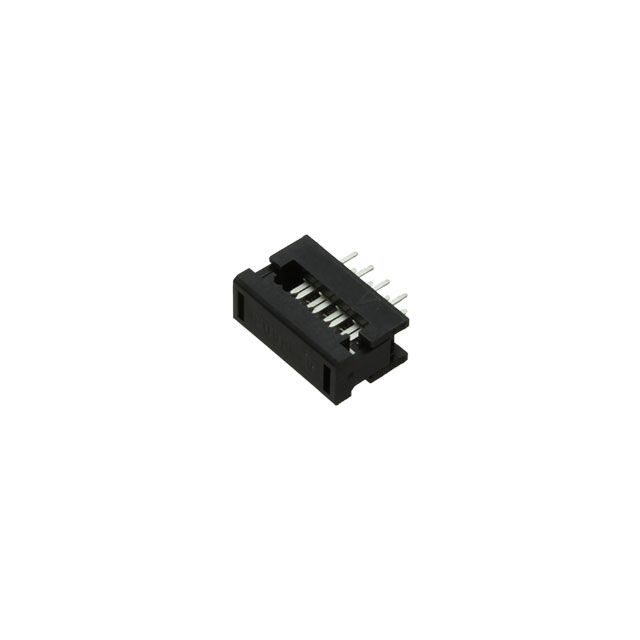

Adam Tech FTR-08-T	All	Feed Through	2.54 mm	0.1 "	2.54 mm	0.1 "	Tin	DIP Header Ribbon Cable	1.27 mm	0.05 in	8	IDC	Black	2	28 AWG	Through Hole
Adam Tech FTR-50-T	All	Feed Through	2.54 mm	0.1 "	2.54 mm	0.1 "	Tin	DIP Header Ribbon Cable	1.27 mm	0.05 in	50	IDC	Black	2	28 AWG	Through Hole
