RZE05 Series

Catalog

CONN EDGE DUAL FMALE 10POS 0.039

Part	Material - Insulation	Pitch	Pitch	Read Out	Contact Finish	Contact Type	Color	Gender	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row	Contact Material	Card Thickness	Card Thickness	Termination	Card Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Number of Positions	Features	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]
Sullins Connector Solutions RZE05DHFR	Polyphenylene Sulfide (PPS)	1 mm	0.039 in	Dual	Gold	Hairpin Bellows	Black	Female	0.25 Ám	10 Áin	5	Phosphor Bronze	1.57 mm	0.062 in	Solder	Non Specified - Dual Edge	Surface Mount	-65 ░C	125 °C	2	10	Board Lock

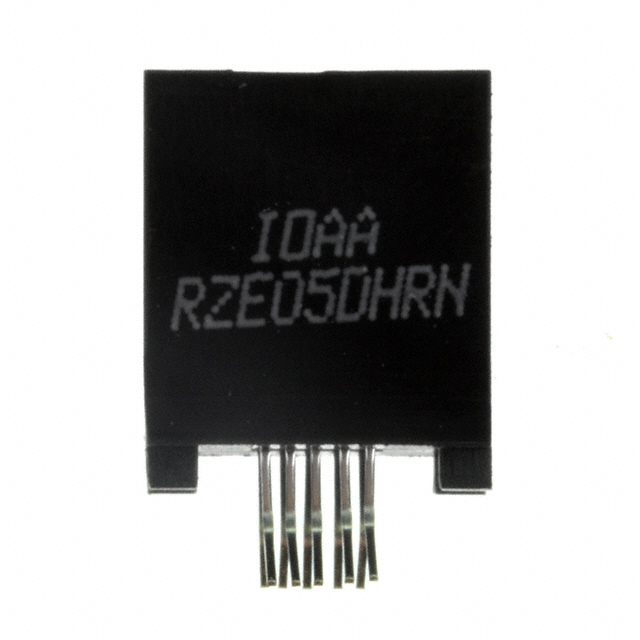

Sullins Connector Solutions RZE05DHRN	Polyphenylene Sulfide (PPS)	1 mm	0.039 in	Dual	Gold	Hairpin Bellows	Black	Female	0.25 Ám	10 Áin	5	Phosphor Bronze	1.57 mm	0.062 in	Solder	Non Specified - Dual Edge	Board Edge Straddle Mount	-65 ░C	125 °C	2	10	Card Extender

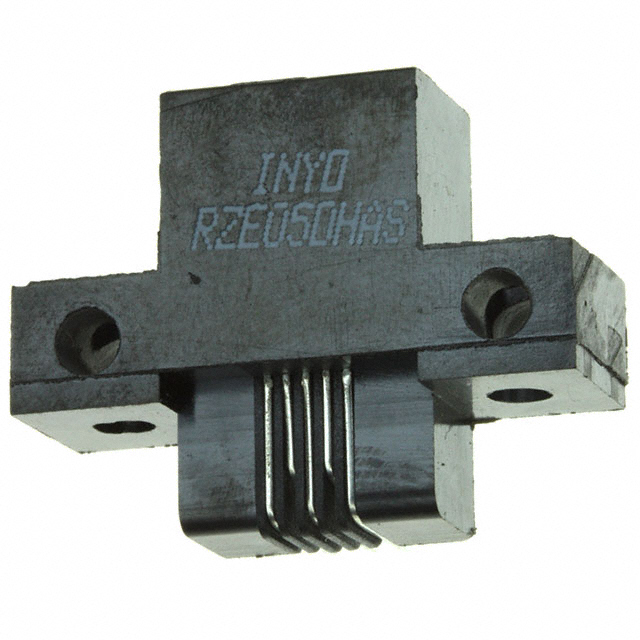

Sullins Connector Solutions RZE05DHAS	Polyphenylene Sulfide (PPS)	1 mm	0.039 in	Dual	Gold	Hairpin Bellows	Black	Female	0.25 Ám	10 Áin	5	Phosphor Bronze	1.57 mm	0.062 in	Solder Staggered	Non Specified - Dual Edge	Right Angle Through Hole	-65 ░C	125 °C	2	10		0.125 "	Side Mount Opening Unthreaded	3.18 mm

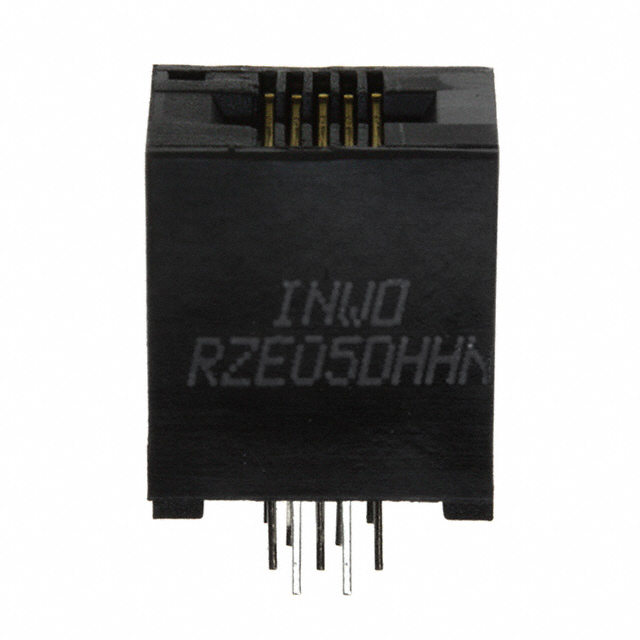

Sullins Connector Solutions RZE05DHHN	Polyphenylene Sulfide (PPS)	1 mm	0.039 in	Dual	Gold	Hairpin Bellows	Black	Female	0.25 Ám	10 Áin	5	Phosphor Bronze	1.57 mm	0.062 in	Solder Staggered	Non Specified - Dual Edge	Through Hole	-65 ░C	125 °C	2	10
