A11YDR-P Series
Manufacturer: ODU
Beta
⌘K

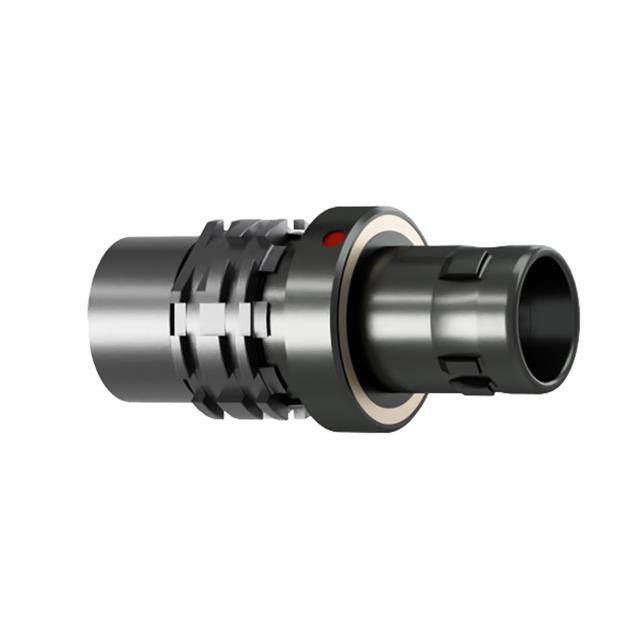

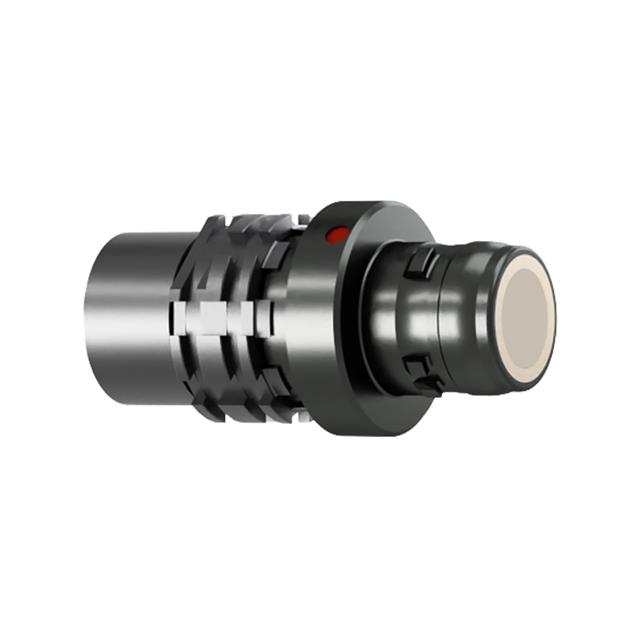

ODU AMC PLUG, BREAK APART, SZ 1,
| Part | Orientation | Backshell Material, Plating | Insert Material | Ingress Protection | Connector Type | Cable Opening | Cable Opening | Shielding | Fastening Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Applications | Shell Finish | Shell Size - Insert | Shell Material | Mounting Type | Contact Material | Number of Positions | Color | Voltage Rating | Primary Material | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Features | Contact Finish - Mating | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
D | Aluminum Ruthenium over Electroless Nickel | Polyetheretherketone (PEEK) | IP68 IP69K | Plug Male Pins | 0.256 in | 6.5 mm | Shielded | Push-Pull | 50 µin | 1.27 µm | Industrial Medical Military | Ruthenium over Electroless Nickel | 1 | Aluminum | Free Hanging (In-Line) | Copper Alloy | 14 | Silver | 200 V | Metal | 5 A | -51 °C | 125 °C | Backshell | Gold | UL94 V-0 | |
D | Aluminum Ruthenium over Electroless Nickel | Polyetheretherketone (PEEK) | IP68 IP69K | Plug Male Pins | 0.256 in | 6.5 mm | Shielded | Push-Pull | 50 µin | 1.27 µm | Industrial Medical Military | Ruthenium over Electroless Nickel | 1 | Aluminum | Free Hanging (In-Line) | Copper Alloy | 16 | Silver | 200 V | Metal | 5 A | -51 °C | 125 °C | Backshell | Gold | UL94 V-0 | |
D | Aluminum Ruthenium over Electroless Nickel | Polyetheretherketone (PEEK) | IP68 IP69K | Plug Male Pins | 0.256 in | 6.5 mm | Shielded | Push-Pull | 50 µin | 1.27 µm | Industrial Medical Military | Ruthenium over Electroless Nickel | 1 | Aluminum | Free Hanging (In-Line) | Copper Alloy | 16 | Silver | 200 V | Metal | 2 A | -51 °C | 125 °C | Backshell | Gold | UL94 V-0 |
