SFR30R Series

Catalog

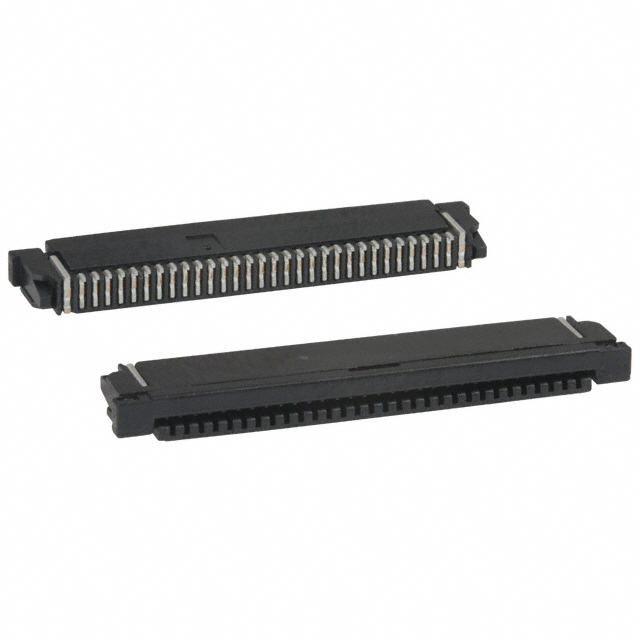

CONN FFC BOTTOM 30POS 0.8MM R/A

Part	Housing Color	Actuator Color	Locking Feature	Mounting Type	Height Above Board [z]	Height Above Board [z]	Actuator Material	Cable End Type	Connector/Contact Type	Material Flammability Rating	Flat Flex Type	Pitch	Pitch	Termination	Housing Material	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]	Contact Finish	Contact Material	Number of Positions
Amphenol ICC (FCI) SFR30R-1STE1LF	Black	Black	Slide Lock	Right Angle Surface Mount	0.098 in	2.5 mm	Polyphenylene Sulfide (PPS) Glass Filled	Straight or Tapered	Contacts Bottom	UL94 V-0	FFC FPC	0.8 mm	0.031 in	Solder	Polyphenylene Sulfide (PPS) Glass Filled	0.3 mm	0.33 mm	Tin	Phosphor Bronze	30
