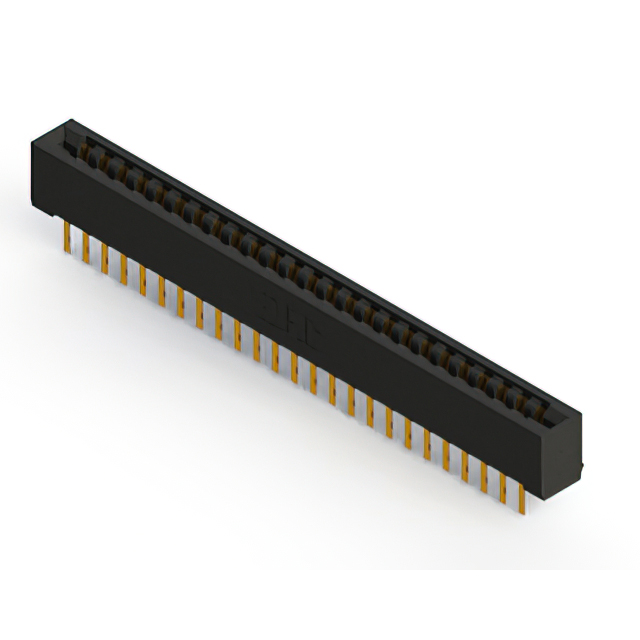

857-050 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 50POS 0.156
| Part | Termination Rows [custom] | Material - Insulation | Termination | Contact Finish Thickness | Contact Finish Thickness | Color | Number of Positions | Card Type | Contact Material | Number of Rows [custom] | Contact Finish | Number of Positions/Bay/Row | Pitch | Pitch | Card Thickness [Max] | Card Thickness [Min] | Contact Type | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Gender | Read Out | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Wire Wrap | 0.25 Ám | 10 Áin | Black | 50 | Non Specified - Dual Edge | Copper Alloy | 2 | Gold | 25 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Through Hole | 125 °C | -40 C | Female | Dual | Flush Mount M3 Threaded Insert Top Opening | |||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Solder | Black | 50 | Non Specified - Dual Edge | Copper Alloy | 2 | Tin | 25 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Board Edge Straddle Mount | 125 °C | -40 C | Female | Dual | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Card Extender | ||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Solder | Black | 50 | Non Specified - Dual Edge | Copper Alloy | 2 | Tin | 25 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Board Edge Straddle Mount | 125 °C | -40 C | Female | Dual | Floating Bobbin Flush Mount | 2.95 mm | 0.116 " | Card Extender | ||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Solder | 0.25 Ám | 10 Áin | Black | 50 | Non Specified - Dual Edge | Copper Alloy | 2 | Gold | 25 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Right Angle Through Hole | 125 °C | -40 C | Female | Single | ||||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Solder | 0.25 Ám | 10 Áin | Black | 50 | Non Specified - Dual Edge | Copper Alloy | 2 | Gold | 25 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Board Edge Straddle Mount | 125 °C | -40 C | Female | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Card Extender | ||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Solder | Black | 50 | Non Specified - Dual Edge | Copper Alloy | 2 | Tin | 25 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Board Edge Straddle Mount | 125 °C | -40 C | Female | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Card Extender | ||||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Solder | 0.25 Ám | 10 Áin | Black | 50 | Non Specified - Dual Edge | Copper Alloy | 2 | Gold | 25 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Board Edge Straddle Mount | 125 °C | -40 C | Female | Dual | Card Extender | |||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Wire Wrap | 0.25 Ám | 10 Áin | Black | 50 | Non Specified - Dual Edge | Copper Alloy | 2 | Gold | 25 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Through Hole | 125 °C | -40 C | Female | Dual | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | |
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Solder | Black | 50 | Non Specified - Dual Edge | Copper Alloy | 2 | Tin | 25 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Board Edge Straddle Mount | 125 °C | -40 C | Female | Dual | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 " | Card Extender | ||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Solder | Black | 50 | Non Specified - Dual Edge | Copper Alloy | 2 | Tin | 25 | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Through Hole | 125 °C | -40 C | Female | Dual |
