FGN.3F Series

Manufacturer: LEMO

Catalog

CONN PLUG MALE 22POS GOLD CRIMP

Part	Fastening Type	Shell Material	Shell Size - Insert	Material Flammability Rating	Contact Finish - Mating	Primary Material	Color	Insert Material	Orientation	Cable Opening	Cable Opening	Applications	Contact Material	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Connector Type	Mounting Type	Shielding	Current Rating (Amps)	Termination	Number of Positions
LEMO FGN.3F.322.XLCS	Push-Pull	Aluminum Alloy	322	UL94 V-0	Gold	Metal	Gray	Polyetheretherketone (PEEK)	N (Normal)	0.63 in	16 mm	Aerospace	Brass	39.4 µin	1 µm	Nickel	-15 °C	200 °C	IP67 - Dust Tight Waterproof	Plug Male Pins	Free Hanging (In-Line)	Shielded	5.5 Amps	Crimp	22

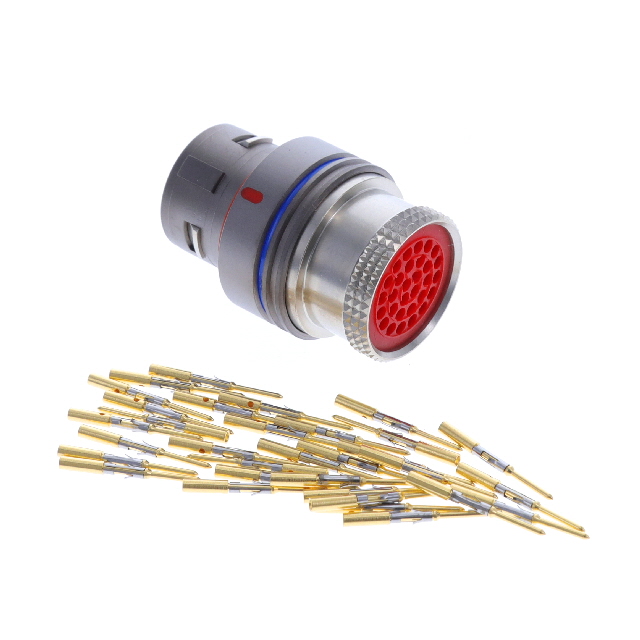

LEMO FGN.3F.330.XLC	Push-Pull	Aluminum Alloy	330	UL94 V-0	Gold	Metal	Gray	Polyetheretherketone (PEEK)	N (Normal)	0.63 in	16 mm	Aerospace	Brass	39.4 µin	1 µm	Nickel	-15 °C	200 °C	IP67 - Dust Tight Waterproof	Plug Male Pins	Free Hanging (In-Line)	Shielded	3.5 A	Crimp	30
LEMO FGN.3F.330.XLCS	Push-Pull	Aluminum Alloy	330	UL94 V-0	Gold	Metal	Gray	Polyetheretherketone (PEEK)	N (Normal)	0.63 in	16 mm	Aerospace	Brass	39.4 µin	1 µm	Nickel	-15 °C	200 °C	IP67 - Dust Tight Waterproof	Plug Male Pins	Free Hanging (In-Line)	Shielded	3.5 A	Crimp	30
LEMO FGN.3F.322.XLBS	Push-Pull	Aluminum Alloy	322	UL94 V-0	Gold	Metal	Gray	Polyetheretherketone (PEEK)	N (Normal)	0.63 in	16 mm	Aerospace	Brass	39.4 µin	1 µm	Nickel	-15 °C	200 °C	IP67 - Dust Tight Waterproof	Plug Male Pins	Free Hanging (In-Line)	Shielded	5.5 Amps	Crimp	22
LEMO FGN.3F.330.CLC	Push-Pull	Brass	330	UL94 V-0	Gold	Metal	Silver	Polyetheretherketone (PEEK)	N (Normal)	0.63 in	16 mm	Aerospace	Brass	39.4 µin	1 µm	Chrome	-55 C	200 °C	IP67 - Dust Tight Waterproof	Plug Male Pins	Free Hanging (In-Line)	Shielded	3.5 A	Crimp	30
LEMO FGN.3F.330.XLCF	Push-Pull	Aluminum Alloy	330	UL94 V-0	Gold	Metal	Gray	Polyetheretherketone (PEEK)	N (Normal)	0.63 in	16 mm	Aerospace	Brass	39.4 µin	1 µm	Nickel	-15 °C	200 °C	IP67 - Dust Tight Waterproof	Plug Male Pins	Free Hanging (In-Line)	Shielded	3.5 A	Crimp	30
LEMO FGN.3F.322.XLC	Push-Pull	Aluminum Alloy	322	UL94 V-0	Gold	Metal	Gray	Polyetheretherketone (PEEK)	N (Normal)	0.63 in	16 mm	Aerospace	Brass	39.4 µin	1 µm	Nickel	-15 °C	200 °C	IP67 - Dust Tight Waterproof	Plug Male Pins	Free Hanging (In-Line)	Shielded	5.5 Amps	Crimp	22
