ANR58 Series
Manufacturer: OptiFuse
Beta
⌘K
FUSE AUTO 1A 250VAC 58VDC
| Part | DC Cold Resistance | Mounting Type | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Fuse Type | Response Time | Breaking Capacity @ Rated Voltage | Voltage Rating - DC | Melting I²t | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Package / Case | Approval Agency | Color | Melting I˛t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 OptiFuse | 100 mOhms | Requires Holder | 1 A | 125 °C | -40 C | Automotive | Fast Blow | 1 kA | 58 VDC | 2.3 | 5 mm | 0.197 " | 13.5 mm | 0.531 in | 19 mm | 0.748 in | Blade ATO/ATC | cURus UL 248 | Black | |

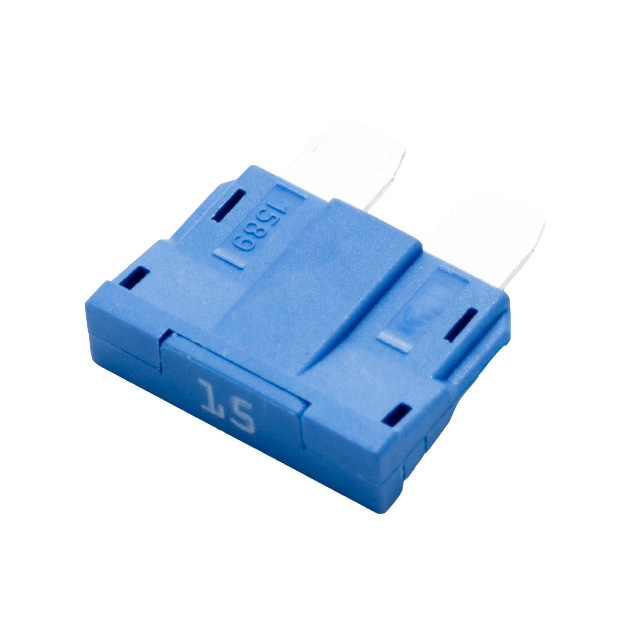

 OptiFuse | 0.004 Ohms | Requires Holder | 15 A | 125 °C | -40 C | Automotive | Fast Blow | 1 kA | 58 VDC | 270 | 5 mm | 0.197 " | 13.5 mm | 0.531 in | 19 mm | 0.748 in | Blade ATO/ATC | cURus UL 248 | Blue | |
 OptiFuse | Requires Holder | 12 Amps | 125 °C | -40 C | Automotive | Fast Blow | 1 kA | 58 VDC | 5 mm | 0.197 " | 13.5 mm | 0.531 in | 19 mm | 0.748 in | Blade ATO/ATC | cURus UL 248 | Light Pink | |||

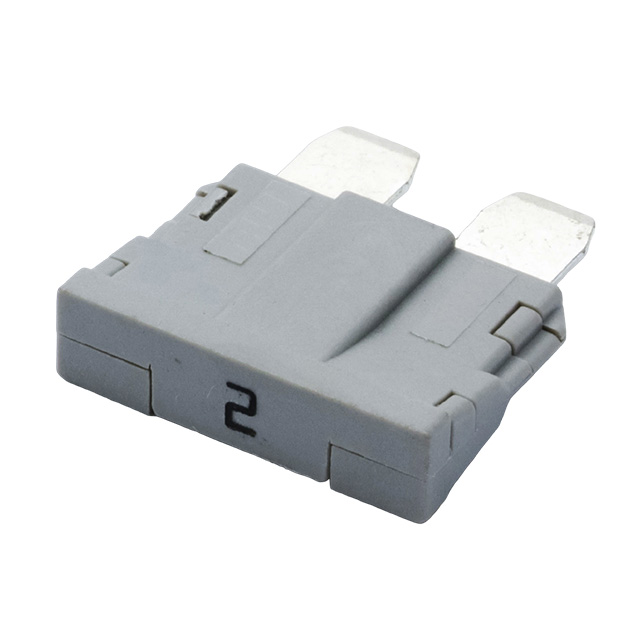

 OptiFuse | 0.043 Ohms | Requires Holder | 2 A | Automotive | Fast Blow | 1 kA | 58 VDC | 9.6 I²t | 5 mm | 0.197 " | 13.5 mm | 0.531 in | 19 mm | 0.748 in | Blade ATO/ATC | Gray | 9.6 | |||

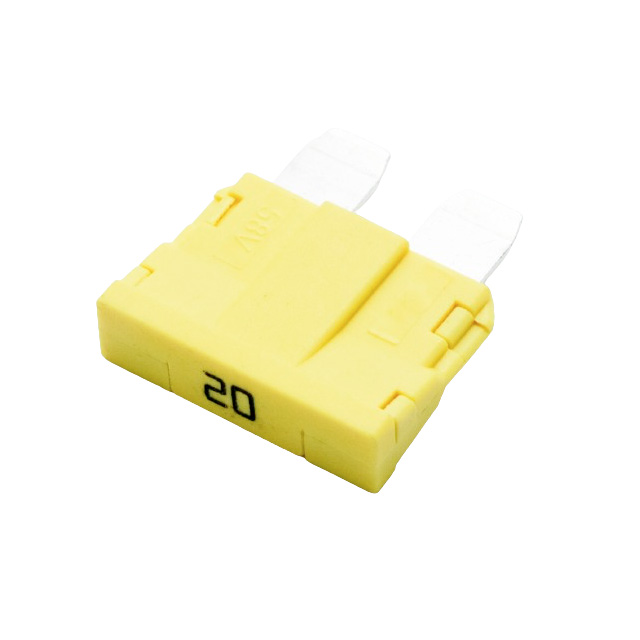

 OptiFuse | 0.003 Ohms | Requires Holder | 20 A | 125 °C | -40 C | Automotive | Fast Blow | 1 kA | 58 VDC | 360 | 5 mm | 0.197 " | 13.5 mm | 0.531 in | 19 mm | 0.748 in | Blade ATO/ATC | cURus UL 248 | Yellow | |

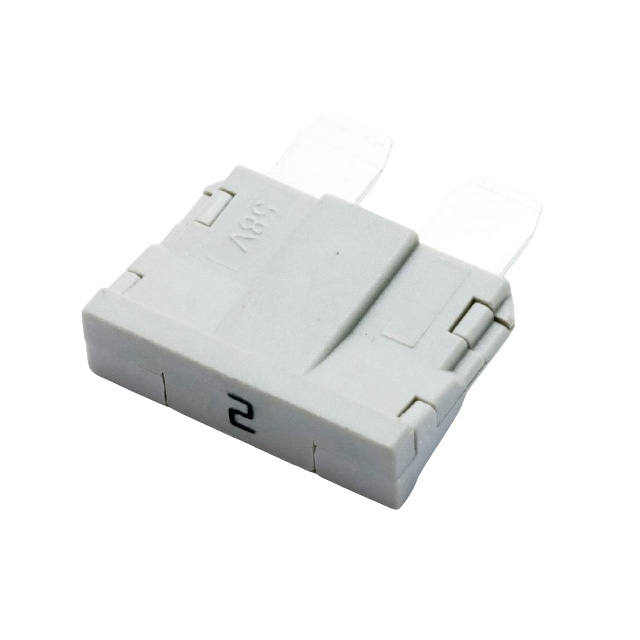

 OptiFuse | 0.043 Ohms | Requires Holder | 2 A | 125 °C | -40 C | Automotive | Fast Blow | 1 kA | 58 VDC | 9.6 I²t | 5 mm | 0.197 " | 13.5 mm | 0.531 in | 19 mm | 0.748 in | Blade ATO/ATC | cURus UL 248 | Gray | |

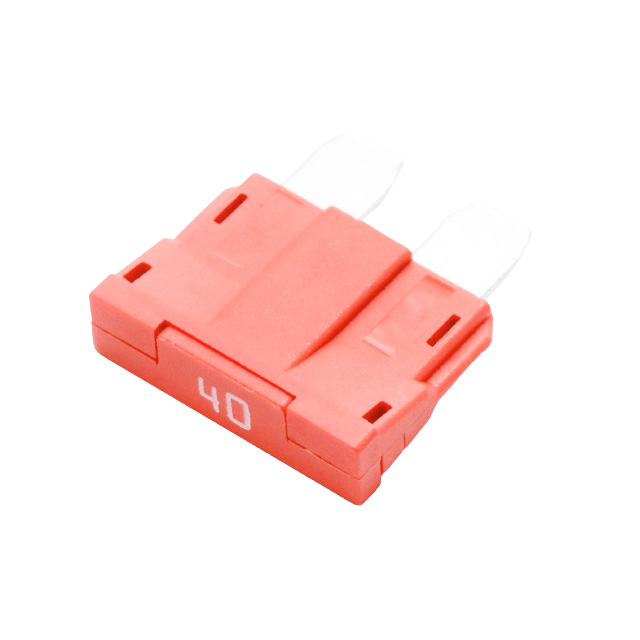

 OptiFuse | 1.25 Ohms | Requires Holder | 40 A | 125 °C | -40 C | Automotive | Fast Blow | 1 kA | 58 VDC | 3200 I²t | 5 mm | 0.197 " | 13.5 mm | 0.531 in | 19 mm | 0.748 in | Blade ATO/ATC | cURus UL 248 | 3200 | |

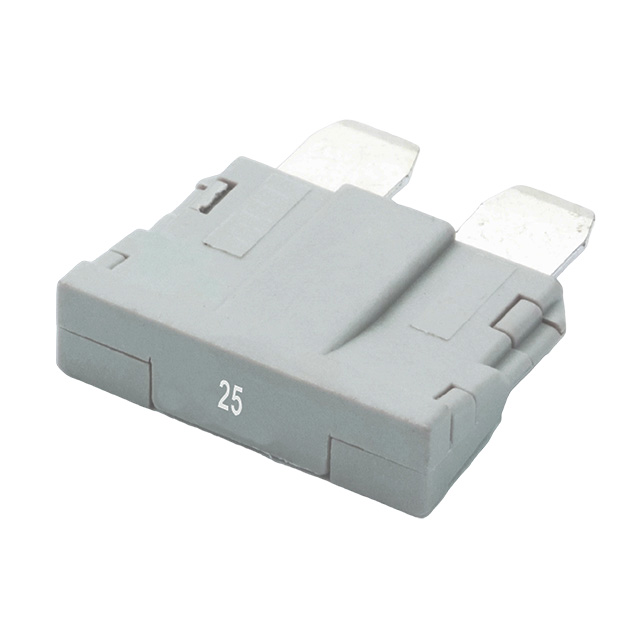

 OptiFuse | 1.9 Ohms | Requires Holder | 25 A | 125 °C | -40 C | Automotive | Fast Blow | 1 kA | 58 VDC | 813 | 5 mm | 0.197 " | 13.5 mm | 0.531 in | 19 mm | 0.748 in | Blade ATO/ATC | cURus UL 248 | Clear | |

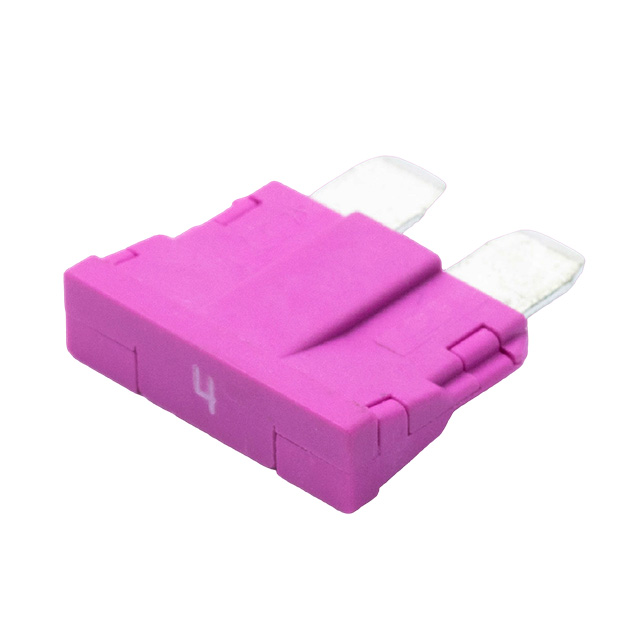

 OptiFuse | 0.022 Ohms | Requires Holder | 4 A | 125 °C | -40 C | Automotive | Fast Blow | 1 kA | 58 VDC | 36.8 I²t | 5 mm | 0.197 " | 13.5 mm | 0.531 in | 19 mm | 0.748 in | Blade ATO/ATC | cURus UL 248 | Pink | |
 OptiFuse | Requires Holder | 16 A | 125 °C | -40 C | Automotive | Fast Blow | 1 kA | 58 VDC | 5 mm | 0.197 " | 13.5 mm | 0.531 in | 19 mm | 0.748 in | Blade ATO/ATC | cURus UL 248 | Light Green |
