1437531 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

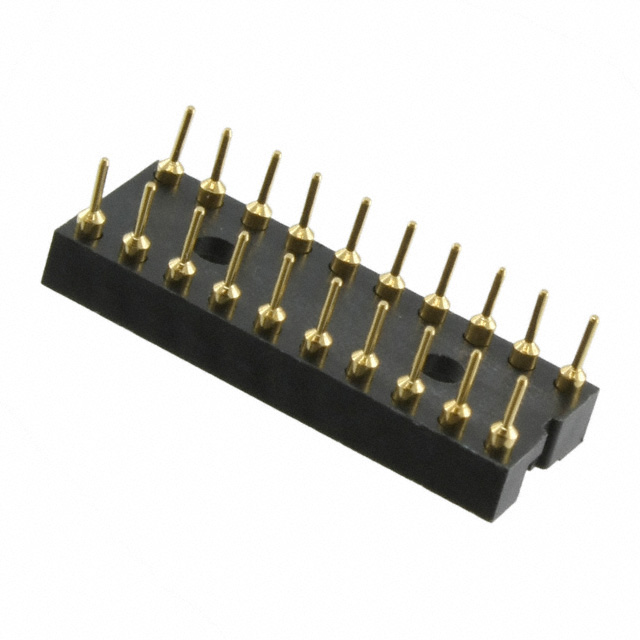

CONN IC DIP SOCKET 20POS GOLD
| Part | Termination Post Length | Termination Post Length | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Pitch - Post | Pitch - Post | Features | Termination | Contact Material - Mating | Mounting Type | Contact Material - Post [custom] | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Type | Type | Type | Number of Positions or Pins (Grid) | Contact Finish - Mating | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.125 in | 3.18 mm | UL94 V-0 | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Closed Frame | Solder | Copper Alloy | Through Hole | Copper Alloy | Gold | -55 C | 125 °C | 7.62 mm | 0.3 in | DIP | 20 | Gold | ||
 TE Connectivity AMP Connectors | 0.125 in | 3.18 mm | UL94 V-0 | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Closed Frame | Wire Wrap | Copper Alloy | Through Hole | Copper Alloy | Gold | -55 C | 125 °C | 7.62 mm | 0.3 in | DIP | 16 | Gold | 2 | 8 |
