TPA3110D2-Q1 Series

15-W stereo, 30-W mono, 8- to 26-V supply, analog input Class-D audio amplifier w/ SpeakerGuard™

Catalog

15-W stereo, 30-W mono, 8- to 26-V supply, analog input Class-D audio amplifier w/ SpeakerGuard™

Part	Contents	Supplied Contents	Board Type	Output Type	Max Output Power x Channels @ Load [x]	Max Output Power x Channels @ Load	Max Output Power x Channels @ Load [custom]	Utilized IC / Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Grade	Package / Case [custom]	Package / Case	Package / Case [custom]	Qualification	Supplier Device Package	Mounting Type	Features	Type
Texas Instruments TPA3110D2EVM	Board(s)	Board(s)	Fully Populated	2-Channel (Stereo)	2	15 W	8 Ohm	TPA3110D2	26 V	8 V

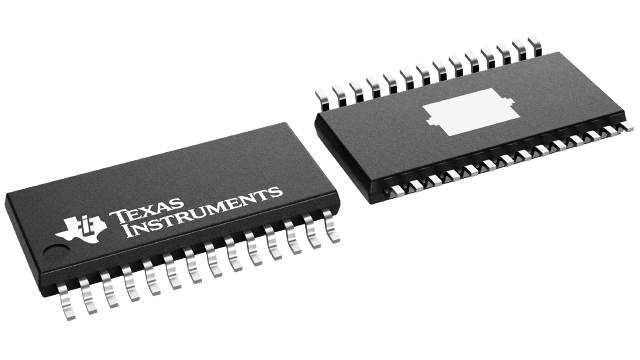

Texas Instruments TPA3110D2QPWPRQ1				2-Channel (Stereo)	2	15 W	8 Ohm		26 V	8 V	85 °C	-40 °C	Automotive	4.4 mm	28-PowerTSSOP	0.173 "	AEC-Q100	28-HTSSOP	Surface Mount	Depop Differential Inputs Short-Circuit and Thermal Protection Shutdown	Class D
Texas Instruments TPA3110D2PWP				2-Channel (Stereo)	2	15 W	8 Ohm		26 V	8 V	85 °C	-40 °C		4.4 mm	28-PowerTSSOP	0.173 "		28-HTSSOP	Surface Mount	Differential Inputs Short-Circuit and Thermal Protection Shutdown	Class D
Texas Instruments TPA3110D2PWPR				2-Channel (Stereo)	2	15 W	8 Ohm		26 V	8 V	85 °C	-40 °C		4.4 mm	28-PowerTSSOP	0.173 "		28-HTSSOP	Surface Mount	Differential Inputs Short-Circuit and Thermal Protection Shutdown	Class D

Catalog

15-W stereo, 30-W mono, 8- to 26-V supply, analog input Class-D audio amplifier w/ SpeakerGuard™

Key Features

• Qualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to 125°CAmbient Operating Temperature RangeDevice HBM ESD Classification Level H2Device CDM ESD Classification Level C215-W/ch Into 8-Ω Loads at 10% THD+N From a16-V Supply10-W/ch Into 8-Ω Loads at 10% THD+N From a13-V Supply30-W Into a 4-Ω Mono Load at 10% THD+N From a16-V Supply90% Efficient Class-D Operation Eliminates Needfor Heat SinksWide Supply Voltage Range Allows Operationfrom 8 V to 26 VFilter-Free OperationSpeakerGuard™ Protection Circuitry IncludesAdjustable Power Limiter Plus DC ProtectionFlow Through Pin Out Facilitates Easy BoardLayoutRobust Pin-to-Pin Short-Circuit Protection andThermal Protection with Auto Recovery OptionExcellent THD+N and Pop-Free PerformanceFour Selectable Fixed Gain SettingsDifferential InputsQualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to 125°CAmbient Operating Temperature RangeDevice HBM ESD Classification Level H2Device CDM ESD Classification Level C215-W/ch Into 8-Ω Loads at 10% THD+N From a16-V Supply10-W/ch Into 8-Ω Loads at 10% THD+N From a13-V Supply30-W Into a 4-Ω Mono Load at 10% THD+N From a16-V Supply90% Efficient Class-D Operation Eliminates Needfor Heat SinksWide Supply Voltage Range Allows Operationfrom 8 V to 26 VFilter-Free OperationSpeakerGuard™ Protection Circuitry IncludesAdjustable Power Limiter Plus DC ProtectionFlow Through Pin Out Facilitates Easy BoardLayoutRobust Pin-to-Pin Short-Circuit Protection andThermal Protection with Auto Recovery OptionExcellent THD+N and Pop-Free PerformanceFour Selectable Fixed Gain SettingsDifferential Inputs

Description

The TPA3110D2 is a 15-W (per channel) efficient, Class-D audio power amplifier for driving bridged-tied stereo speakers. Advanced EMI Suppression Technology enables the use of inexpensive ferrite bead filters at the outputs while meeting EMC requirements. SpeakerGuard™ speaker protection circuitry includes an adjustable power limiter and a DC detection circuit. The adjustable power limiter allows the user to set a "virtual" voltage rail lower than the chip supply to limit the amount of current through the speaker. The DC detect circuit measures the frequency and amplitude of the PWM signal and shuts off the output stage if the input capacitors are damaged or shorts exist on the inputs. The TPA3110D2 can drive stereo speakers as low as 4 Ω. The high efficiency of the TPA3110D2, 90%, eliminates the need for an external heat sink when playing music. The outputs are also fully protected against shorts to GND, VCC, and output-to-output. The short-circuit protection and thermal protection includes an auto-recovery feature. The TPA3110D2 is a 15-W (per channel) efficient, Class-D audio power amplifier for driving bridged-tied stereo speakers. Advanced EMI Suppression Technology enables the use of inexpensive ferrite bead filters at the outputs while meeting EMC requirements. SpeakerGuard™ speaker protection circuitry includes an adjustable power limiter and a DC detection circuit. The adjustable power limiter allows the user to set a "virtual" voltage rail lower than the chip supply to limit the amount of current through the speaker. The DC detect circuit measures the frequency and amplitude of the PWM signal and shuts off the output stage if the input capacitors are damaged or shorts exist on the inputs. The TPA3110D2 can drive stereo speakers as low as 4 Ω. The high efficiency of the TPA3110D2, 90%, eliminates the need for an external heat sink when playing music. The outputs are also fully protected against shorts to GND, VCC, and output-to-output. The short-circuit protection and thermal protection includes an auto-recovery feature.
