74LCX273 Series
Manufacturer: Toshiba Semiconductor and Storage
Beta
⌘K

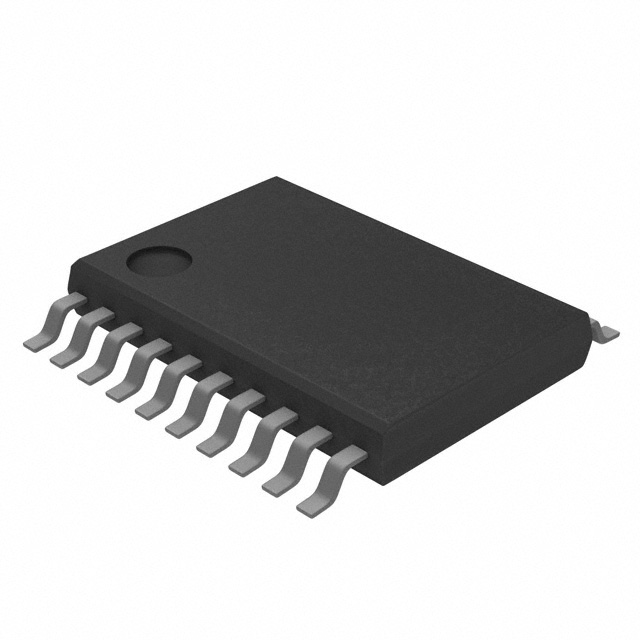

GENERAL PURPOSE LOGIC ICS, OCTAL D-TYPE FLIP-FLOP, TSSOP20B
| Part | Package / Case | Package / Case [y] | Package / Case [x] | Function | Voltage - Supply [Min] | Voltage - Supply [Max] | Trigger Type | Max Propagation Delay @ V, Max CL | Output Type | Number of Bits per Element [custom] | Number of Elements | Mounting Type | Input Capacitance | Type | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Clock Frequency | Current - Output High, Low [custom] | Current - Output High, Low [custom] | Clock Frequency [custom] | Current - Quiescent (Iq) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Toshiba Semiconductor and Storage | 20-TSSOP | 4.4 mm | 0.173 " | Reset | 1.65 V | 3.6 V | Positive Edge | 9.5 ns | Non-Inverted | 8 | 1 | Surface Mount | 7 pF | D-Type | 20-TSSOPB | 125 °C | -40 °C | 135 MHz | 24 mA | 24 mA | ||
 Toshiba Semiconductor and Storage | 20-TSSOP | 4.4 mm | 0.173 " | Reset | 1.65 V | 3.6 V | Positive Edge | 8.5 ns | Non-Inverted | 8 | 1 | Surface Mount | 7 pF | D-Type | 20-TSSOP | 85 C | -40 ¯C | 24 mA | 24 mA | 150 MHz | 10 µA | |
Toshiba Semiconductor and Storage | 20-TSSOP | 4.4 mm | 0.173 " | Reset | 1.65 V | 3.6 V | Positive Edge | 8.5 ns | Non-Inverted | 8 | 1 | Surface Mount | 7 pF | D-Type | 20-TSSOP | 85 C | -40 ¯C | 24 mA | 24 mA | 150 MHz | 10 µA |
