SD125 Series

Catalog

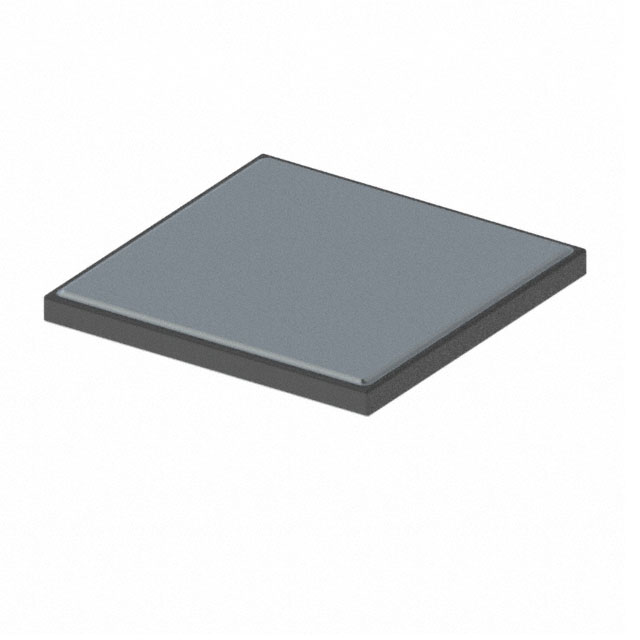

DIODE SCHOTTKY 45V 15A DIE

Part	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Speed	Voltage - Forward (Vf) (Max) @ If	Package / Case	Capacitance @ Vr, F	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io)	Technology	Current - Reverse Leakage @ Vr	Mounting Type	Voltage - Forward (Vf) (Max) @ If [Max]
SMC Diode Solutions SD125SB45A.T1	175 ░C	-55 °C	200 mA 500 ns	640 mV	Die	800 pF	Die	45 V	15 A	Schottky	400 µA	Surface Mount
SMC Diode Solutions SD125SB45A.T2	175 ░C	-55 °C	200 mA 500 ns	640 mV	Die	800 pF	Die	45 V	15 A	Schottky	400 µA	Surface Mount
SMC Diode Solutions SD125SA45B.T	150 °C	-55 °C	200 mA 500 ns		Die	800 pF	Die	45 V	15 A	Schottky	1.5 mA	Surface Mount	560 mV
SMC Diode Solutions SD125SCU100A.T	200 C	-55 °C	200 mA 500 ns	840 mV	Die	600 pF	Die	100 V	15 A	Schottky	350 µA	Surface Mount
SMC Diode Solutions SD125SA45B.T1	150 °C	-55 °C	200 mA 500 ns		Die	800 pF	Die	45 V	15 A	Schottky	1.5 mA	Surface Mount	560 mV
SMC Diode Solutions SD125SB45B.T2	175 ░C	-55 °C	200 mA 500 ns	640 mV	Die	800 pF	Die	45 V	15 A	Schottky	400 µA	Surface Mount
SMC Diode Solutions SD125SC150B.T2	200 C	-55 °C	200 mA 500 ns	890 mV	Die	500 pF	Die		15 A	Schottky	500 µA	Surface Mount
SMC Diode Solutions SD125SC150B.T	200 C	-55 °C	200 mA 500 ns	890 mV	Die	500 pF	Die		15 A	Schottky	500 µA	Surface Mount
SMC Diode Solutions SD125SC150A.T2	200 C	-55 °C	200 mA 500 ns	890 mV	Die	500 pF	Die		15 A	Schottky	500 µA	Surface Mount
SMC Diode Solutions SD125SC200B.T2	200 C	-55 °C	200 mA 500 ns	920 mV	Die	300 pF	Die	200 V	15 A	Schottky	350 µA	Surface Mount
