726-056 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 56POS 0.125

Part	Material - Insulation	Termination Rows [custom]	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Termination	Gender	Number of Rows [custom]	Pitch	Pitch	Card Type	Number of Positions	Contact Type	Color	Number of Positions/Bay/Row	Read Out	Contact Finish	Contact Material	Termination Rows	Number of Rows
EDAC Inc. 726-056-545-201	Polyester Thermoplastic	2	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	30 Áin	0.76 Ám	Press-Fit Wire Wrap	Female	2	3.18 mm	0.125 in	Non Specified - Dual Edge	56	Cantilever	Black	28	Dual	Gold	Copper Alloy

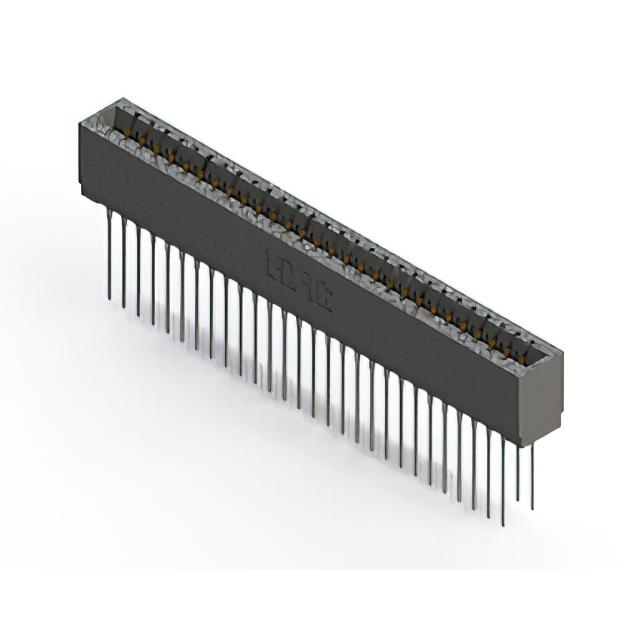

EDAC Inc. 726-056-553-201	Polyester Thermoplastic	2	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	30 Áin	0.76 Ám	Press-Fit Wire Wrap	Female	2	3.18 mm	0.125 in	Non Specified - Dual Edge	56	Cantilever	Black	28	Dual	Gold	Copper Alloy
EDAC Inc. 726-056-520-201	Polyester Thermoplastic	2	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	30 Áin	0.76 Ám	Press-Fit	Female	2	3.18 mm	0.125 in	Non Specified - Dual Edge	56	Cantilever	Black	28	Dual	Gold	Copper Alloy
EDAC Inc. 726-056-540-101	Polyester Thermoplastic		Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	30 Áin	0.76 Ám	Press-Fit Wire Wrap	Female		3.18 mm	0.125 in	Non Specified - Single Edge	56	Cantilever	Black	56	Single	Gold	Copper Alloy	1	1
EDAC Inc. 726-056-527-201	Polyester Thermoplastic	2	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	30 Áin	0.76 Ám	Press-Fit	Female	2	3.18 mm	0.125 in	Non Specified - Dual Edge	56	Cantilever	Black	28	Dual	Gold	Copper Alloy
EDAC Inc. 726-056-545-101	Polyester Thermoplastic		Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	30 Áin	0.76 Ám	Press-Fit Wire Wrap	Female		3.18 mm	0.125 in	Non Specified - Single Edge	56	Cantilever	Black	56	Single	Gold	Copper Alloy	1	1
EDAC Inc. 726-056-525-201	Polyester Thermoplastic	2	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	30 Áin	0.76 Ám	Press-Fit	Female	2	3.18 mm	0.125 in	Non Specified - Dual Edge	56	Cantilever	Black	28	Dual	Gold	Copper Alloy
EDAC Inc. 726-056-541-101	Polyester Thermoplastic		Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	30 Áin	0.76 Ám	Press-Fit Wire Wrap	Female		3.18 mm	0.125 in	Non Specified - Single Edge	56	Cantilever	Black	56	Single	Gold	Copper Alloy	1	1

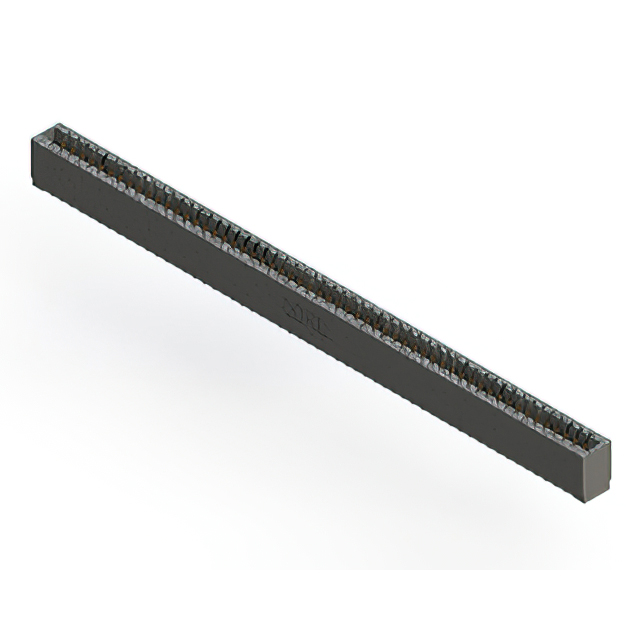

EDAC Inc. 726-056-520-101	Polyester Thermoplastic		Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	30 Áin	0.76 Ám	Press-Fit	Female		3.18 mm	0.125 in	Non Specified - Single Edge	56	Cantilever	Black	56	Single	Gold	Copper Alloy	1	1
EDAC Inc. 726-056-540-201	Polyester Thermoplastic	2	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	30 Áin	0.76 Ám	Press-Fit Wire Wrap	Female	2	3.18 mm	0.125 in	Non Specified - Dual Edge	56	Cantilever	Black	28	Dual	Gold	Copper Alloy
